BOSCH REXROTH
R901254906

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

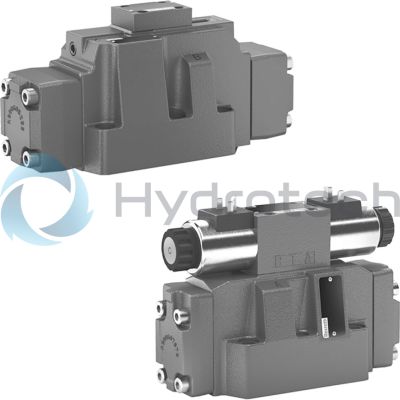

The Bosch Rexroth 4WEH16Y7X/6EG24N9EK4/B10P45 (R901254906) is a high-performance industrial hydraulic valve designed for reliable operation and precise control of oil flow direction in hydraulic systems. This valve is characterized by its size Y, which denotes its physical dimensions according to the manufacturer's specification. It features an internal pilot oil supply and external pilot oil return, ensuring efficient operation. The spool valve is pilot-operated with a spool symbol Y, indicating the specific function of the valve in controlling hydraulic flow. It can withstand a maximum pressure as specified by Bosch Rexroth, ensuring durability and reliability under demanding conditions. The electrical connection for this model is facilitated through a connector pole PE in accordance with EN standards, which provides secure and stable electrical connectivity for the solenoid actuation. This model is solenoid-actuated, meaning it utilizes an electromagnetic solenoid for its actuation mechanism. The actuation type involves an electrical signal that engages the solenoid to switch positions, thereby controlling the flow of hydraulic fluid. The valve has multiple switching positions, allowing for versatile application within hydraulic circuits. For installation purposes, the 4WEH16Y7X/6EG24N9EK4/B10P45 valve offers subplate mounting with a connection diagram that complies with both NFPA T.. R D SizeCETOP D and ISO standards. This ensures compatibility with a wide range of hydraulic systems and simplifies integration into existing setups. The valve operates at a supply voltage of 24 VDC and features NBR seals compatible with various types of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Its design allows for maximum flow control within a system while maintaining efficiency. In summary, this Bosch Rexroth spool valve is engineered to provide precise control over hydraulic systems with robust construction and reliable solenoid actuation suitable for various industrial applications.
