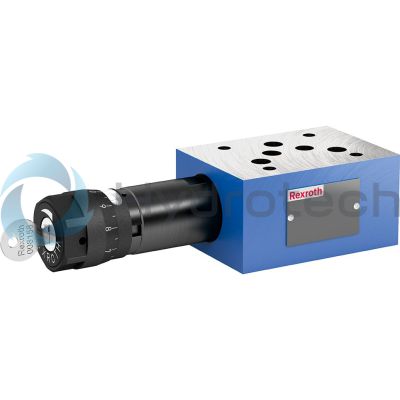

The Bosch Rexroth Z2DB10DC2-2X/200V (R901233033) is a high-performance industrial hydraulic valve designed for reliable pressure relief up to its setting value. This direct-actuated valve features a spool symbol A T, B T, and is mechanically actuated, ensuring precise control in various applications. With a maximum pressure of 350 bar and capable of handling a maximum flow of 200 l/min, this valve is suitable for demanding hydraulic systems. The Z2DB10DC2-2X/200V comes with FKM seals and is compatible with multiple types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. Its robust design includes a housing with seat and control spool that operates noiselessly and with minimal leakage. The seat design provides resistance against oil contamination while the integrated damping ensures stable behavior even when flow rates increase. This model is equipped with an adjustment type that allows for precise setting of system pressure which is maintained by the control spool opening when pressure exceeds the set value. The fluid then flows from channel P to channel T to limit pressure effectively. For monitoring purposes, the MP version allows system pressure to be recorded via a measuring port. The Bosch Rexroth Z2DB10DC2-2X/200V conforms to ISO standards in terms of porting patterns but designates ports TA and TB uniquely in its datasheet. It offers various adjustment types such as spindle with hexagon, rotary knob or lockable rotary knob with scale for ease of use. Additionally, it features corrosion protection for enhanced durability in harsh environments. With its versatile circuit options and robust construction, this sandwich plate valve ensures consistent performance in industrial hydraulic systems requiring precise pressure management.
Size 10, symbol A - T and B - T, with manual actuation
Industrial hydraulic valve in a high performance range. Reliable pressure limitation to setting value
Unpacked Weight: 3.000 kg
Pressure valves of type ZDB10D and Z2DB10D are direct operated pressure relief valves in sandwich plate design.
The valves basically consist of housing (1) with seat (2) and control spool (3). The system pressure is set via the adjustment type (4).
The valves are closed in their rest position and protect a hydraulic system and its components against excessive pressures.
These valves respond quickly, noiselessly and in a virtually leakage-free manner. Thanks to the seat design, they are resistant against oil contamination. The integrated damping of the control spool (3) ensures extremely stable behavior and a low pressure increase with increasing flow.
In the state as delivered, the valves are set to the minimum possible pressure. The system pressure applied to channel P acts on the control spool (3). If the system pressure increases above the set value, the control spool (3) opens and the hydraulic fluid flows from channel P in channel T. This limits the system pressure to the set value.
For version “MP”, the set system pressure can be recorded and monitored using a pressure load cell at the measuring port (5) (see dimensions)
Type ZDB 10 DP2..MP…
Notice:
Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet.
| On/off valve |
| Pressure relief valve |
| Spindle with hexagon |
| Maximum flow 120 l/min |
| Maximum operating pressure 350 bar |
| Size 10 |
| Component series 2X |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | A – T and B – T |
| Max. pressure | 350 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | with manual actuation |
| Size | 10 |
| Max. flow | 120 |
| Type of connection | Sandwich plate |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D05 |
| Size_CETOP | D05 |
| Connection diagram | ISO 4401-05-04-0-05 |
| Number of switching positions | 4 |
| Weight | 3.000 |
| Seals | FKM |
| Hydraulic fluid | HL,HLP,HETG,HEES,HEPG,HFDU |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
||
|
Z |
DB |
10 |
D |
– |
2X |
/ |
|
01 |
Sandwich plate valve |
Z |
|
02 |
1 pressure valve cartridge (only with version “A”, “B” and “P”) |
no code |
|
2 pressure valve cartridges (only with version “C” and “D”) |
2 |
|
|
03 |
Pressure relief valve |
DB |
|
04 |
Size 10 |
10 |
|
05 |
Direct operated |
D |
|
Relief function from – to: |
||
|
06 |
P – T |
P |
|
A – T |
A |
|
|
B – T |
B |
|
|
A – T and B – T |
C |
|
|
A – B and B – A (for possible adjustment types/pressure ratings, see below) |
D |
|
|
Adjustment type |
||
|
07 |
Rotary knob |
1 |
|
Spindle with hexagon |
2 |
|
|
Lockable rotary knob with scale 1) |
3 |
|
|
08 |
Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) |
2X |
|
Pressure rating |
||
|
09 |
Set pressure up to 50 bar |
50 |
|
Set pressure up to 100 bar |
100 |
|
|
Set pressure up to 200 bar |
200 |
|
|
Set pressure up to 350 bar |
350 |
|
|
Pressure measuring port G1/4 |
||
|
10 |
Without pressure measuring port |
no code |
|
With pressure measuring port in port P (version “P” only) |
MP |
|
|
Corrosion resistance |
||
|
11 |
None |
no code |
|
Improved corrosion protection (240 h salt spray test according to EN ISO 9227); (only version "2") |
J3 |
|
|
Seal material |
||
|
12 |
NBR seals |
no code |
|
FKM seals |
V |
|
|
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) |
||
|
Pilot oil duct |
||
|
13 |
None |
no code |
|
Via pilot oil bores X and Y |
S030 |
|
| 1) | Key with material no. R900008158 is included in the scope of delivery. |
|
Version “DD” |
||||
|
Adjustment type |
Pressure rating |
|||
|
„50“ |
„100“ |
„200“ |
„350“ |
|
|
“1” and “2” |
✔ |
✔ |
✔ |
– |
|
„3“ |
✔ |
✔ |
– |
– |
Notes:
For valve types for use in potentially explosive areas, refer to data sheet 07011. Preferred types and standard units are contained in the EPS (standard price list).general
|
Type |
ZDB10D | Z2DB10D | ||
|
Weight (approx.) |
Version “1” and “2” |
2.8 kg | 2.9 g | |
|
Version "3" |
kg |
3.2 | 3.3 | |
|
Installation position |
any | |||
|
Ambient temperature range |
°C |
-15 … +80 | ||
hydraulic
|
Pressure rating |
bar |
50 | 100 | 200 | 350 | ||
|
Maximum operating pressure |
Version “P”, “A”, “B”, “C” |
Port A |
bar |
350 | |||
|
Port B |
bar |
350 | |||||
|
Port P |
bar |
350 | |||||
|
Port T 1) |
bar |
200 | |||||
|
Version “D” |
Port A 1) |
bar |
200 | ||||
|
Port B 1) |
bar |
200 | |||||
|
Port P |
bar |
350 | |||||
|
Port T |
bar |
350 | |||||
|
Return flow pressure |
Ideally depressurized to the tank. Counter pressure adds to the set pressure. | ||||||
|
Maximum set pressure |
bar |
50 | 100 | 200 | 350 | ||
|
Pressure change per rotation |
bar |
7 | 14 | 27 | 46 | ||
|
Maximum flow |
l/min |
120 | |||||
|
Hydraulic fluid |
see table | ||||||
|
Hydraulic fluid temperature range |
°C |
-15 … +80 | |||||
|
Viscosity range 2) |
mm²/s |
10 … 500 | |||||
|
Maximum admissible degree of contamination of the hydraulic fluid 3) |
Class 20/18/15 according to ISO 4406 (c) | ||||||
| 1) | Version “1” and “2”; 100 bar version “3” |
| 2) | Preferably 50 … 120 mm2/s |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
|
Mineral oils |
HL, HLP |
NBR, FKM |
DIN 51524 |
90220 |
|
|
Bio-degradable |
Insoluble in water |
HETG |
FKM |
ISO 15380 |
90221 |
|
HEES |
FKM |
||||
|
Soluble in water |
HEPG |
FKM |
ISO 15380 |
||
|
Flame-resistant |
Water-free |
HFDU (glycol base) 1) |
FKM |
ISO 12922 |
90222 |
|
HFDU (ester base) |
FKM |
||||
|
Containing water |
HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620 ) |
NBR |
ISO 12922 |
90223 |
|
|
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The ignition temperature of the hydraulic fluid used must be [si]50 K[/si][imp]90 °F[/imp] higher than the maximum solenoid surface temperature.Flame-resistant – containing water: Maximum operating pressure [si]210 bar[si][imp]3050 psi[/imp], otherwise, increased cavitation erosion Life cycle as compared to operation with mineral oil HL, HLP 30 … 100 % Maximum hydraulic fluid temperature [si]60 °C[/si][imp]140 °F[/imp]Bio-degradable and flame-resistant: If these hydraulic fluids are used, small amounts of dissolved zinc may get into the hydraulic system. |
|||||
| 1) | Not recommended for corrosion-protected version "J3" (contains zinc) |
For applications outside these parameters, please consult us!
(measured with HLP46, ϑOil = 40 ±5 °C)
∆p-qV characteristic curves
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 350 bar
Version “P” (example with “MP”)
Version "A"
Version "B"
Version "C"
Version “D”
|
➀ |
component side |
|
➁ |
plate side |
Notice:
Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. Version "SO30” is shown. The standard version does not have ports X and Y.Version “P” and “A”
Dimensions in mm
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (“SO30” version) |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (version “SO30”) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type “2” (spindle with external hexagon SW10 and lock nut SW24) |
|
4 |
Adjustment type "3" |
|
5 |
Valve mounting bores |
|
6 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
7 |
Space required to remove the key |
|
8 |
Measuring port G1/4 (SW6 internal hexagon, tightening torque MA = 30 Nm ±10 %) |
|
9 |
Protective cap (separate order, see accessories) |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notes:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30” is shown. The standard version does not have ports X and Y.Version "B"
Dimensions in mm
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (“SO30” version) |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (version “SO30”) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type “2” (spindle with external hexagon SW10 and lock nut SW24) |
|
4 |
Adjustment type "3" |
|
5 |
Valve mounting bores |
|
6 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
7 |
Space required to remove the key |
|
9 |
Protective cap (separate order, see accessories) |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notes:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30” is shown. The standard version does not have ports X and Y.Version "C" and "D"
Dimensions in mm
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (“SO30” version) |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (version “SO30”) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type “2” (spindle with external hexagon SW10 and lock nut SW24) |
|
4 |
Adjustment type "3" |
|
5 |
Valve mounting bores |
|
6 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
7 |
Space required to remove the key |
|
9 |
Protective cap (separate order, see accessories) |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notes:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30” is shown. The standard version does not have ports X and Y.|
Denomination |
Part number |
|
Protective cap |
R900131744 |
