BOSCH REXROTH
R901208359

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

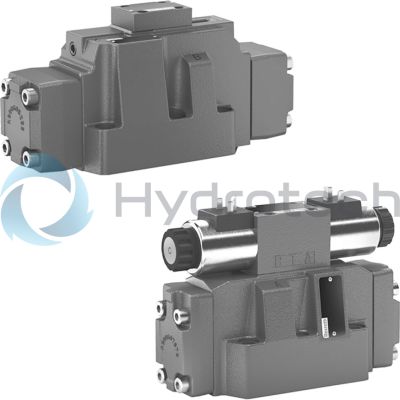

The Bosch Rexroth 4WEH16HD7X/6EG24N9ETK4/10B10 (R901208359) is a high-performance industrial hydraulic valve designed for reliable operation and precise control of oil flow direction in hydraulic systems. This valve features a spool valve with pilot operation, utilizing internal pilot oil supply and return to ensure efficient functioning. The model is equipped with a spool symbol D, indicating its specific flow path characteristics as per standard hydraulic symbol notation. With a maximum pressure capacity, the 4WEH16HD7X/6EG24N9ETK4/10B10 valve is built to withstand demanding conditions. It comes with an electrical connection that includes a connector pole PE according to EN standards, ensuring secure and stable connectivity for the solenoid actuation system. This solenoid-actuated valve allows for precise control through its electrical actuation mechanism, which operates on a supply voltage of VDC. Designed for subplate mounting, the valve adheres to NFPA T.. R D SizeCETOP D and ISO connection diagram standards, which facilitates compatibility and ease of installation in various industrial settings. It features multiple ports and has a number of switching positions that allow for versatile application within hydraulic circuits. The unit's maximum flow rate capability ensures it can handle significant fluid throughput without compromising performance. Additionally, the Bosch Rexroth 4WEH16HD7X/6EG24N9ETK4/10B10 valve is robustly constructed with NBR seals to maintain integrity when used with various types of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Its weight contributes to its stable installation and operation within system assemblies. Overall, this Bosch Rexroth valve represents a reliable solution for controlling fluid dynamics in sophisticated hydraulic systems.
