BOSCH REXROTH
R901192880

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

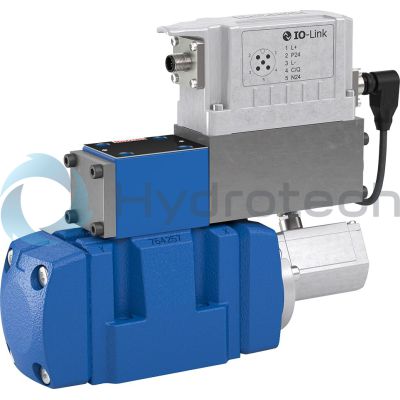

The Bosch Rexroth 4WRLE10V60L-4X/MXY/24A1 (R901192880) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction, as indicated by its spool symbol V. This pilot-operated spool valve features a linear characteristic curve and requires an external pilot oil supply and return. It is notable for its high accuracy, which is achieved through internal piston position feedback. The valve operates with a maximum pressure capacity and includes an electrical connection with a connector pole PE compliant with EN standards. The product falls under the category of integrated electronics type valves, which means it has an electrical actuation system built into the unit. This system conforms to several EU regulations, including CE for electromagnetic compatibility, RoHS Directive, and REACH Regulation. Designed for subplate mounting and following NFPA T6.5 R D SizeCETOP D and ISO connection diagram standards, the 4WRLE10V60L-4X/MXY/24A1 ensures ease of installation and compatibility with various setups. It operates on a supply voltage of 24 VDC and offers multiple switching positions to suit different operational requirements. With a nominal flow rate specification, this valve can handle significant volumes of hydraulic fluid types such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. The seals are made from NBR to ensure durability and resistance against various environmental factors. Connectivity options include analog command value input ranging from 0 to 10 volts. Overall, the Bosch Rexroth 4WRLE10V60L-4X/MXY/24A1 valve is engineered for precision control in complex hydraulic systems where high accuracy and reliability are paramount. Its comprehensive design integrates advanced electronic controls within a robust mechanical structure to deliver superior performance in industrial applications.
