BOSCH REXROTH
R901156071
$1,778.11 USD
- BOSCH REXROTH
- Material:R901156071
- Model:MULTISTATION MANI. 4HSR10-35/01C SO8 FE&
Quantity in stock: 0

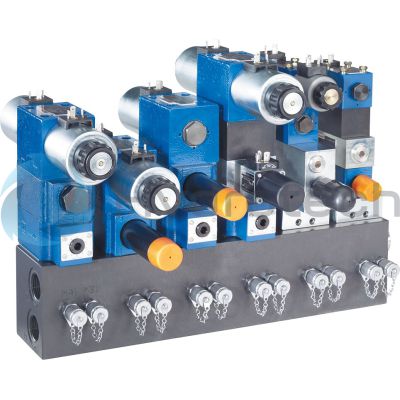

The Bosch Rexroth MULTISTATION MANI. 4HSR10-35/01C SO8 FE& (R901156071) is a sophisticated hydraulic manifold designed for compact control of valves in a vertical stacking configuration. This base element facilitates the construction of ready-for-connection controls, tailored to streamline and optimize hydraulic system assemblies. The manifold features separate actuator ports for each station, allowing for precise control and flexibility in application. With a maximum pressure capacity and a durable surface coating that adheres to DIN EN ISO standards, this product ensures reliability and longevity in demanding operational conditions. It includes common pump and tank lines for efficiency, while the port sizes for pump and return are G3/4, aligning with industry norms. The MULTISTATION MANI. 4HSR10-35/01C SO8 FE& is notable for its compact design which does not compromise on power or functionality. This makes it particularly suitable for applications where space is at a premium but performance cannot be sacrificed. The manifold's weight supports its sturdy build quality without being overly burdensome for installation. It has been engineered to work with HLP hydraulic fluid, ensuring compatibility with standard hydraulic systems. Additionally, optional measuring ports can be included in the actuator lines to provide diagnostic capabilities and enhanced monitoring of system performance. This model allows for the setup of sandwich plates and valves of size 6, facilitating customization according to specific system requirements. For even greater adaptability, mounting sandwich plates and valves of size 6 with an additional adapter plate is possible, offering further configuration options to meet diverse application needs. In summary, the Bosch Rexroth MULTISTATION MANI. 4HSR10-35/01C SO8 FE& offers a high-quality solution for efficient and reliable hydraulic control in compact spaces while providing versatility through its modular design capabilities.
Size 10, 4 valves
Compact hydraulic controls for 4 valves of size 10
Unpacked Weight: 20.72 kg
| Separate actuator ports of the stations |
| Base element for ready-for-connection controls in vertical stacking design |
| Compacter hydraulic control block |
| Common pump and tank line |
| Size 10 |
| Maximum operating pressure 315 bar |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Max. pressure | 315 |
| Surface coating | Galvanic coating DIN EN ISO 19598 |
| Port sizes pump and return | G1 |
| Productgroup ID | 9,10,11,12,13,14 |
| Connection point | lateral |
| Size | 10 |
| Length | 321 |
| Number of vertical stackings | 4 |
| Port size | G3/4 |
| Weight | 20.72 |
| Hydraulic fluid | HLP |
|
Manifold |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
||
|
HSR |
10 |
‒ |
/ |
01 |
|
Number of ready-for-connection controls in vertical stacking design |
||
|
01 |
1 Control |
1 |
|
2 controls |
2 |
|
|
3 Controls |
3 |
|
|
4 controls |
4 |
|
|
5 controls |
5 |
|
|
6 controls |
6 |
|
|
7 controls |
7 |
|
|
8 controls |
8 |
|
|
02 |
Manifold |
HSR |
|
03 |
Size 10 |
10 |
|
Component series |
||
|
04 |
Port size: A, B = G1/2; P, T = G3/4 |
15 |
|
With enlarged connection thread; port size: A, B = G3/4; P, T = G1 |
35 |
|
|
Connection thread |
||
|
05 |
Pipe thread according to ISO 228/1 |
01 |
|
Position of actuator ports |
||
|
06 |
Lateral |
C |
|
At the bottom |
D |
|
|
Version |
||
|
07 |
Standard version |
no code |
|
With measuring ports in A and B |
S08 1) |
|
|
Coating |
||
|
08 |
Phosphate coating according to DIN EN 12476 |
PHOSPHATED 2) |
|
Galvanic coating DIN 50979 |
FE//ZN8//CN/T0 |
|
|
1) Not possible with component series 25 with lateral actuator ports |
||
|
2) Standard version (manganese or zinc phosphate coating) |
||
|
Size |
10 | |
|
Material |
GGG40 | |
|
Surface coating |
Standard coating: Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants) | |
|
Operating pressure max. 1) |
bar |
315 |
| 1) | Manifold without valve fitting |
For applications outside these parameters, please consult us!
