BOSCH REXROTH
R901126712
$5,381.71 USD
- BOSCH REXROTH
- Material:R901126712
- Model:DBEBE6X-1X/315G24K31F1M
Quantity in stock: 0

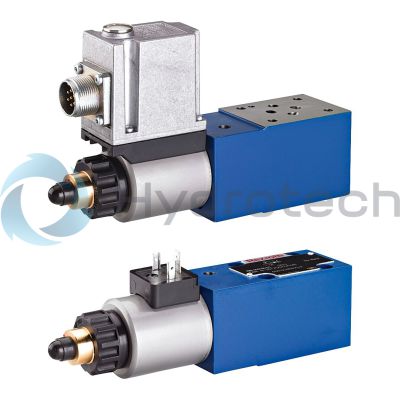

The Bosch Rexroth DBEBE6X-1X/315G24K31F1M (R901126712) is a high-performance industrial hydraulic valve designed for reliable pressure relief in response to command value signals. This pilot-operated valve features integrated electronics and a spool symbol P T, ensuring precise control and functionality. With a maximum pressure capability, it is equipped with an electrical connection consisting of a connector pole PE according to EN standards. The valve boasts a number of ports for comprehensive connectivity and utilizes an electrical type of actuation with integrated electronics, which simplifies the installation process. It is designed for subplate mounting following the ISO standard, ensuring compatibility with a wide range of systems. The supply voltage required for operation is 24 VDC, and it has been engineered to operate with one switching position. Weighing in at . kg, this Bosch Rexroth valve comes equipped with NBR seals and supports analog connectivity with a command value range of 4-20 mA. It is compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Proportional pressure relief valves like the DBEBE6X-1X/315G24K31F1M are essential for maintaining system pressure within safe limits and are characterized by their responsive performance. They offer adjustable settings via the solenoid armature's position against the compression spring, allowing for minimum hysteresis (< %), quick actuating times, and maximum pressure limitation even if the electronics were to fail. The valve's maximum operating pressure stands at bar while it can handle flow rates up to l/min. This makes it suitable for various demanding applications where precise pressure control is critical.
Size 6, P → T, integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable pressure relief to command value signal.
Unpacked Weight: 3.5 kg
Proportional pressure relief valves of type DBEBE6X are pilot control valves used for system pressure limitation. They are actuated by a position-controlled proportional solenoid with integrated electronics. Using these valves, short actuating times with low hysteresis can be achieved.
| Pilot-operated |
| Proportional pressure valve in poppet seat design |
| Component series 1X |
| Operating pressure, max. 315 bar |
| Size 6 |
| Volume flow, max. 40 l/min |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | P → T |
| Max. pressure | 315 |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 2 |
| Type of actuation | Electrical with integrated electronics |
| Size | 6 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 40 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
| Size_CETOP | D03 |
| Connection diagram | ISO 4401-03-02-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 3.5 |
| Seals | NBR |
| Connectivity | Analog, command value 4 … 20 mA |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
||
|
DBEB |
E |
6 |
X |
– |
1X |
/ |
G24 |
K31 |
M |
* |
|
01 |
Proportional pressure relief valve with inductive position transducer at the poppet |
DBEB |
|
02 |
With integrated electronics |
E |
|
03 |
Size |
6 |
|
04 |
Porting pattern according to ISO 4401-03-02-0-05 |
X |
|
05 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
Maximum pressure rating |
||
|
06 |
Up to 80 bar |
80 |
|
Up to 180 bar |
180 |
|
|
Up to 315 bar |
315 |
|
|
Supply voltage of the control electronics |
||
|
07 |
Direct voltage 24 V |
G24 |
|
Electrical connection |
||
|
08 |
Without mating connector, with connector according to DIN 43563-AM6, mating connector - separate order |
K31 |
|
Control electronics interface |
||
|
09 |
Command value input 0 ... +10 V |
A1 |
|
Command value input 4 to 20 mA / actual value output 4 to 20 mA |
F1 |
|
|
10 |
NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 |
M |
|
11 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
DBEBE6X | |
|
Size |
6 | |
|
Component series |
1X | |
|
Installation position |
any | |
|
Earth |
kg |
3.4 |
|
Ambient temperature range |
°C |
-20 … +50 |
hydraulic
|
Size |
6 | ||
|
Maximum operating pressure |
bar |
315 | |
|
Port P |
bar |
315 | |
|
Port T |
bar |
250 | |
|
Maximum set pressure |
Pressure rating 25 bar |
bar |
315 |
|
Maximum flow |
l/min |
40 | |
|
Pilot flow |
l/min |
≈ 0.6 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +70 | |
|
Viscosity range |
mm²/s |
10 … 800 | |
|
preferably |
mm²/s |
20 … 100 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 18/16/13 according to ISO 4406 (c) | ||
|
Hysteresis |
% |
≤ 1 | |
|
Manufacturing tolerance of the command value pressure characteristic curve, related to the hysteresis characteristic curve, pressure increasing |
% |
< ± 5 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
electrical
|
Type |
DBEBE6X | |
|
Duty cycle |
% |
100 |
|
Power supply |
V |
24 |
|
Supply voltage range |
V |
21 … 40 |
|
Protection class according to DIN EN 60529 |
IP65 | |
