Material:R901071385
Model:LAGERBOCK CLTA 50 CD160 PARR SCHWENKZAPF

Quantity in stock: 4

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth LAGERBOCK CLTA 50 CD160 PARR SCHWENKZAPF (R901071385) is a precision-engineered bearing block designed for robust performance and high reliability. This specific part is tailored to facilitate pivotal movement within mechanical systems, providing a stable pivot point for swiveling components. Its application is critical in scenarios where precise angular alignment and smooth rotational motion are required. The model code CLTA 50 CD160 PARR SCHWENKZAPF indicates specific design features such as the size, configuration, and compatibility with certain pivot shafts. The product's capabilities are indicative of Bosch Rexroth's commitment to quality and performance in motion control technology. Engineered for durability, the bearing block is likely to be used in conjunction with other hydraulic components or systems that require exacting standards of operation. This particular component is manufactured using materials and techniques that ensure it can withstand the rigors of continuous operation in various environments. Its robust construction means it can be applied in machinery across a range of applications where reliable pivoting action is essential. Whether utilized in industrial automation, mobile applications, or heavy machinery, the LAGERBOCK CLTA 50 CD160 PARR SCHWENKZAPF ensures seamless integration with compatible systems to enhance overall efficiency and performance. In summary, the Bosch Rexroth LAGERBOCK CLTA 50 CD160 PARR SCHWENKZAPF (R901071385) represents a specialized solution for mechanical systems requiring dependable swiveling capabilities. It stands as a testament to Bosch Rexroth's expertise in producing high-quality components that meet stringent operational demands.

Technical Data
Dimensions

For applications outside these parameters, please consult us!

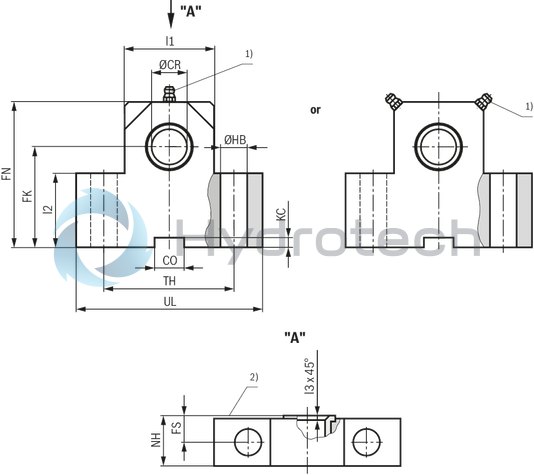

Dimensions: Trunnion bearing block CLTA ‒ AT 4

CLTA 12-20

1)	Lubricating nipple, cone head form A according to DIN 71412
2)	Inside

CLTA 25-100

1)	Lubricating nipple, cone head form A according to DIN 71412
2)	Inside

Dimensions: Trunnion bearing block CLTA ‒ AT 4

ØAL	Type	Suitable for series	Nominal force 1)	ØCR		CO		FK		FN	FS		ØHB		KC		NH	TH		UL	l1	l2	l3	m 3)
										max.							max.			max.
mm			kN	mm		mm		mm		mm	mm		mm		mm	mm	mm	mm		mm	mm	mm	mm	kg
25	CLTA 12	CDT3 CGT3 CST3 - - - -	8	12	H7	10	N9	38	js12	55	8	js14	9	H13	3.3	+ 3.3 0	17 2)	40	js14	63	25	25	1	0.5
32	CLTA 16	CDT3 CGT3 CST3 - - - -	12.5	16	H7	16	N9	45	js12	65	10	js14	11	H13	4.3	+ 3.3 0	21	50	js14	80	30	30	1	0.9
40	CLTA 20	CDT3 CGT3 CST3 - - - -	20	20	H7	16	N9	55	js12	80	10	js14	11	H13	4.3	+ 3.3 0	21	60	js14	90	40	38	1.5	1.35
50	CLTA 25	CDT3 CGT3 CST3 - - - -	32	25	H7	25	N9	65	js12	90	12	js14	14 2)	H13	5.4	+ 3.3 0	26	80	js14	110	56	45	1.5	2.4
63	CLTA 32	CDT3 CGT3 CST3 - - - -	50	32	H7	25	N9	75	js12	110	15	js14	18 2)	H13	5.4	+ 3.3 0	33	110	js14	150	70	52	2	5
80	CLTA 40	CDT3 CGT3 CST3 - - - -	80	40	H7	36	N9	95	js12	140	16	js14	22	H13	8.4	+ 3.3 0	41	125	js14	170	88	60	2.5	8.5
100	CLTA 50	CDT3 CGT3 CST3 - - - -	125	50	H7	36	N9	105	js12	150	20	js14	26	H13	8.4	+ 3.3 0	51	160	js14	210	90	72	2.5	15
125	CLTA 63	CDT3 CGT3 CST3 - - - -	200	63	H7	50	N9	125	js12	195	25	js14	33	H13	11.4	+ 3.3 0	61	200	js14	265	136	87	3	30
160	CLTA 80	CDT3 CGT3 CST3 - - - -	320	80	H7	50	N9	150	js12	230	31	js14	39	H13	11.4	+ 3.3 0	81	250	js14	325	160	112	3.5	59
200	CLTA 100	CDT3 CGT3 CST3 - - - -	500	100	H7	63	N9	200	js12	300	42	js14	52	H13	12.4	+ 3.3 0	101	320	js14	410	200	150	4.5	131

1)	Nominal force applies to applications in pairs
2)	Dimensions may differ depending on the manufacturer
3)	m = weight per pair, brackets are delivered in pairs

ØAL	=	Piston Ø

Notice:

Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.
