BOSCH REXROTH
R901049804
$573.95
- BOSCH REXROTH
- Material:R901049804
- Model:KBPSC8AA/HCG24K4V
Quantity in stock: 2
Unpacked Weight: 0.4438 kg

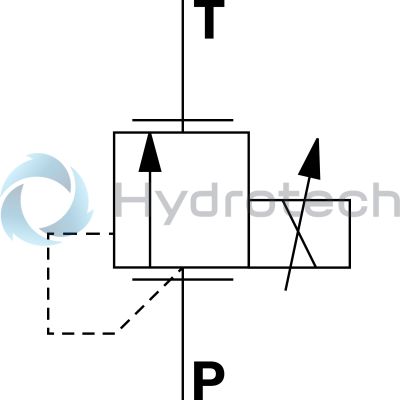

Valves of type KBPS.8A are direct operated proportional pressure relief valves (pilot control valves) in seat design and are used to limit a system pressure. With a command value of 0 or in case of power failure, the minimum pressure is set. Operation by means of a proportional solenoid with central thread and detachable coil. The solenoid's interior is connected to the main port and filled with hydraulic fluid. Dependent on the electric command value, these valves can be used to steplessly set the system pressure to be limited.
Screw-in cartridge valve |
Maximum operating pressure 420 bar (6000 psi) |
Maximum flow 2 l/min (0,5 gpm) |
Cavity SUN T-8A |
Max. pressure | 420 |
Coil | GP37 |
Product family classification | Proportional pressure relief valve, direct operated, increasing characteristic curve |
Productgroup ID | 9,10,11,12,13,14 |
Product family type | KBPS |
Ports number | 2 |
Type of actuation | Electro-proportional |
Sealing material | FKM |
Cavity | Sun T-8A |
Product type | KBPS |
Electrical connector | DIN EN 175301-803 |
Max. flow | 2 |
Type of connection | Screw-in cartridge valve |
Normal position | Normally closed |
Nominal flow | 2 |
Direct - Pilot | Direct acting |
Product family | Relief |
Supply voltage | 24 V DC |
Coil integrated | Integrated coil |
Spool Poppet | Poppet type |
Weight | 0.4438 |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HEES,HEPR,HEPG,HFDU,HFDR,HFAS |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
|
KBPS |
8 |
A |
A |
/ |
H |
C |
V |
* |
01 |
Proportional pressure relief valve, direct operated (pilot control valve) |
KBPS |
Pressure rating |
||
02 |
Up to 30 bar |
B |
Up to 50 bar |
C |
|
Up to 100 bar |
F |
|
Up to 150 bar |
H |
|
Up to 210 bar |
L |
|
Up to 250 bar |
N |
|
Up to 315 bar |
P |
|
Up to 350 bar |
R |
|
Up to 420 bar |
T |
|
03 |
Component size |
8 |
04 |
Minimum pressure with command value = 0 |
A |
05 |
Component series |
A |
06 |
High Performance and mounting cavity R/T-8A (see mounting cavity) |
H |
07 |
Proportional solenoid, wet-pin |
C |
Power supply |
||
08 |
Control electronics 12 V DC |
G12 |
Control electronics 24 V DC |
G24 |
|
Electrical connection |
||
09 |
Without mating connector, with connector according to DIN EN 175301-803, separate order |
K4 |
Without mating connector, with connector DT 04 - 2PA (Deutsch plug) |
K40 |
|
Without mating connector, with connector AMP Junior-Timer |
C4 |
|
Seal material |
||
10 |
FKM seals |
V |
11 |
Standard version |
no code |
800 mA coil |
-8 |
|
12 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
Type |
KBPS.8A | |
Size |
8 | |
Component series |
A | |
Weight |
kg |
0.45 |
Installation position |
any - if it is ensured that no air can collect upstream of the valve. Otherwise, we recommend suspended installation of the valve. | |
Ambient temperature range |
°C |
-20 … +120 |
hydraulic
Type |
KBPS.8A | ||
Maximum flow |
l/min |
2 | |
Hydraulic fluid temperature range |
°C |
-20 … +80 | |
Viscosity range |
mm²/s |
15 … 380 | |
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 20/18/15 according to ISO 4406 (c) | ||
Hysteresis 2) |
% |
< 5 | |
Range of inversion 2) |
% |
< 0.5 | |
Response sensitivity 2) |
% |
< 0.5 | |
Manufacturing tolerance of the command value pressure characteristic curve, related to 0.8 l/min; pressure increasing |
at command value 100 % 2) |
% |
< 5 |
Step response |
0% → 100% 3) |
ms |
70 |
100% → 0% 3) |
ms |
70 |
1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
2) | Of the maximum set pressure |
3) | depending on the system |
