BOSCH REXROTH
R901048597
$12,970.94 USD
- BOSCH REXROTH
- Material:R901048597
- Model:4WRKE32W8-600L-3X/6EG24TK31/A1D3M
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

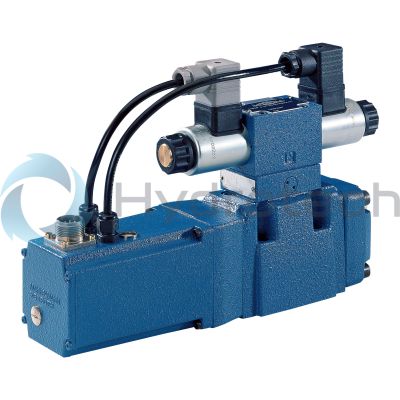

The Bosch Rexroth 4WRKE32W8-600L-3X/6EG24TK31/A1D3M (R901048597) is an advanced industrial hydraulic valve designed for high-performance applications requiring precise control of oil flow direction. This spool valve is pilot-operated, with an external pilot oil supply and internal pilot oil return. It features a linear characteristic curve and utilizes internal piston position feedback to ensure high accuracy in operation. The model is equipped with integrated electronics, allowing for electrical actuation via the included connector pole PE that conforms to EN standards. The 4WRKE32W8-600L-3X/6EG24TK31/A1D3M valve supports a maximum pressure and offers a nominal flow rate, demonstrating its capability to handle demanding hydraulic systems. This particular valve has a size designation of symbol W and conforms to CETOP D and ISO standards for subplate mounting, making it versatile for various installation requirements. The connection diagram follows the NFPA T..R D SizeCETOP D pattern, ensuring compatibility with established hydraulic system designs. With a supply voltage requirement of VDC, the valve operates efficiently in electronic control systems. It features analog connectivity with a command value input range of V. The number of ports and switching positions are designed to meet diverse application needs, while the NBR seals provide durability and resistance against various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. The weight of the unit underscores its robust construction suitable for industrial environments where reliability is paramount. Overall, the Bosch Rexroth 4WRKE32W8-600L-3X/6EG24TK31/A1D3M valve represents a sophisticated solution for those seeking precise hydraulic flow control in their system operations.
The Bosch Rexroth 4WRKE32W8-600L-3X/6EG24TK31/A1D3M (R901048597) is an advanced industrial hydraulic valve designed for high-performance applications requiring precise control of oil flow direction. This spool valve is pilot-operated, with an external pilot oil supply and internal pilot oil return. It features a linear characteristic curve and utilizes internal piston position feedback to ensure high accuracy in operation. The model is equipped with integrated electronics, allowing for electrical actuation via the included connector pole PE that conforms to EN standards. The 4WRKE32W8-600L-3X/6EG24TK31/A1D3M valve supports a maximum pressure and offers a nominal flow rate, demonstrating its capability to handle demanding hydraulic systems. This particular valve has a size designation of symbol W and conforms to CETOP D and ISO standards for subplate mounting, making it versatile for various installation requirements. The connection diagram follows the NFPA T..R D SizeCETOP D pattern, ensuring compatibility with established hydraulic system designs. With a supply voltage requirement of VDC, the valve operates efficiently in electronic control systems. It features analog connectivity with a command value input range of V. The number of ports and switching positions are designed to meet diverse application needs, while the NBR seals provide durability and resistance against various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. The weight of the unit underscores its robust construction suitable for industrial environments where reliability is paramount. Overall, the Bosch Rexroth 4WRKE32W8-600L-3X/6EG24TK31/A1D3M valve represents a sophisticated solution for those seeking precise hydraulic flow control in their system operations.
Size 32, symbol W8, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback
Unpacked Weight: 36.881 kg
| Characteristic curve, linear |
| Spool valve |
| Pilot-operated |
| External pilot oil supply, internal pilot oil return |
| Size 10 … 35 |
| Component series 3X |
| Maximum operating pressure 350 bar |
| Maximum flow 300 l/min |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | Symbol W8 |
| Max. pressure | 350 |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | Electrical with integrated electronics |
| Size | 32 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 1600 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D10 |
| Size_CETOP | D10 |
| Nominal flow | 600 |
| Connection diagram | ISO 4401-10-09-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 3 |
| Weight | 36.881 |
| Seals | NBR |
| Connectivity | Analog, command value ±10 V |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
