BOSCH REXROTH
R901023072

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

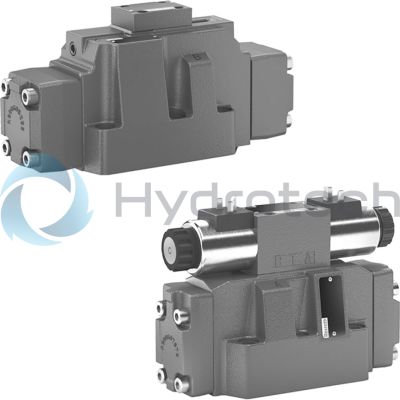

The Bosch Rexroth 4WEH16E7X/6EG96N9EK4/B10 (R901023072) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction, conforming to the hydraulic symbol E. This spool valve is pilot-operated with an internal pilot oil supply and an external pilot oil return. It features a maximum pressure capacity and is equipped with a solenoid actuation mechanism, allowing for precise control through its solenoid-actuated operation. The valve's electrical connection is designed with a connector pole PE in accordance with EN standards, ensuring secure and consistent electrical connectivity. The product conforms to CE standards under the Low Voltage Directive as well as CSA approval according to CSA C. No., highlighting its adherence to rigorous safety and quality requirements. With subplate mounting, the 4WEH16E7X/6EG96N9EK4/B10 offers ease of installation and maintenance. The connection diagram complies with both NFPA T3.5.1 R2-2002 D03 and ISO 4401 standards, making it versatile for various system configurations. It operates on a supply voltage of 24 VDC, features multiple switching positions, and has a weight specification. The valve's seals are made from NBR (nitrile butadiene rubber), providing compatibility with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. This ensures that the valve can be used across different fluid systems without compromising seal integrity or performance. In summary, the Bosch Rexroth 4WEH16E7X/6EG96N9EK4/B10 offers robust performance for industrial hydraulic systems requiring precise flow direction control through its solenoid-actuated spool valve design while meeting international safety and quality standards.
