BOSCH REXROTH
R901013235

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

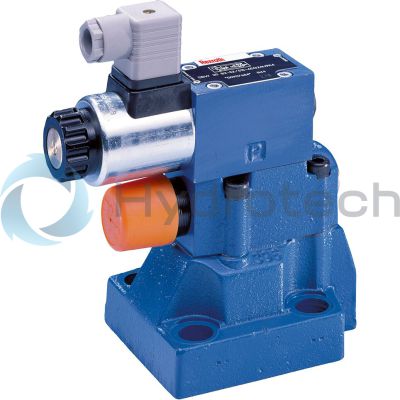

The Bosch Rexroth DBW10B1-5X/200-6EG24N9K4V (R901013235) is a high-performance industrial hydraulic valve designed for reliable pressure limitation at the set value. With its pilot-operated feature and solenoid unloading via a built-on directional spool valve, this model offers precise control for various hydraulic applications. The pressure adjustment range of this valve is customizable within a specified bar range, ensuring adaptability to different system requirements. The DBW10B1-5X/200-6EG24N9K4V features a P T spool symbol and can withstand a maximum pressure that underscores its robustness in demanding environments. It comes equipped with an electrical connector that adheres to EN 175301-803 standards, providing a secure and reliable connection with a 3-pole + PE configuration. The product belongs to Group ID 5XXXX, indicating its classification within Bosch Rexroth's product lineup. This valve is designed for subplate mounting, making installation straightforward and secure. Its connection diagram follows the ISO 4401 standard, ensuring compatibility with industry norms. The supply voltage required for operation is 24 VDC, which is typical for industrial automation systems. With a number of ports available, the DBW10B1-5X/200-6EG24N9K4V allows for versatile connection setups. It features mechanical actuation type along with size 10 specifications and can handle a max flow that enhances its capability to perform in various hydraulic circuits. Weighing in at . kg, it's built to be durable yet manageable in terms of installation and maintenance efforts. The seals are made from FKM material which provides excellent resistance against high temperatures and chemical exposure. This model is compatible with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR types—highlighting its versatility across different system requirements and fluid specifications.
