- Model:SFE50Z0-1X/M
Quantity in stock: 0

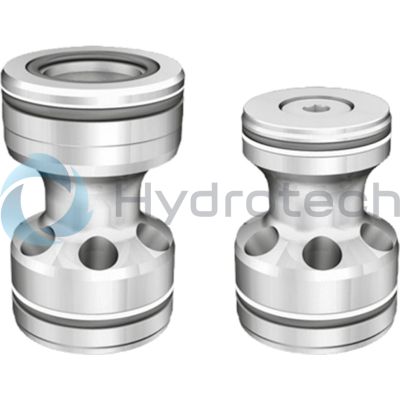

The Bosch Rexroth SFE50Z0-1X/M (R901000131) is a high-performance industrial hydraulic valve designed for reliable blocking of oil flow at selected ports. This seat valve is pilot-operated, belonging to component series X and features a spool symbol A B. It is specifically engineered to handle a maximum pressure with impeccable precision, ensuring robust performance in demanding applications. The SFE50Z0-1X/M valve is characterized by its hydraulically actuated mechanism, which provides smooth and responsive control over the hydraulic system. It boasts a significant number of ports, each designed to accommodate the specific needs of various hydraulic circuits. The type of actuation employed in this model is hydraulic actuation, which contributes to its efficiency and reliability. With its cartridge valve design, the SFE50Z0-1X/M can be easily integrated into block or cylinder installations, making it versatile for a wide range of applications. The connection diagram adheres to ISO standards, ensuring compatibility and ease of integration with existing systems. This model's maximum flow rate is indicated in liters per minute (l/min), highlighting its capability to handle substantial volumes efficiently. The valve comes with NBR seals and can operate using various types of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Additional features include the option for a cover type LFF and the designation as a pilot-operated prefill valve check valve. Its weight specification underscores the product's robustness without compromising on installation versatility. Overall, the Bosch Rexroth SFE50Z0-1X/M offers an optimal solution for those in need of a dependable cartridge valve that excels in both performance and flexibility within industrial hydraulic systems.
Size 50, A → B, hydraulically actuated
Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.
Unpacked Weight: 3.040 kg
Type "SEF . Z" (with optional cover type "LFF")
| Seat valve |
| Pilot-operated |
| Component series 1X |
| Size 25 … 100 |
| Maximum operating pressure 350 bar |
| Maximum flow 2000 l/min |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | A → B |
| Max. pressure | 350 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 2 |
| Type of actuation | with hydraulic actuation |
| Size | 50 |
| Max. flow | 430 |
| Type of connection | Cartridge valve |
| Connection diagram | ISO 7368 |
| Number of switching positions | 2 |
| Weight | 3.040 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
||
|
SFE |
0 |
– |
1X |
/ |
M |
* |
|
01 |
Prefill valves |
SFE |
|
02 |
Size 25 |
25 |
|
Size 32 |
32 |
|
|
Size 40 |
40 |
|
|
Size 50 |
50 |
|
|
Size 63 |
63 |
|
|
Size 80 |
80 |
|
|
Size 100 |
100 |
|
|
03 |
Block installation |
P |
|
Cylinder installation 1) |
Z |
|
|
04 |
without pre-decompression |
0 |
|
05 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10 |
1X |
|
Seal material |
||
|
06 |
NBR seals (other seals on request) |
M |
|
Observe compatibility of seals with hydraulic fluid used. |
||
|
07 |
Further details in the plain text |
* |
1) Control cover type “LFF” incl. matching mounting kit (separate order, see page 8):
With NG25 and 32, alternative control covers type "LFA.D-7X/....F…" (see RE 21010) may be used.
general
|
Size |
25 | 32 | 40 | 50 | 63 | 80 | 100 | |
|
Weight |
kg |
0.53 | 1.05 | 1.94 | 3.2 | 6.48 | 10.3 | 22.15 |
|
Installation position |
any | |||||||
|
Ambient temperature range 1) |
°C |
-30 … +80 | ||||||
| 1) | NBR seals |
hydraulic
|
Size |
25 | 32 | 40 | 50 | 63 | 80 | 100 | ||
|
Maximum operating pressure |
Port P |
bar |
350 | ||||||
|
Anschluss A |
bar |
16 | |||||||
|
Port B |
bar |
350 | |||||||
|
Anschluss X |
bar |
150 | |||||||
|
Cracking pressure 1) |
bar |
≈ 0.12 | |||||||
|
Maximum flow 2) |
Case of application 1 |
l/min |
100 | 170 | 240 | 360 | 580 | 810 | 1210 |
|
Case of application 2 |
l/min |
90 | 140 | 200 | 320 | 510 | 710 | 1070 | |
|
Case of application 3 |
l/min |
60 | 100 | 140 | 220 | 350 | 480 | 730 | |
|
Case of application 4 |
l/min |
50 | 70 | 100 | 160 | 260 | 360 | 540 | |
|
Druckflüssigkeit |
Mineral oil (HL, HLP) to DIN 51524;fast bio-degradable hydraulic fluids according to VDMA 24568; HETG (rape seed oil); other hydraulic fluids on enquiry | ||||||||
|
Hydraulic fluid temperature range |
°C |
-30 … +80 | |||||||
|
Viscosity range |
mm²/s |
10 … 800 | |||||||
|
Maximum admissible degree of contamination of the hydraulic fluid 3) |
Class 20/18/15 according to ISO 4406 (c) | ||||||||
| 1) | Pressure differential at the main poppet for overcoming the spring force |
| 2) | Pulling function (A to B) |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Flow ‒ case of application 1 (A to B)
Flow ‒ case of application 2 (A to B)
Size of the filling tank at least 1.5 x cylinder content
Flow ‒ case of application 3 (A to B)
Flow ‒ case of application 4 (A to B)
Attention!
Faulty dimensioning of prefill valves and connection lines may lead to cavitation effects. The consequences affect the reliability and durability of products!
Attention!
An underdimensioned prefill valve and/or an underdimensioned line leads to gas leaks from the hydraulic fluid with corresponding consequences and often to long-term damage at the cylinder seals.
Notice!
For limit areas, please contact us. It is often sufficient, to select a pipeline which is one size larger.
|
1 |
Cylinders |
|
2 |
Prefill valve |
|
a |
at least 300 mm with extended cylinder |
|
b |
up to 1000 mm with the specified maximum flows |
|
c |
≤ 500 mm |
|
h |
300 mm ≤ h ≤ 500 mm |
For applications outside these parameters, please consult us!
(measured with HLP46, ϑOil {ν = [si]40 mm2/s[/si][imp]40 cSt[/imp]) = [si]40 ±5 °C[/si][imp]104 ±41 °F[/imp])
NG25
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG25
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Size 32
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Size 32
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG40
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG40
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG50
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG50
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG63
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG63
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG80
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG80
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Size 100
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Size 100
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Prefill valve type SFE
Prefill valve type SFE with control cover type LFF
Installation bore for block installation type SFE . P
Dimensions in mm
| 1) | Fit |
Installation bore for block installation type SFE . P
Dimensions in mm
| 1) | Fit |
|
1 |
Port A can be positioned anywhere around the central axis. However, it must be observed that the control bores and the mounting bores are not damaged! |
|
2 |
Block |
|
3 |
Cylinders |
|
NG |
ØD1H7 / ØD8 |
ØD2H7 / ØD7 |
ØD3 |
ØD4 |
ØD5 |
ØD6 |
H1 |
P1 1) |
P2 1) |
T1 |
T2 |
T3 |
T4 |
T5 |
||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 25 | 43 | 37 | 25 | - 5 | 36 | 25 | 7 | 7 | 30 | 13 | 70 | + 0.1 | 56 | 43.5 | 2.5 | 2.5 |
| 32 | 58 | 50 | 31 | - 5 | 46 | 32 | 7 | 9 | 30 | 13 | 78 | + 0.1 | 63 | 47 | 2.5 | 2.5 |
| 40 | 75 | 55 | 40 | - 5 | 58 | 40 | 7 | 11 | 26 | 16 | 81 | + 0.1 | 63 | 43 | 3 | 3 |
| 50 | 90 | 68 | 50 | - 5 | 71 | 50 | 7 | 14 | 31 | 20 | 100 | + 0.1 | 78 | 53 | 4 | 3 |
| 63 | 120 | 90 | 63 | - 5 | 90 | 60 | 7 | 16 | 32 | 23 | 114 | + 0.1 | 89 | 59 | 4 | 4 |
| 80 | 145 | 110 | 78.5 | - 5 | 107 | 76 | 7 | 18 | 36 | 23 | 134 | + 0.1 | 109 | 71 | 5 | 5 |
| 100 | 180 | 135 | 95 | - 5 | 132 | 93 | 7 | 30 | 60 | 30 | 180 | + 0.1 | 148 | 101 | 8 | 8 |
| 1) | Fit |
Installation bore for cylinder installation type SFE . Z
Dimensions in mm
| 1) | Fit |
Installation bore for cylinder installation type SFE . Z
Dimensions in mm
| 1) | Fit |
|
1 |
Port A can be positioned anywhere around the central axis. However, it must be observed that the control bores and the mounting bores are not damaged! |
|
2 |
Cover |
|
3 |
Cylinders |
|
NG |
ØD1H7 / ØD8 |
ØD2H7 / ØD7 |
ØD3 |
ØD4 |
ØD5 |
ØD6 |
H1 |
P1 1) |
P2 1) |
T1 |
T2 |
T3 |
T4 |
||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 25 | 43 | 45 | 25 | - 5 | 36 | 25 | 7 | 7 | 27 | 83 | 85 | + 0.1 | 60 | 41 | 2.5 |
| 32 | 58 | 60 | 31 | - 5 | 46 | 32 | 7 | 9 | 28 | 89.5 | 91.5 | + 0.1 | 66 | 44 | 2.5 |
| 40 | 75 | 78 | 40 | - 5 | 58 | 40 | 7 | 11 | 30 | 91 | 93 | + 0.1 | 71 | 50 | 3 |
| 50 | 90 | 90 | 50 | - 5 | 71 | 50 | 7 | 14 | 34 | 110 | 112 | + 0.1 | 85 | 59 | 4 |
| 63 | 120 | 123 | 63 | - 5 | 90 | 60 | 7 | 16 | 40 | 128 | 130 | + 0.1 | 101 | 71 | 4 |
| 80 | 145 | 150 | 78.5 | - 5 | 107 | 76 | 7 | 18 | 40 | 148 | 150 | + 0.1 | 117 | 79 | 5 |
| 100 | 180 | 185 | 95 | - 5 | 132 | 100 | 7 | 30 | 50 | 188 | 200 | + 0.1 | 152 | 101 | 8 |
| 1) | Fit |
Installation bore and connection dimensions according to ISO 7368
Dimensions in mm
Installation bore and connection dimensions according to ISO 7368
Dimensions in mm
Tolerances:
General tolerances ISO 2768-mK Tolerancing principle ISO 8015Dimensions
|
NG |
ØD2 |
ØD3H13 |
L1 |
L2 |
L3 |
L4 |
L5 |
H1 |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 25 | 6 | - 0.5 | 5 | 85 | 58 | 29 | 33 | 16 | 25 |
| 32 | 8 | - 0.5 | 5 | 102 | 70 | 35 | 41 | 17 | 35 |
| 40 | 10 | - 0.5 | 5 | 125 | 85 | 42.5 | 50 | 23 | 45 |
| 50 | 10 | - 0.5 | 8 | 140 | 100 | 50 | 58 | 30 | 45 |
| 63 | 12 | - 0.5 | 8 | 180 | 125 | 62.5 | 75 | 38 | 65 |
| 80 | 16 | - 0.5 | 10 | 250 | 200 | - | - | - | 50 |
| 100 | 20 | - 0.5 | 10 | 300 | 245 | - | - | - | 63 |
Poppet geometry and determination of the minimum pilot pressure
Dimensions in mm
Poppet geometry and determination of the minimum pilot pressure
Dimensions in mm
|
A1 |
Effective area of the main poppet |
|
A2 |
Effective area of the control spool |
|
s1 |
Stroke of the main poppet |
|
s2 |
Stroke of the control spool |
|
F1 |
Spring force of the valve spring |
|
F2 |
Spring force of the compression spring of the control spool |
|
Vst X |
Pilot volume for opening the valve |
|
pÖ |
Cracking pressure (pressure differential at the main poppet for overcoming the spring force F1) |
|
pSt |
Pilot pressure at port X |
|
pB |
System pressure at port B |
|
|
NG |
A1 |
A2 |
s1 |
s2 |
F1 |
F2 |
VstX |
Unchecking ratio |
|
cm² |
cm² |
mm |
mm |
N |
N |
cm³ |
||
| 25 | 5.31 | 1.33 | 6.2 | 5 | 6 … 14 | 38 … 70 | 0.66 | 4 |
| 32 | 8.04 | 2.01 | 8.5 | 6.5 | 9 … 22 | 58 … 109 | 1.3 | 4 |
| 40 | 13.52 | 3.14 | 10 | 7 | 14 … 29 | 93 … 162 | 2.2 | 4.3 |
| 50 | 21.24 | 4.71 | 12.5 | 9 | 23 … 49 | 149 … 261 | 4.2 | 4.5 |
| 63 | 32.67 | 7.07 | 14.5 | 11 | 35 … 63 | 206 … 348 | 7.8 | 4.6 |
| 80 | 49.02 | 10.18 | 17 | 13 | 57 … 127 | 310 … 579 | 13.2 | 4.8 |
| 100 | 73.13 | 15.9 | 22 | 16 | 81 … 193 | 476 … 952 | 25.5 | 4.6 |
Example: Type SFE32...
pB = 30 bar [435 psi];
pSt = 4.0 x 30 bar [435 psi] = 129 bar [1740 psi]
