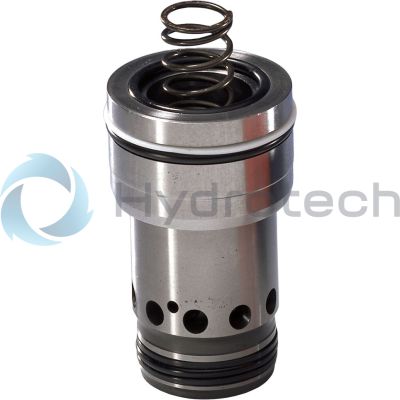

The Bosch Rexroth LC50DR40E7X/ (R900938052) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a predetermined setting value. This hydraulically actuated spool valve, featuring a B A spool symbol, is capable of handling a maximum pressure as specified by its product group ID. It is equipped with a number of ports corresponding to its size and can manage a maximum flow rate that ensures efficient operation within hydraulic systems. The LC50DR40E7X/ valve is of the cartridge type and adheres to DIN ISO standards for installation into standardized receiving holes, which are then sealed with a control cover. The integrated pilot control valve allows for manual or electrically proportional pressure adjustments and conforms to mounting dimensions set by DIN 58367. This model's versatility is highlighted by its ability to combine with control covers to achieve various pressure functions. Particularly, it excels in the pressure reducing function with a default rest position that remains open. Designed without an area difference at port B, this spool valve ensures no effective areas interfere at this port, promoting smooth operation. For the pilot control valve, the same cover types used for pressure relief functions are applicable, specifically type LFA..DB.... The system's dynamics allow the effective pressure at port A to be directed through the pilot oil supply orifice to the spring side of the spool. Below the performance limit and predetermined pressure set on the pilot control valve, the spool remains open due to spring force allowing free flow from port B to port A. When reaching the set pressure point, the spool closes, thereby reducing the pressure at port A according to its characteristic curve. The LC50DR40E7X/ utilizes NBR seals and is compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. It also features an unspecified weight that contributes to its overall robustness in industrial applications.


Size 50, B → A, hydraulically actuated

Industrial hydraulic valve in a high performance range. Reliable pressure reduction to setting value.

Unpacked Weight: 3.101 kg

General

2-way cartridge valves for pressure functions are pilot-operated valves in seat or spool design. The power section designed as cartridge valve (1) is installed into a receiving hole standardized according to DIN ISO 7368 and closed with a control cover (2).

The pilot control valve (4) for manual or electrically proportional pressure adjustment is integrated into the control cover (2) or is installed on the control cover (2) as pilot valve with mounting dimensions according to DIN 24 340.

By combination of cartridge valves with the control covers, different pressure functions can be realized. .

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

Pressure reducing function

Rest position open

The cartridge valve for the pressure reducing function is designed as spool valve without area difference (no effective areas at port B).

As pilot control valve, identical cover types as for the pressure relief function are applied (type LFA..DB...).

The effective pressure at port A is directed via the pilot oil supply orifice to the spring side of the spool. Under the performance limit and the pressure set at the pilot control valve, the spool is pressure-compensated and retained in open position by the spring force to enable free flow from port B to port A.

On reaching the set pressure, the spool is closed and the pressure at port A is reduced according to the pressure-flow characteristics.

Spool valve
Pilot-operated
Spool symbolB → A
Max. pressure315
Productgroup ID9,10,11,12,13,14
Number of ports2
Type of actuationwith hydraulic actuation
Size50
Max. flow1500
Type of connectionCartridge valve
Connection diagramISO 7368-11-9-1-16
Number of switching positions2
Weight3.101
SealsNBR
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HFC

Type

01

Cartridge valve

LC

Size

02

NG 16

16

NG 25

25

NG 32

32

NG 40

40

NG 50

50

NG 63

63

Version

03

Pressure relief function

DR

Cracking pressure

04

Cracking pressure 0 bar (without spring)

00

Cracking pressure approx. 2 bar

20

Cracking pressure approx. 3 bar

1)

30

Cracking pressure approx. 4 bar

40

Cracking pressure approx. 5 bar (NG16, 25 and 32 only)

50

Cracking pressure approx. 8 bar

2)

80

Damping

05

Piston without precision grooves

E

Component series

06

Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions)

7X

Seal material

07

NBR seals

no code

FKM seals

V

01

02

03

04

05

06

07

LC

DR

E

7X

/

Additional preferred types and standard units are specified in the EPS (standard price list).

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Mineral oil

HL, HLP

FKM, NBR

DIN 51524

Bio-degradable

Insoluble in water

HEES (synthetic esters)

FKM

VDMA 24568

HETG (rape seed oil)

FKM, NBR

Soluble in water

HEPG (polyglycols)

FKM

VDMA 24568

Other hydraulic fluids on request

hydraulic

Size

16 25 32 40 50 63

Maximum operating pressure

Port A

bar

315

Port B

bar

315

Maximum flow

LC..DR20.../..

l/min

100 200 300 750 1000 1600

LC..DR40.../..

l/min

150 300 450 1000 1300 2000

Hydraulic fluid

Mineral oil (HL, HLP) according to DIN 51524; fast biodegradable hydraulic fluids according to VDMA 24568 ; HETG (rape seed oil); HEPG (polyglycols); HEES (synthetic esters), other hydraulic fluids on request

Hydraulic fluid temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

Viscosity range

mm²/s

2.8 … 380

Maximum admissible degree of contamination of the hydraulic fluid 1)

Class 20/18/15 according to ISO 4406 (c)
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 16 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 16 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 16 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 16 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 25 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 25 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 25 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 25 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 32 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 32 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 32 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 32 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 40 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 40 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 40 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 40 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 50 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 50 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 50 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 50 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

(measured with HLP46, ϑOil = 40 ±5 °C)

LC 63 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 63 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 63 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

LC 63 DR…

technical illustration-R900938052-Size 50, B → A, hydraulically actuated
technical illustration-R900938052-Size 50, B → A, hydraulically actuated

Version "E"

Version “D”

Area ratio
A1 : A2 = 2 : 1
Version "…A.E…"

Area ratio
A1 : A2 = 14.3 : 1
Version "…B.E…"

Area ratio
A1 : A2 = 2 : 1
Version "…A.D…"

Area ratio
A1 : A2 = 14.3 : 1
Version "…B.D…"

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

Installation bore and connection dimensions according to ISO 7368

Dimensions in mm

technical illustration-R900938052-Size 50, B → A, hydraulically actuated

1

Depth of fit

2

Control dimension

3

If a different diameter is used for port B than ØD3 or (ØD3*), the distance from the cover support surface to the bore center must be calculated.

4

Port B may be positioned around the central axis of port A. However, it must be observed that the mounting bores and the control bores are not damaged.

7

At Ø ≤45 mm → Fitting H8 admissible

NG

ØD1

ØD2

ØD3/(ØD3*)

ØD4

ØD5

ØD6 1)

ØD7

H1/(H1*)

H2

H3

H4

H5

H6

H7

H8

H9

L1

L2

L3

L4

L5

W

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

16 32 H7
-
16 16
25
25 H7
-
M8 8 4 H13
-
35
29.5
56 43 20 11 2 20 2 0.5 65
80
46 23 25 10.5 0.05
25 45 H7
-
25 25
32
34 H7
-
M12 6 6 H13
-
44
40.5
72 58 25 12 2.5 30 2.5 1 85
-
58 29 33 16 0.05
32 60 H7
-
32 32
40
45 H7
-
M16 8 6 H13
-
52
48
85 70 35 13 2.5 30 2.5 1.5 102
-
70 35 41 17 0.1
40 75 H7
-
40 40
50
55 H7
-
M20 10 6 H13
-
64
59
105 87 45 15 3 30 3 2.5 125
-
85 42.5 50 23 0.1
50 90 H7
-
50 50
63
68 H7
-
M20 10 8 H13
-
72
65.5
122 100 45 17 3 35 4 2.5 140
-
100 50 58 30 0.1
63 120 H7
-
63 63
80
90 H7
-
M30 12 8 H13
-
95
86.5
155 130 65 20 4 40 4 3 180
-
125 62.5 75 38 0.2
1) Maximum dimension
