BOSCH REXROTH
R900861962
$67.00 USD
- BOSCH REXROTH
- Material:R900861962
Quantity in stock: 2
For applications outside these parameters, please consult us!
|
Mating connector |
Short designation |
Z55L | ||
|
Design |
A | |||
|
Ambient temperature |
with indicator light/rectifier |
°C |
-20 … +60 | |
|
Protection class according to DIN EN 60529 |
IP65 with mating connector mounted and fitted | |||
|
Indicator light |
LED yellow | |||
|
Number of poles |
2 + PE | |||
|
Terminal area for lines with external diameter |
mm |
5 … 10 | ||
|
Wire cross-section, max. 1) |
mm² |
1.5 | ||
|
Anschlussart |
Screw connection | |||
|
Standard |
EN 175301-803 | |||
|
Derating, max. |
- | |||
| 1) | 2.5 mm2 with special wire end ferrule clamp (e. g. Knipex 975314 or Weidmüller PZ 6/5) |
With indicator light
Dimensions in mm

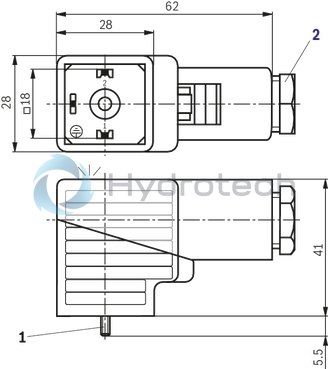

Dimensions in mm
|
1 |
Mounting screw M3 (not detachable), tightening torque MA = 0.5 Nm |
|
2 |
Fitting M16 x 1.5 / NPT 1/2“ (see table) |
