BOSCH REXROTH
R900517812
$493.00
- BOSCH REXROTH
- Material:R900517812
- Model:Z2FS10-5-3X/V
Quantity in stock: 15

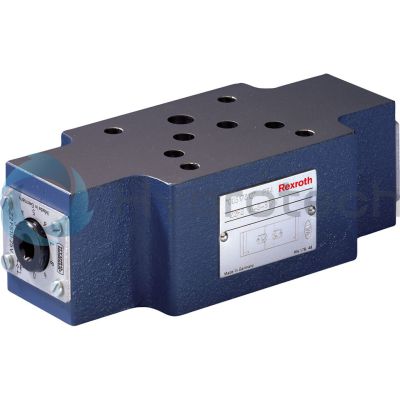

The Bosch Rexroth Z2FS10-5-3X/V (R900517812) is a high-performance industrial hydraulic valve designed for precise flow control within hydraulic systems. This direct-actuated spool valve features a spindle with an internal hexagon and scale, allowing for reliable throttling to the set value. It is equipped with two throttle check valves that are symmetrically aligned, providing the capability to limit flows in one direction while allowing free return flow in the opposite direction. The Z2FS10-5-3X/V model can be used for both main and pilot flow limitations of actuator ports, ensuring versatility in application. For instance, when installed between a directional valve and a subplate, it serves as a main flow limiter to adjust actuator velocity. When placed between a pilot control valve and the main valve, it can adjust switching times for pilot-operated directional valves. This sandwich plate valve conforms to the ISO porting pattern standard and offers various adjustment types including a lockable rotary knob with scale and meter-in or meter-out throttling options. Its corrosion-protected design ensures durability in challenging environments. The size of this component series X allows it to handle a maximum operating pressure of up to bar and supports maximum flow rates measured in liters per minute. With its FKM seals, the Z2FS10-5-3X/V is compatible with multiple hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. This ensures adaptability with different system requirements and fluid types for broad industrial use. The model's construction adheres to high-quality standards set by Bosch Rexroth for reliability and performance in demanding applications.
Size 10, A1 → A2, B1 → B2 or A2 → A1, B2 → B1, mechanical
Industrial hydraulic valve in a high performance range. Reliable throttling of the flow to setting value.
Unpacked Weight: 2.93 kg
The valve type Z2FS 10 is a throttle check valve in sandwich plate design. It is used for the main or pilot flow limitation of one or two actuator ports.
Two throttle check valves aligned symmetrically to each other limit flows in one direction and allow free return flow in the opposite direction.
In case of supply throttling, the hydraulic fluid is directed through channel A1 via throttling point (1) formed by the control edge (2) and the throttle spool (3.1) to actuator A2. The throttle spool (3.1) can be axially adjusted via the spindle (4) for adjustment of the throttling point (1).
Simultaneously, the hydraulic fluid in channel A1 is directed via the bore (5) to the piston side (6). The active pressure and the spring force retain the throttle spool (3.1) in throttle position.
The hydraulic fluid return flow from actuator B2 displaces the throttle spool (3.2) against the spring (7) and enables the unobstructed flow as check valve. Depending on the installation position, the throttling effect may occur in supply or discharge.
Main flow limitation
For actuator velocity adjustment (main flow limitation), the throttle check valve is installed between the directional valve and the subplate.
Pilot flow limitation
With pilot-operated directional valves, the throttle check valve can be applied for switching time adjustment (pilot flow limitation). In this case, it is installed between the pilot control valve and the main valve.
Supply throttling
| Spool valve |
| Direct actuated |
| Internal hexagon with scale |
| Maximum operating pressure 315 bar |
| Maximum flow 160 l/min |
| Size 10 |
| Component series 3X |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | A1 → A2, B1 → B2 or A2 → A1, B2 → B1 |
| Max. pressure | 350 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | with mechanical actuation |
| Size | 10 |
| Max. flow | 160 |
| Type of connection | Sandwich plate |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D05 |
| Size_CETOP | D05 |
| Connection diagram | ISO 4401-05-04-0-05 |
| Number of switching positions | 2 |
| Weight | 2.93 |
| Seals | FKM |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
||
|
Z2FS |
10 |
– |
3X |
/ |
* |
|
01 |
Throttle check valve, sandwich plate design |
Z2FS |
|
02 |
Size 10 |
10 |
|
03 |
Throttle check valve side A and B |
– 1) |
|
Throttle check valve side A |
A |
|
|
Throttle check valve side B |
B |
|
|
Adjustment type |
||
|
04 |
Lockable rotary knob with scale |
3 2) |
|
Spindle with internal hexagon and scale |
5 |
|
|
Rotary knob with scale |
7 |
|
|
05 |
Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) |
3X |
|
06 |
With two throttle check valves, supply or discharge throttling (the valve can be rotated) |
no code |
|
Supply throttling on side A (…A.–3X/S) |
S |
|
|
Supply throttling on side B (…B.–3X/S) |
||
|
Discharge throttling on side A (…A.–3X/S2) |
S2 |
|
|
Discharge throttling on side B (…B.–3X/S2) |
||
|
Corrosion resistance |
||
|
07 |
None |
no code |
|
Improved corrosion protection (240 h salt spray test according to EN ISO 9227) |
J3 |
|
|
Seal material |
||
|
08 |
NBR seals |
no code |
|
FKM seals |
V |
|
|
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) |
||
|
Pilot oil duct |
||
|
09 |
None |
no code |
|
Via channel X and Y |
SO30 |
|
|
10 |
Further details in the plain text |
* |
| 1) | Identical adjustment types on sides A and B. |
| 2) | Key with material no. R900008158 is included in the scope of delivery. |
general
|
Size |
10 | ||
|
Weight (approx.) |
kg |
3.1 | |
|
Installation position |
any | ||
|
Ambient temperature range |
NBR seals |
°C |
-30 … +80 |
|
FKM seals |
°C |
-20 … +80 | |
hydraulic
|
Size |
10 | ||
|
Maximum operating pressure |
bar |
315 | |
|
Maximum flow |
l/min |
160 | |
|
Hydraulic fluid |
see table | ||
|
Hydraulic fluid temperature range |
NBR seals |
°C |
-30 … +80 |
|
FKM seals |
°C |
-20 … +80 | |
|
Viscosity range |
mm²/s |
10 … 800 | |
|
Maximum admissible degree of contamination of the hydraulic fluid 1) |
Class 20/18/15 according to ISO 4406 (c) | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
|
Mineral oil |
HL, HLP |
FKM, NBR |
DIN 51524 |
90220 |
|
|
Bio-degradable 1) |
Insoluble in water |
HETG |
FKM |
ISO 15380 |
90221 |
|
HEES |
FKM |
||||
|
Soluble in water |
HEPG |
FKM |
ISO 15380 |
||
|
Flame-resistant |
Water-free |
HFDU (glycol base) |
FKM |
ISO 12922 |
90222 |
|
HFDU (ester base) 1) |
FKM |
||||
|
Containing water |
HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) |
NBR |
ISO 12922 |
90223 |
|
|
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Flame-resistant – containing water: Maximum pressure differential 210 bar, otherwise, increased cavitation erosion Life cycle as compared to operation with mineral oil HL, HLP 30 … 100% Maximum hydraulic fluid temperature 60 °C Bio-degradable and flame-resistant: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system. |
|||||
| 1) | Not recommended for corrosion-protected version "J3" (contains zinc) |
For applications outside these parameters, please consult us!
(measured with HLP46, ϑoil = 40 ±5 °C)
Δp-qV characteristic curves (via check valve)
Δp-qV characteristic curves (constant throttle position)
Supply throttling "S"
Version „‒…SO30“
Discharge throttling "S2"
Version „‒…SO30“
Supply throttling "S"
Version „A…SO30“
Discharge throttling "S2"
Version „A…SO30“
Supply throttling "S"
Version „B…SO30“
Discharge throttling "S2"
Version „B…SO30“
➀ = component side
➁ = plate side
Notices:
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. Version "SO30" is shown. The standard version does not have ports X and Y.Dimensions: Version "–"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
8 |
Modification from supply to discharge throttling is realized by rotation of the device around axis "X" – "X" (version "–" only) |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Dimensions: Version "A"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Dimensions: Version "B"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Notices:
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30" is shown. The standard version does not have ports X and Y.
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
4 hexagon socket head cap screws 1/4-2 UNC
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Dimensions in mm
Dimensions in mm
