BOSCH REXROTH
R900224634

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

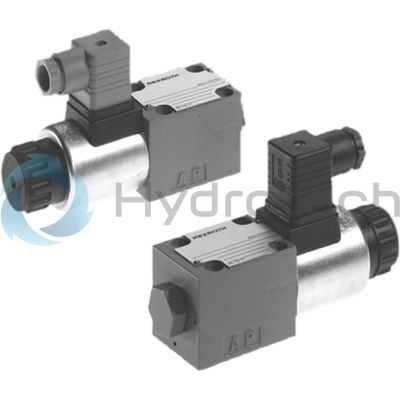

The Bosch Rexroth M-3SED6UK1X/350CG96N9K4/V (R900224634) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction. This seat valve is direct actuated and features a spool symbol UK, which indicates its specific function and flow paths. It comes equipped with both concealed manual override and auxiliary actuation for enhanced operational flexibility. The component series X to which this valve belongs signifies its advanced design iteration, ensuring compatibility with modern hydraulic systems. With a maximum pressure capacity and the ability to accommodate a max flow rate, this valve is well-suited for demanding applications requiring precise control of fluid dynamics. It operates with solenoid actuation, allowing for electronic control of the valve's position via an electrical connection that includes a connector pole PE conforming to EN standards. This particular model is designed for subplate mounting and adheres to connection diagrams NFPA T3.5.1 R2 D03 (Size 6 CETOP 3) and ISO 4401-03-02-0-05, ensuring standardization and ease of integration into various hydraulic circuits. The supply voltage required for the solenoid is 24 VDC, which is common in industrial settings. Constructed to accommodate various types of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR alongside FKM seals ensures compatibility with a broad range of system requirements. Additionally, the M-3SED6UK1X/350CG96N9K4/V valve meets CE conformity standards as well as the Low Voltage Directive EUbrCSA approval according to CSA C22.2 No. 0-M91 for safety assurance. This Bosch Rexroth hydraulic valve represents a robust solution for fluid control in sophisticated hydraulic systems where reliability and precision are paramount. Its design caters to both ease of use with manual overrides and advanced functionality through solenoid actuation—making it an essential component in an array of industrial applications.
