BOSCH REXROTH
R900224614

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

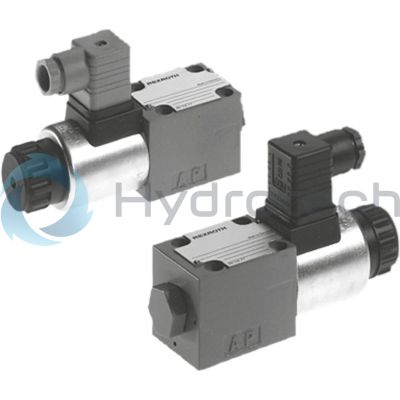

The Bosch Rexroth M-3SED6UK1X/350CG24N9K4QMAG24 (R900224614) is a high-performance industrial hydraulic valve designed for reliable control and direction of oil flow in hydraulic systems. This direct-actuated seat valve features a size UK spool symbol, which indicates its specific flow path characteristics and capabilities. The unit is equipped with an inductive position switch type QM, ensuring monitored switching positions for enhanced operational safety. Additionally, it includes a concealed manual override and auxiliary actuation, providing flexibility and control in various scenarios. With a maximum pressure capacity and an electrical connection via a connector pole PE conforming to EN 175301-803 standards, the M-3SED6UK1X/350CG24N9K4QMAG24 valve ensures robust performance in demanding applications. It belongs to product group ID 4WRPEH, indicating its series and specialization within the Bosch Rexroth portfolio. The valve offers solenoid actuation with a supply voltage of 24 VDC, making it suitable for integration into diverse electrical systems. Designed for subplate mounting, this valve adheres to NFPA T3.5.1 R2 D03 and ISO 4401 size CETOP 03 standards for compatibility with industry norms. It provides ease of installation and maintenance due to its standardized connection diagrams. The number of ports available on this model allows for versatile hydraulic circuit configurations. The M-3SED6UK1X/350CG24N9K4QMAG24 can handle a maximum flow rate as specified by its design parameters, ensuring efficient system operation. Its weight is carefully calibrated to balance durability with ease of handling during installation or servicing. Lastly, the valve utilizes NBR seals compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types, ensuring wide-ranging application suitability across different hydraulic fluid requirements.
