BOSCH REXROTH
R900224595

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

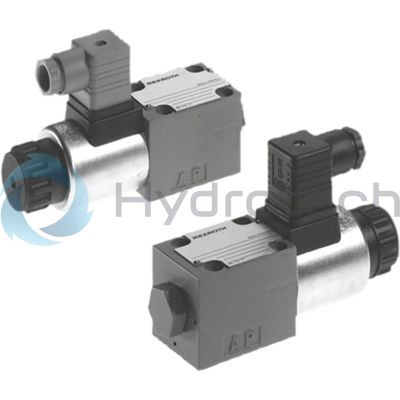

The Bosch Rexroth M-3SED6UK1X/350CG24K4/B12 (R900224595) is a high-performance industrial hydraulic valve designed to reliably switch the direction of oil flow in hydraulic systems. This direct actuated seat valve features a throttle insert nozzle with a diameter of 0. mm in channel P, ensuring precise control over fluid movement. The spool symbol for this model is designated as Symbol UK, which specifies its function and application in hydraulic circuits. With a maximum pressure capacity and the ability to handle a max flow rate, the M-3SED6UK1X/350CG24K4/B12 is built for robust operation under demanding conditions. It comes equipped with solenoid actuation, allowing for electronic control and efficient switching between its number of switching positions. The electrical connection is facilitated through a Connector pole + PE according to EN 175301-803 standards, ensuring secure and reliable power supply to the solenoid. This valve is designed for subplate mounting with connection diagrams conforming to NFPA T3.5.1 R2 D03 and ISO 4401 standards, making it compatible with industry-standard configurations. The CETOP D03 size further underscores its adaptability to various system setups. Operating on a supply voltage of 24 VDC, it integrates seamlessly into many existing hydraulic systems. Weighing in at . kg, the M-3SED6UK1X/350CG24K4/B12 doesn't add significant weight to machinery, facilitating ease of installation and maintenance. It utilizes NBR seals which are suitable for use with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Overall, this Bosch Rexroth valve is an essential component for applications requiring precise control over fluid dynamics within an industrial setting. Its robust design paired with advanced electrical actuation capabilities make it a versatile choice for engineers looking to optimize their hydraulic systems' performance.
