BOSCH REXROTH
R900172199
$505.99 USD
- BOSCH REXROTH
- Material:R900172199
- Model:MULTISTATION MANI. 2HSR06-25/01D PHOSPH&
Quantity in stock: 0

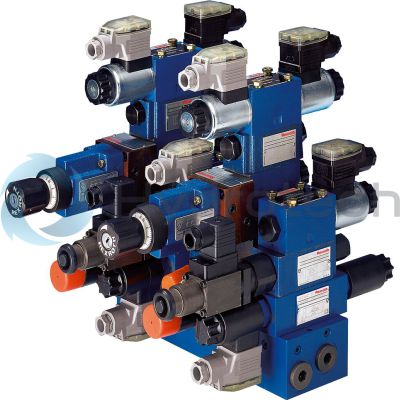

The Bosch Rexroth MULTISTATION MANI. 2HSR06-25/01D PHOSPH (R900172199) is a base element designed for compact hydraulic control, specifically tailored to accommodate two valves of size 6. This model boasts a vertical stacking design that facilitates ready-for-connection controls, offering a streamlined solution for hydraulic systems. The unit features a common pump and tank line, which simplifies the hydraulic circuit while ensuring efficient operation. With separate actuator ports for each station, the R900172199 provides versatility in connecting actuators without interference between stations. The maximum operating pressure for this manifold is an impressive 250 bar, showcasing its capability to handle demanding applications. A phosphate coating according to DIN EN standards covers the surface of the manifold, offering protection and durability to withstand various operating conditions. This model includes lateral connection points with port sizes for both pump and return designated as G3/4, aligning with industry standards for ease of integration. The product's dimensions are crafted to support multiple vertical stackings, making it suitable for systems requiring a compact footprint without compromising on functionality. The MULTISTATION MANI. 2HSR06-25/01D PHOSPH weighs in at a considerable mass that reflects its robust construction and ability to support hydraulic fluid HLP. Additionally, optional measuring ports in the actuator lines provide flexibility for system diagnostics and monitoring. Overall, this model from Bosch Rexroth is engineered to offer reliable performance in controlling hydraulic flows within various applications while maintaining a compact design that allows for easy installation and maintenance within any system requiring precise hydraulic regulation.
Size 6, 2 valves
Compact hydraulic control for two valves of size 6
Unpacked Weight: 3.801 kg
| Base element for ready-for-connection controls in vertical stacking design |
| Compacter hydraulic control block |
| Common pump and tank line |
| Separate actuator ports of the stations |
| Size 6 |
| Maximum operating pressure 315 bar |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Max. pressure | 315 |
| Surface coating | Phosphate coating DIN EN 12476 |
| Port sizes pump and return | G1/2 |
| Productgroup ID | 9,10,11,12,13,14 |
| Connection point | lateral |
| Size | 6 |
| Length | 120 |
| Number of vertical stackings | 2 |
| Port size | G3/8 |
| Weight | 3.801 |
| Hydraulic fluid | HLP |
|
Manifold |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
||
|
HSR |
06 |
‒ |
/ |
01 |
|
Number of ready-for-connection controls in vertical stacking design |
||
|
01 |
1 Control |
1 |
|
2 controls |
2 |
|
|
3 Controls |
3 |
|
|
4 controls |
4 |
|
|
5 controls |
5 |
|
|
6 controls |
6 |
|
|
7 controls |
7 |
|
|
8 controls |
8 |
|
|
9 controls |
9 |
|
|
10 controls |
10 |
|
|
02 |
Manifold |
HSR |
|
03 |
Size 6 |
06 |
|
Component series |
||
|
04 |
Port size: A, B = G3/8; P, T = G1/2 |
25 |
|
With enlarged connection thread; port size: A, B = G1/2; P, T = G3/4 |
35 |
|
|
Connection thread |
||
|
05 |
Pipe thread according to ISO 228/1 |
01 |
|
Position of actuator ports |
||
|
06 |
Lateral |
C |
|
At the bottom |
D |
|
|
Version |
||
|
07 |
Standard version |
no code |
|
With measuring ports in A and B |
S08 1) |
|
|
Coating |
||
|
08 |
Phosphate coating according to DIN EN 12476 |
PHOSPHATED 2) |
|
Galvanic coating DIN 50979 |
FE//ZN8//CN/T0 |
|
|
1) Not possible with component series 25 with lateral actuator ports |
||
|
2) Standard version (manganese or zinc phosphate coating) |
||
|
Size |
6 | |
|
Material |
GGG40 | |
|
Surface coating |
Standard coating: Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants) | |
|
Operating pressure max. 1) |
bar |
315 |
| 1) | Manifold without valve fitting |
For applications outside these parameters, please consult us!
