BOSCH REXROTH
R900170953
$1,417.20 USD
- BOSCH REXROTH
- Material:R900170953
- Model:MULTISTATION MANI. 7HSR06-35/01C PHOSPH&
Quantity in stock: 0

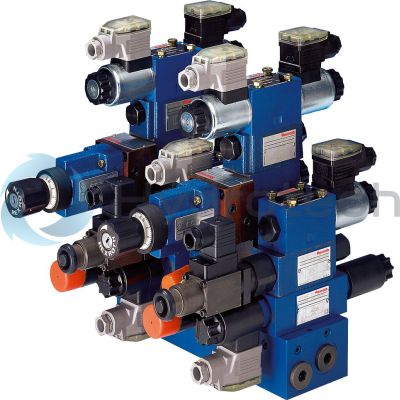

The Bosch Rexroth MULTISTATION MANI. 7HSR06-35/01C PHOSPH& (R900170953) is a highly efficient and compact hydraulic control block designed for vertical stacking applications. This base element enables ready-for-connection controls and offers a streamlined solution for integrating valves of size 6. It features a common pump and tank line, which simplifies the hydraulic circuit while maintaining separate actuator ports for each station, ensuring precise control and flexibility in various hydraulic systems. With a maximum operating pressure of 350 bar, the MULTISTATION MANI. 7HSR06-35/01C PHOSPH& is engineered to withstand demanding conditions and deliver reliable performance. The lateral connection points are designed to facilitate easy installation and maintenance. Its port sizes for the pump and return are G3/8, which is standard for this type of equipment, ensuring compatibility with a wide range of hydraulic systems. The product's dimensions are optimized for space-saving installations, making it an ideal choice for applications where space is at a premium. It can support multiple vertical stackings, allowing users to expand their system as needed without requiring significant additional space. Additionally, optional measuring ports in the actuator lines offer the possibility to monitor system performance directly at critical points. This model is compatible with HLP hydraulic fluid, which is commonly used in industrial applications due to its excellent lubrication properties and thermal stability. The unit's robust construction ensures that it can operate effectively with this type of fluid under high-pressure conditions. Overall, the Bosch Rexroth MULTISTATION MANI. 7HSR06-35/01C PHOSPH& provides a versatile and durable solution for managing hydraulic functions in various applications where compact design, high pressure capability, and modular expansion are essential requirements.
Size 6, 7 valves
Compact hydraulic controls for 7 valves of size 6
Unpacked Weight: 25.201 kg
| Base element for ready-for-connection controls in vertical stacking design |
| Compacter hydraulic control block |
| Common pump and tank line |
| Separate actuator ports of the stations |
| Size 6 |
| Maximum operating pressure 315 bar |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Max. pressure | 315 |
| Port sizes pump and return | G3/4 |
| Productgroup ID | 9,10,11,12,13,14 |
| Connection point | lateral |
| Size | 6 |
| Length | 395 |
| Number of vertical stackings | 7 |
| Port size | G1/2 |
| Weight | 25.201 |
| Hydraulic fluid | HLP |
|
Manifold |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
||
|
HSR |
06 |
‒ |
/ |
01 |
|
Number of ready-for-connection controls in vertical stacking design |
||
|
01 |
1 Control |
1 |
|
2 controls |
2 |
|
|
3 Controls |
3 |
|
|
4 controls |
4 |
|
|
5 controls |
5 |
|
|
6 controls |
6 |
|
|
7 controls |
7 |
|
|
8 controls |
8 |
|
|
9 controls |
9 |
|
|
10 controls |
10 |
|
|
02 |
Manifold |
HSR |
|
03 |
Size 6 |
06 |
|
Component series |
||
|
04 |
Port size: A, B = G3/8; P, T = G1/2 |
25 |
|
With enlarged connection thread; port size: A, B = G1/2; P, T = G3/4 |
35 |
|
|
Connection thread |
||
|
05 |
Pipe thread according to ISO 228/1 |
01 |
|
Position of actuator ports |
||
|
06 |
Lateral |
C |
|
At the bottom |
D |
|
|
Version |
||
|
07 |
Standard version |
no code |
|
With measuring ports in A and B |
S08 1) |
|
|
Coating |
||
|
08 |
Phosphate coating according to DIN EN 12476 |
PHOSPHATED 2) |
|
Galvanic coating DIN 50979 |
FE//ZN8//CN/T0 |
|
|
1) Not possible with component series 25 with lateral actuator ports |
||
|
2) Standard version (manganese or zinc phosphate coating) |
||
|
Size |
6 | |
|
Material |
GGG40 | |
|
Surface coating |
Standard coating: Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants) | |
|
Operating pressure max. 1) |
bar |
315 |
| 1) | Manifold without valve fitting |
For applications outside these parameters, please consult us!
