- Material:R900170949
- Model:MULTISTATION MANI. 3HSR06-35/01C PHOSPH&
Quantity in stock: 0

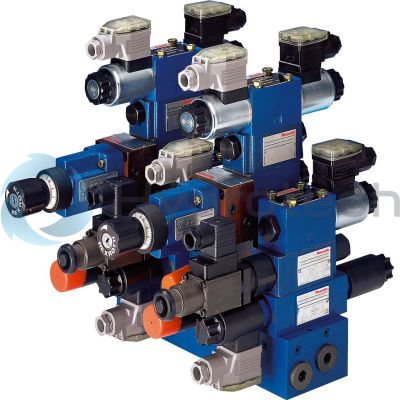

The Bosch Rexroth MULTISTATION MANI. 3HSR06-35/01C PHOSPH& (R900170949) is a sophisticated hydraulic manifold designed for compact hydraulic controls with the capability to accommodate valves of size 6. This base element is engineered for ready-for-connection controls in a vertical stacking design, offering efficiency and space-saving benefits for various applications. It features a common pump and tank line, ensuring streamlined operation across multiple stations, while also providing separate actuator ports for each station to maintain independent control. With a maximum operating pressure of 350 bar, this manifold ensures robust performance in demanding environments. The lateral connection points are designed for ease of access and maintenance, contributing to the overall reliability of the system. The MULTISTATION MANI. has dimensions that support multiple vertical stackings without compromising on system integrity or performance. The port sizes for both the pump and return are standardized at G3/8, facilitating compatibility with a wide range of hydraulic systems. The use of Hydraulic fluid HLP highlights its compliance with industry standards for hydraulic operations. Additionally, optional measuring ports in the actuator lines offer enhanced monitoring capabilities, allowing for precise control over hydraulic flow and pressure. The unit's weight is optimized to balance durability with ease of handling during installation or any necessary reconfigurations. Furthermore, the possibility to mount sandwich plates and valves directly onto the manifold underscores its adaptability and user-friendly design. Overall, this Bosch Rexroth hydraulic manifold stands out as an integral component in creating efficient and reliable hydraulic systems, suitable for a variety of applications requiring compact yet powerful control solutions.
Size 6, 3 valves
Compact hydraulic controls for 3 valves of size 6
Unpacked Weight: 9.46 kg
| Base element for ready-for-connection controls in vertical stacking design |
| Compacter hydraulic control block |
| Common pump and tank line |
| Separate actuator ports of the stations |
| Size 6 |
| Maximum operating pressure 315 bar |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Max. pressure | 315 |
| Port sizes pump and return | G3/4 |
| Productgroup ID | 9,10,11,12,13,14 |
| Connection point | lateral |
| Size | 6 |
| Length | 175 |
| Number of vertical stackings | 3 |
| Port size | G1/2 |
| Weight | 9.46 |
| Hydraulic fluid | HLP |
|
Manifold |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
||
|
HSR |
06 |
‒ |
/ |
01 |
|
Number of ready-for-connection controls in vertical stacking design |
||
|
01 |
1 Control |
1 |
|
2 controls |
2 |
|
|
3 Controls |
3 |
|
|
4 controls |
4 |
|
|
5 controls |
5 |
|
|
6 controls |
6 |
|
|
7 controls |
7 |
|
|
8 controls |
8 |
|
|
9 controls |
9 |
|
|
10 controls |
10 |
|
|
02 |
Manifold |
HSR |
|
03 |
Size 6 |
06 |
|
Component series |
||
|
04 |
Port size: A, B = G3/8; P, T = G1/2 |
25 |
|
With enlarged connection thread; port size: A, B = G1/2; P, T = G3/4 |
35 |
|
|
Connection thread |
||
|
05 |
Pipe thread according to ISO 228/1 |
01 |
|
Position of actuator ports |
||
|
06 |
Lateral |
C |
|
At the bottom |
D |
|
|
Version |
||
|
07 |
Standard version |
no code |
|
With measuring ports in A and B |
S08 1) |
|
|
Coating |
||
|
08 |
Phosphate coating according to DIN EN 12476 |
PHOSPHATED 2) |
|
Galvanic coating DIN 50979 |
FE//ZN8//CN/T0 |
|
|
1) Not possible with component series 25 with lateral actuator ports |
||
|
2) Standard version (manganese or zinc phosphate coating) |
||
|
Size |
6 | |
|
Material |
GGG40 | |
|
Surface coating |
Standard coating: Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants) | |
|
Operating pressure max. 1) |
bar |
315 |
| 1) | Manifold without valve fitting |
For applications outside these parameters, please consult us!
