Material:R900001329
Model:SWIVELHEADCGK20KPL. Cylinder

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CGK 20 KPL. (R900001329) is a precision-engineered swivel head component designed for use in various mechanical and hydraulic systems. This product is characterized by its robust construction and high-quality materials, ensuring longevity and reliable performance in demanding applications. The swivel head facilitates angular movement, providing flexibility and precise control within mechanical assemblies. It is particularly suitable for scenarios requiring rotational motion or the transfer of forces at an angle. Crafted with attention to detail, the CGK 20 KPL. model ensures seamless integration into existing systems, thanks to its standardized dimensions and compatibility with other Bosch Rexroth components. Its design caters to ease of installation and maintenance, making it a practical choice for engineers and technicians looking for efficient solutions. The capabilities of this swivel head extend to its ability to withstand varying operational pressures and loads while maintaining accuracy in movement. This makes it an essential part of equipment in sectors that rely on hydraulic systems' precision, such as manufacturing automation or mobile applications. In summary, the Bosch Rexroth CGK 20 KPL. (R900001329) swivel head is a versatile and dependable component that offers enhanced motion control in complex mechanical systems. Its construction quality and design efficiency make it a valuable addition to any setup requiring reliable angular movement capabilities.

Technical Data
Dimensions

For applications outside these parameters, please consult us!

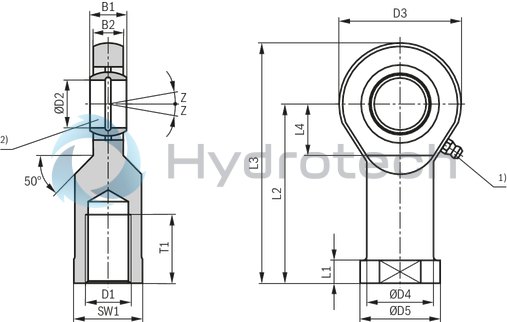

Dimensions: Swivel head CGK

ISO 12240-4

1)	Lubricating nipple, cone head form A according to DIN 71412
2)	Related bolt Ø m6

Dimensions: Swivel head CGK

ØAL	ØMM	Type	Suitable for series	B1		B2	D1	ØD2		D3	ØD4	ØD5	L1	L2	L3	L4	T1	SW1 3)	Z 3)	m 4)	C0 5)	Fadm 6)
										max.	max.	max.			max.	min.	min.
mm				mm	mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm		°	kg	kN	kN
25	- / -	CGK 10 1)	CD70 CG70 - - - - -	9	0 - 0.12	7	M10	10	h5	30	16	20	6.5	43	60	13	15	15 / 16 mm	12 ... 15	0.07	17.6	5.8
32	- / -	CGK 12 1)	CD70 CG70 - - - - -	10	0 - 0.12	8	M12	12	h5	35	19	23	7	50	69	17	18	19 mm / -	10 ... 11	0.1	24.5	8.1
40	16 mm / -	CGK 15 2)	CD70 CG70 CD210 CG210 - - -	12	0 - 0.12	10	M14	15	h5	41	22	27	8	61	83	19	21	22 mm / -	8 ... 12	0.16	36	11.9
40	18 mm / -	CGK 15 2)	CD70 CG70 CD210 CG210 - - -	12	0 - 0.12	10	M14	15	h5	41	22	27	8	61	83	19	21	22 mm / -	8 ... 12	0.16	36	11.9
40	25 mm / -	CGK 20 2)	CD210 CG210 - - - - -	16	0 - 0.12	13	M20 x 1.5	20	h5	54	28	36	10	77	106	24	30	30 / 32 mm	9	0.34	60	19.8
50	22 mm / -		CD70 CG70 CD210 CG210 - - -	16	0 - 0.12	13	M20 x 1.5	20	h5	54	28	36	10	77	106	24	30	30 / 32 mm	9	0.34	60	19.8
50	25 mm / -		CD70 CG70 CD210 CG210 - - -	16	0 - 0.12	13	M20 x 1.5	20	h5	54	28	36	10	77	106	24	30	30 / 32 mm	9	0.34	60	19.8
50	36 mm / -	CGK 25	CD210 CG210 - - - - -	20	0 - 0.12	17	M24 x 2	25	h5	65	35	44	12	94	128	30	36	36 mm / -	7	0.6	83	27.4
63	25 mm / -		CD70 CG70 CD210 CG210 - - -	20	0 - 0.12	17	M24 x 2	25	h5	65	35	44	12	94	128	30	36	36 mm / -	7	0.6	83	27.4
63	28 mm / -		CD70 CG70 CD210 CG210 - - -	20	0 - 0.12	17	M24 x 2	25	h5	65	35	44	12	94	128	30	36	36 mm / -	7	0.6	83	27.4
63	36 mm / -	CGK 30	CD70 CG70 CD210 CG210 - - -	22	0 - 0.12	19	M30 x 2	30	h5	75	42	52	15	110	149	34	45	41 / 46 mm	6	0.9	110	36.3
63	45 mm / -		CD210 CG210 - - - - -	22	0 - 0.12	19	M30 x 2	30	h5	75	42	52	15	110	149	34	45	41 / 46 mm	6	0.9	110	36.3
80	36 mm / -		CD70 CG70 CD210 CG210 - - -	22	0 - 0.12	19	M30 x 2	30	h5	75	42	52	15	110	149	34	45	41 / 46 mm	6	0.9	110	36.3
80	45 mm / -		CD70 CG70 - - - - -	22	0 - 0.12	19	M30 x 2	30	h5	75	42	52	15	110	149	34	45	41 / 46 mm	6	0.9	110	36.3
80	45 mm / -	CGK 35	CD210 CG210 - - - - -	25	0 - 0.12	21	M36 x 3	35	h5	84	47	60	15	125	169	40	60	50 mm / -	6	1.4	146	48.2
80	56 mm / -	CGK 40	CD210 CG210 - - - - -	28	0 - 0.12	23	M39 x 3	40	h5	94	52	67	18	142	191	46	65	55 mm / -	7	2	180	59.4
100	56 mm / -	CGK 40	CD70 CG70 - - - - -	28	0 - 0.12	23	M39 x 3	40	h5	94	52	67	18	142	191	46	65	55 mm / -	7	2	180	59.4
100	45 mm / -	CGK 45	CD210 CG210 - - - - -	32	0 - 0.12	27	M42 x 3	45	h5	104	58	72	20	145	199	50	65	60 / 65 mm	7	2.7	240	79.2
125	45 mm / -	CGK 45	CD70 CG70 - - - - -	32	0 - 0.12	27	M42 x 3	45	h5	104	58	72	20	145	199	50	65	60 / 65 mm	7	2.7	240	79.2
100	50 mm / -	CGK 50	CD210 CG210 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
100	70 mm / -		CD210 CG210 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
125	50 mm / -		CD210 CG210 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
125	56 mm / -		CD210 CG210 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
150	50 mm / -		CD70 CG70 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
150	56 mm / -		CD70 CG70 - - - - -	35	0 - 0.12	30	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
150	70 mm / -		CD70 CG70 - - - - -	35	0 - 0.12	38	M45 x 3	50	h5	114	62	77	20	160	219	58	68	65 / 70 mm	6	3.5	290	95.7
125	63 mm / -	CGK 60	CD210 CG210 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
125	90 mm / -		CD210 CG210 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
150	70 mm / -		CD210 CG210 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
150	90 mm / -		CD210 CG210 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
200	63 mm / -		CD70 CG70 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
200	70 mm / -		CD70 CG70 - - - - -	44	0 - 0.12	38	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
200	90 mm / -		CD70 CG70 - - - - -	44	0 - 0.12	47	M52 x 3	60	h5	137	70	90	20	175	246	73	70	75 mm / -	6	5.6	450	148.5
150	80 mm / -	CGK 80	CD210 CG210 - - - - -	55	0 - 0.12	47	M64 x 4	80	h5	182	95	112	25	230	324	98	85	100 mm / -	6	13.1	750	247.5
150	100 mm / -		CD210 CG210 - - - - -	55	0 - 0.12	47	M64 x 4	80	h5	182	95	112	25	230	324	98	85	100 mm / -	6	13.1	750	247.5
180	80 mm / -		CD210 CG210 - - - - -	55	0 - 0.12	47	M64 x 4	80	h5	182	95	112	25	230	324	98	85	100 mm / -	6	13.1	750	247.5

1)	Cannot be re-lubricated
2)	Can be re-lubricated via lubricating hole in housing
3)	Dimensions may differ depending on the manufacturer
4)	m = weight of swivel head
5)	C0 = static load rating of the swivel head
6)	Fadm = max. admissible load of the swivel head for increasing or alternating loads

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Notice:

Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.
