BOSCH REXROTH
PNP-NC SENSOR
R347602403
$148.92 USD
- BOSCH REXROTH
- Material:R347602403
Quantity in stock: 0
Unpacked Weight: 0.0113 kg
| Cable diameter D tolerance | |
| Cable diameter D | 3.2 |
| Bending cycles footnote | Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Connection type | 0.3 m cable and M8x1 connector, 3-pin with knurled screw connection |
| Permissible ambient temperature | -40 °C ... +85 °C |
| Compatible | CKK, CKR, VKK, MKK/MKR-040 |
| Electrical accessories for linear axes | Magnetic sensors |
| Cable cross-section | 3x0,14 |
| Static bending radius | ‒ |
| Dynamic bending radius | ‒ |
| Torsion-resistant footnote | Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Activation point (dimension x) | 13.65 |
| Torsion-resistant | ‒ |
| Operating voltage | 3,8 ... 30 |
| Weld spark-resistant footnote | Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Weld spark-resistant | ‒ |
| Short-circuit protection | ‒ |
| Suitable for drag chains | nein |
| Suitable for drag chains footnote | Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Load current | |
| Switching function version | Hall, PNP/NC |
| Productgroup ID | 17 |
| MTTFd (per EN ISO 13849-1 ) | ‒ |
| Permissible ambient temperature (max) | |
| Bending cycles | ‒ |
| Dynamic bending radius footnote | Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Permissible ambient temperature (min) | |
| Switching frequency | 2.5 |
| Protection class | IP66 |
| Max. permissible approach speed | 2 |
| Reverse polarity protection | ‒ |
| Weight | 0.0113 |
| Footnote cable cross-section | Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Switch-on suppression | no |
| Functional principle | magnetic |
| Use | Reference / limit switch |
| Pulse extension | ‒ |
| Function indicator | no |
Technische Daten
|
Part number |
R347602403 | R347602303 | |
|
Functional principle |
Magnetic | ||
|
Operating voltage |
V DC |
3,8 ... 30 | 30 |
|
Load current |
mA |
≤ 20 | 500 |
|

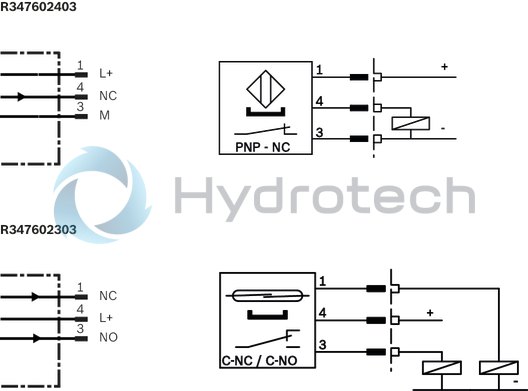

Switching function |
Hall PNP/normally closed (NC) | REED / single-pole changeover, (NC: C+NC, NO: C+NO) | |
|
Connection type |
Line 0.3 m and plug M8x1 3-pin with knurled screws | ||
|
Function indication |
‒ | ||
|
Short-circuit protection |
‒ | ||
|
Reverse polarity protection |
‒ | ||
|
Switch-on suppression |
‒ | ||
|
Switching frequency |
kHz |
2.5 | |
|
Pulse delay (Off delay) |
‒ | ||
|
Maximum permissible starting speed |
m/s |
2 | |
|
Suitable for flexing installation 1) |
‒ | ||
|
Can withstand torsion 1) |
‒ | ||
|
Weld spark resistant 1) |
‒ | ||
|
Cable cross-section 1) |
mm2 |
3x0,14 | |
|
Cable diameter D 2) |
3.2 mm ±0.2 | ||
|
Bending radius, stationary 1) |
‒ | ||
|
Bending radius, flexing 1) |
‒ | ||
|
Bending cycles 1) |
‒ | ||
|
Maximum permissible travel speed 1) |
‒ | ||
|
Maximum permissible acceleration 1) |
‒ | ||
|
Permissible ambient temperature (min ... max) |
-40 °C ... +85 °C | ||
|
Protection type |
IP66 | ||
|
MTTFd (as per EN ISO 13849-1 ) |
‒ | ||
|
Certifications and approvals |
‒ | ||
| 1) | Technical data only for the cast-on connection line (0.3 m) at the magnetic sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. |
| 2) | Technical data only for the cast-on connection line (0,3 m) at the magnetic sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. |

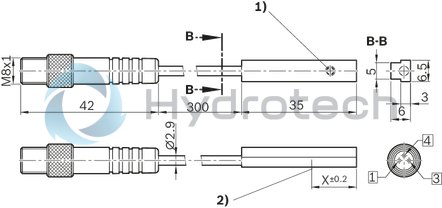

| 1) | Set screw M3 |
| 2) | Activation point |
Dimensions
|
Part number |
Activation point (dimension "X") |
|
mm |
|
| R347602403 | 13.65 |
| R347602303 | 9 |
No certificate for import into
the Chinese market is necessary for these products.
