BOSCH REXROTH
R347601703
$191.59 USD
- BOSCH REXROTH
- Material:R347601703
- Model:SENSOR HALL, PNP 10 M &
Quantity in stock: 0
Unpacked Weight: 0.01 kg
| Cable diameter D tolerance | |
| Cable diameter D | 3.2 |
| Bending cycles footnote | Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Connection type | Cable 10.0 m, 3-pin |
| Galvanized connection ends | ✓ |
| Permissible ambient temperature | -40 °C ... +85 °C |
| Compatible | MKK/MKR-040 |
| Electrical accessories for linear axes | Magnetic sensors |
| Cable cross-section | 3x0,14 |
| Static bending radius | ‒ |
| Dynamic bending radius | ‒ |
| Torsion-resistant footnote | Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Activation point (dimension x) | 13.65 |
| Torsion-resistant | ‒ |
| Operating voltage | 3.8 ... 30 |
| Weld spark-resistant footnote | Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Weld spark-resistant | ‒ |
| Short-circuit protection | ‒ |
| Suitable for drag chains | nein |
| Suitable for drag chains footnote | Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Load current | |
| Switching function version | Hall, PNP/NC |
| Productgroup ID | 17 |
| MTTFd (per EN ISO 13849-1 ) | ‒ |
| Permissible ambient temperature (max) | |
| Bending cycles | ‒ |
| Dynamic bending radius footnote | Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Permissible ambient temperature (min) | |
| Switching frequency | 2.5 |
| Protection class | IP66 |
| Max. permissible approach speed | 2 |
| Reverse polarity protection | ‒ |
| Weight | 0.01 |
| Certifications and approvals | ‒ |
| Footnote cable cross-section | Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Switch-on suppression | no |
| Functional principle | magnetic |
| Use | Limit switch |
| Pulse extension | ‒ |
| Function indicator | no |
Technische Daten
|
Part number |
R347600903 | R347601003 | R347601203 | R347601303 | R347601403 | R913011323 | R913011324 | R347601903 | R347601803 | |
|
Functional principle |
Magnetic | |||||||||
|
Contact type |
Hall, PNP normally closed | REED, changeover | ||||||||
|
Operating voltage |
V DC |
≤ 30 | 3.8 ... 30 | ≤ 30 | 3.8 ... 30 | |||||
|
Current consumption |
mA |
≤ 10 | ||||||||
|
Output current |
mA |
≤ 20 | ||||||||
|
Switching voltage |
V DC |
≤ 100 | ||||||||
|
Switching current |
mA |
≤ 500 | ||||||||
|
Cable length |
mm |
2000 | ||||||||
|
Housing protection class |
IP66 | |||||||||
|
Load current |
mA |
500 | ≤ 20 | 500 | ≤ 20 | |||||
|
Switching function |
REED / changeover contact (NC: C+NC, NO: C+NO) | Hall PNP/normally closed (NC) | Hall, PNP/normally open (NO) | Hall, NPN/normally closed (NC) | Hall, NPN/normally open (NO) | REED / changeover contact (NC: C+NC, NO: C+NO) | Hall PNP/normally closed (NC) | |||
|
Connection type |
Line 2.0 m, 3-pin | |||||||||
|
Galvanized connection ends |
✔ | |||||||||
|
Function indication |
‒ | |||||||||
|
Short-circuit protection |
‒ | |||||||||
|
Reverse polarity protection |
‒ | |||||||||
|
Switch-on suppression |
‒ | |||||||||
|
Switching frequency |
kHz |
2.5 | ||||||||
|
Pulse delay (Off delay) |
‒ | |||||||||
|
Maximum permissible starting speed |
m/s |
2 | ||||||||
|
Suitable for flexing installation 1) |
‒ | |||||||||
|
Can withstand torsion 1) |
‒ | |||||||||
|
Weld spark resistant 1) |
‒ | |||||||||
|
Cable cross-section 1) |
mm2 |
3x0,14 | ||||||||
|
Cable diameter D 1) |
3.2 mm ±0.2 | |||||||||
|
Bending radius, stationary 1) |
‒ | |||||||||
|
Bending radius, flexing 1) |
‒ | |||||||||
|
Bending cycles 1) |
‒ | |||||||||
|
Maximum permissible travel speed 1) |
‒ | |||||||||
|
Maximum permissible acceleration 1) |
‒ | |||||||||
|
Permissible ambient temperature (min ... max) |
-40 °C ... +85 °C | |||||||||
|
Protection type |
IP66 | |||||||||
|
MTTFd (as per EN ISO 13849-1 ) |
‒ | |||||||||
|
Certifications and approvals |
‒ | |||||||||
| 1) | Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. |
Attention: R347601803 has 2 switching points.

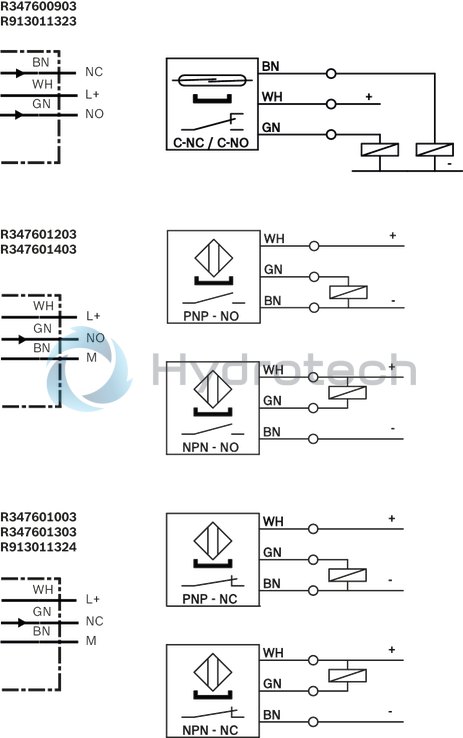

Pin assignment
| 1) | Hall sensor |
| 2) | Reed sensor |
| 3) | White: +3.8 ... 30 VDC |
| 4) | Green: Output |
| 5) | Brown: 0 V ground |
| 6) | Brown |
| 7) | White |
| 8) | Green |
| 1) | Cable length 10 m |
| 2) | Activation point |
| 3) | Active surface |
| 4) | Set screw for retention |

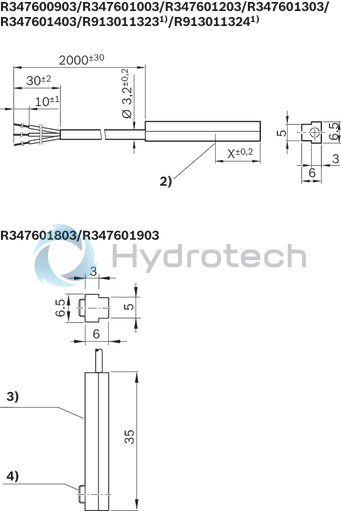

Dimensions
|
Part number |
Activation point (dimension "X") |
|
mm |
|
| R347600903 | 9 |
| R347601003 | 13.65 |
| R347601203 | |
| R347601303 | |
| R347601403 | |
| R913011323 | 9 |
| R913011324 | 13.65 |
| R347601903 | - |
| R347601803 |
No certificate for import into
the Chinese market is necessary for these products.
