BOSCH REXROTH
R345304001
$72.35 USD
- BOSCH REXROTH
- Material:R345304001
- Model:PROXIMITY SWITCH BES517-351-NO-C-03
Quantity in stock: 0
Unpacked Weight: 0.0573 kg
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
Technische Daten
|
Part number |
R345304001 | R345304003 | R345304002 | R345304004 | |
|
Functional principle |
inductive | ||||
|
Operating voltage (min ... max) |
10 V DC ... 30 V DC | ||||
|
Load current |
mA |
≤ 200 | |||
|

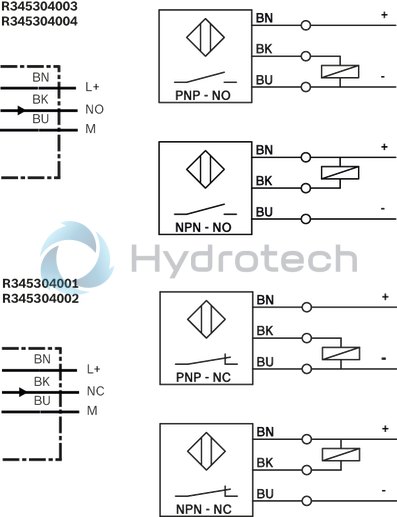

Switching function |
PNP/normally closed (NC) | PNP/normally open (NO) | NPN/normally closed (NC) | NPN/normally open (NO) | |
|
Connection type |
Line 3 m, 3-pin, free line end | ||||
|
Function indication |
✓ | ||||
|
Short-circuit protection |
✓ | ||||
|
Reverse polarity protection |
✓ | ||||
|
Switching frequency |
kHz |
2.5 | |||
|
Maximum permissible starting speed |
depending on the switch tab | ||||
|
Suitable for flexing installation 1) |
‒ | ||||
|
Can withstand torsion 1) |
‒ | ||||
|
Weld spark resistant 1) |
‒ | ||||
|
Cable cross-section 1) |
mm2 |
3x0,14 | |||
|
Cable diameter D 1) |
3.5 mm ±0.15 | ||||
|
Bending radius, stationary 1) |
mm |
12 | |||
|
Bending radius, flexing 1) |
mm |
12 | |||
|
Bending cycles 1) |
‒ | ||||
|
Permissible ambient temperature (min ... max) |
-40 °C ... +70 °C | ||||
|
Protection type |
IP65 | ||||
|
MTTFd (as per EN ISO 13849-1 ) |
yrs |
830 | 585 | ||
| 1) | Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. |
|
Certifications and approvals |
|
|
|
No certificate for import into
the Chinese market is necessary for these products.
