- Model:FEP-E-S 25X25RX3,5-1,2X4
Quantity in stock: 0
The Bosch Rexroth FEP-E-S 25X25RX35-12X4 (R252220001) is a high-precision ball screw assembly designed for linear motion applications where accuracy and rigidity are critical. This single nut with flange features recirculation caps and comes with standard seals and standard axial clearance to ensure smooth operation. The nut has a nominal diameter of 25 mm, a lead of 35 mm, and is designed for right-hand thread direction. The FEP-E-S series is characterized by its robust design which includes a ball diameter that ensures optimal load distribution across multiple ball track turns. This configuration provides the assembly with an impressive dynamic load capacity, although the exact value is specific to the tolerance grade T. Users should note that different tolerance grades may require the use of a correction factor as detailed in the General Technical Notes and Information Technical Data. This screw drive nut operates within a temperature range from minimum to maximum bearing temperatures—details of which are specified in the technical notes—making it suitable for various operating environments. It can withstand continuous operating temperatures with temporary peaks at higher levels, measured on the outer shell of the nut. The Bosch Rexroth FEP-E-S 25X25RX35-12X4 ball screw assembly also has a predefined maximum permissible linear speed, which is critical for ensuring safe and effective operation within mechanical systems. The product's weight and dimensions are tailored to meet industry standards for compatibility and performance. Overall, this ball screw assembly from Bosch Rexroth is engineered for durability and performance, making it ideal for precision applications that demand high load capacities and reliable linear motion control.

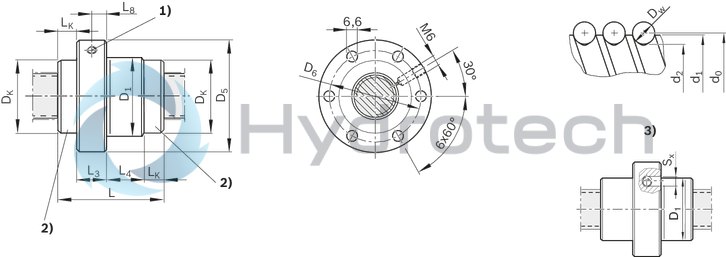

Single nut with flange with recirculation caps FEP-E-S, size 25 x 25R x 3.5 - 4.8
Single nut with flange with recirculation caps FEP-E-S with standard seal and standard axial clearance Nominal diameter d0 = 25 Lead P = 25 (right) Ball diameter Dw = 3.5 Number of ball track turns i = 4.8
Unpacked Weight: 0.510 kg
Product overview
| Rexroth connection dimensions |
| With seals |
| Preload class: C0, C00, C1 |
| Tolerance grade: T5, T7, T9 |
| Data Sheet | Download Data Sheet |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Bearing temperature max | |
| Nut type | FEP-E-S single nut with flange with recirculation caps |
| Series | Speed series |
| Bearing temperature min | |
| Productgroup ID | 17 |
| Nut or screw | Screw drive nut |
| Screw drive version (drive type) | Ball screw assembly |
| Maximum operating temperature | |
| Footnote dynamic load capacity C | The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Bearing temperature | -15 °C ... +80 °C |
| Category | C |
| Minimum operating temperature | |
| Maximum permissible linear speed vmax | 150 |
| Operating temperature | -10 °C ... +80 °C |
| Direction of lead | Right |
| Lead | 25 |
| Footnote static load capacity C0 | The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Static load rating C0 | 39400 |
| Footnote permissible operating temperature (min...max) | Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case. |
| Dynamic load capacity C | 19700 |
| Size L | 52 |
| Footnote operating temperature max. | Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case. |
| Footnote maximum permissible speed vmax | See “Characteristic speed d0 • n“ (see General Technical Notes and Information, “Technical Data” (Technical Notes), and “Critical speed ncr” (see General Technical Notes and Information, “Project planning notes”) |
| Nominal size | 25 x 25R x 3,5 - 4,8 |
| Weight | 0.726 |
Technical data for nuts
|
Size |
C |
C0 |
vmax |
Mass |
|
d0 x P x Dw - i |
N |
N |
m/min |
kg |
| 20 x 40R x 3,5 - 4 | 14000 1) | 26200 1) | 240 2) | 0.51 |
| 25 x 25R x 3,5 - 4,8 | 19700 1) | 39400 1) | 150 2) | |
| 32 x 32R x 3,969 - 4,8 | 26300 1) | 57600 1) | 0.78 | |
| 32 x 64R x 3,969 - 4 | 21100 1) | 49000 1) | 300 2) | 1.06 |
| 1) | The load ratings are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see general technical notes and information, “Technical Data”, (technical notes). |
| 2) | See "characteristic speed d0 • n" (see General Technical Notes and Information "Technical Data" (Technical Notes), and "Critical Speed ncr" (see General Technical Notes and Information, "Project planning notes") |
Operating conditions
|
Size |
Admissible operating temperature (min ... max) 1) |
Admissible storage temperature (min ... max) |
|
d0 x P x Dw - i |
||
| 20 x 40R x 3,5 - 4 | -10 °C ... +80 °C | -15 °C ... +80 °C |
| 25 x 25R x 3,5 - 4,8 | ||
| 32 x 32R x 3,969 - 4,8 | ||
| 32 x 64R x 3,969 - 4 |
| 1) | Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut). |
Legend
|
Symbol |
Description |
Unit |
|
d0 |
Nominal diameter |
mm |
|
P |
Lead (R = right-hand) |
|
|
Dw |
Ball diameter |
mm |
|
i |
Number of ball track turns |
|
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
vmax |
Maximum permissible speed |
m/min |
Technical notes
| 1) | Lube port |
| 2) | Plastic recirculation cap |
| 3) | Nut rework: Axial lube port |
Dimensions
|
Size |
d1 |
d2 |
D1 |
D5 |
D6 |
DK |
L |
L3 |
L4 |
L8 |
LK |
|
g6 |
|||||||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 20 x 40R x 3,5 - 4 | 19 | 16.4 | 38 | 63 | 50 | 37.5 | 57 mm ±0.5 | 12 | 23 | 8 | 11 |
| 25 x 25R x 3,5 - 4,8 | 24 | 21.4 | 48 | 73 | 60 | 40 | 52 mm ±0.5 | 14 | 5 | 13 | |
| 32 x 32R x 3,969 - 4,8 | 31 | 27.9 | 56 | 80 | 68 | 50 | 68 mm ±0.5 | 15 | 21 | 7.7 | 16 |
| 32 x 64R x 3,969 - 4 | 88 mm ±0.5 | 45 | 7.5 | 14 |
Legend
|
Symbol |
Description |
Unit |
|
d0 |
Nominal diameter |
mm |
|
P |
Lead (R = right-hand) |
|
|
Dw |
Ball diameter |
mm |
|
i |
Number of ball track turns |
Attention: Do not exert force on the plastic recirculation caps or allow them to collide with end stops.
Nut housing MGS
Nut housing MGS
Steel nut housings MGS are designed for FEM-E-S, FDM-E-S, FEP-E-S and SEM-E-S nuts.Catalog
Service
CAD data
Arrestor nut
Arrestor nut
Catalog
Service
Supplied only as complete ball screw assembly.
