BOSCH REXROTH
R181024211


$3,039.16 USD
  • BOSCH REXROTH
  • Material:R181024211
  • Model:KWH 2505 BS1A

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CLAMPING ELEMENT KWH 2505 BS1A (R181024211) is a hydraulic clamping unit designed for high precision and reliability in securing components on SNS roller guide rails. This clamping element boasts a compact design that is compatible with DIN standards, ensuring it can be seamlessly integrated into various industrial applications. With the capability to provide dynamic and static stabilization in the axial direction, this unit offers both pressure clamping and braking functionalities. Constructed from solid, rigid steel with a chemically nickel-plated finish, the KWH 2505 BS1A ensures durability and resistance to wear. Its integrated all-round sealing and special pressure diaphragm technology contribute to its maximum functional reliability by preventing pressure losses or leakage. The clamping element features threaded connections on both sides for hydraulic hook-up, facilitating ease of installation. This model provides high positioning accuracy and features an innovative design that allows for continuously adjustable pressure ranging from 50 to 250 bar. It comes equipped with integrated positive-locking contact profiles which deliver maximum axial rigidity, capable of supporting over 1 million clamping cycles with a Bd value rating. The KWH 2505 BS1A operates within a permissible ambient temperature range of -20°C to 80°C and has been tested for holding force in accordance with ISOVG standards using lubricated layers. It is designed to accommodate various sizes of profiled rail systems including sizes A, B, E, H, N, and S. The weight of the unit stands at approximately 3.2 kg. In terms of functionality, the clamping element utilizes hydraulic pressure up to 250 bar for engagement and employs a pre-tensioned return spring for rapid decompression cycles. This ensures swift response times during operation while maintaining safety and efficiency in demanding environments where precise motion control is critical.


Hydraulic clamping unit KWH, 25

Hydraulic clamping unit KWH, FLS for roller rail systems
Size = 25
Can be used on all SNS roller guide rails

Unpacked Weight: 1.17 kg

Functional principle

Hydraulic pressure: 50 - 150 bar

Clamps and brakes with pressure

The large-scale clamping profiles are pressed directly through the hydraulic oil via a piston principle to the flanks of the Roller Guide Rail.

technical illustration-R181024211-Hydraulic clamping unit KWH, 25

Hydraulic pressure: 0 bar

Decompression with spring force

A pre-tensioned return spring allows for short decompression cycles.

technical illustration-R181024211-Hydraulic clamping unit KWH, 25
Very high axial holding forces
Dynamic and static stabilization in the axial direction
Compact design, compatible with DIN 645
Clamps and brakes with pressure
Can be used on all SNS roller guide rails
Threaded on both sides for the hydraulic connection
Solid, rigid steel housing, chemically nickel-plated
High positioning accuracy
Integrated all-round sealing
Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
Integrated positive-locking, large-surface contact profiles for maximum axial rigidity
10 million clamping cycles (B10d value)
10 million clamping cycles (B10d value)
Size B192
Size H (profiled rail system)36
Holding force2200
Height of runner block30
Max. holding force2200
Productgroup ID17
Size E3 (profiled rail systems)40
Size F9.5
Size B3105
Size E2 (profiled rail systems)45
Permissible ambient temperature (max)+70
Footnote 2 holding forceAt 100 bar
Permissible ambient temperature​0 °C ... +70 °C
Displacement0.6
Max. hydraulic operating pressure:100
Size A (profiled rail systems)70
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Permissible ambient temperature (min)0
Size S1 (profiled rail systems)6.8
Width of runner block70
Size N2 (profiled rail systems)7.3
Height of runner block with guide rail36
Linear guide typeAccessories for profiled rail systems
Type clamping and braking unitsHydraulic
Size N1 (profiled rail systems)9
Size E1 (profiled rail systems)57
Accessories for profiled rail systemsClamping and braking units
Size S2 thread diameter (profiled rail systems)M8
Weight1.17
Size H1 (profiled rail systems)30
Nominal size25

General technical data

Size

25 35 45 55 65 100 125

Holding force 1)

N

2200 2) 5700 3) 9900 3) 13700 3) 22700 3) 34000 3) 46000 3)

Displacement 4)

cm³

0.6 1.1 1.8 2.4 3.8 5 7.6

Max. hydraulic operating pressure

bar

100 150

Mass

kg

1.22 2.69 5.32 8.4 17.3 29.1 53.7

Operating conditions

Size

25 35 45 55 65 100 125

Permissible ambient temperature (min ... max)

​0 °C ... +70 °C
1) The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see “Technical data and calculations.”
2) At 100 bar
3) At 150 bar
4) Per clamping

Technical data and calculations

Clamping of heavy handling systems clamping of machine tables from heavily machined machining centers

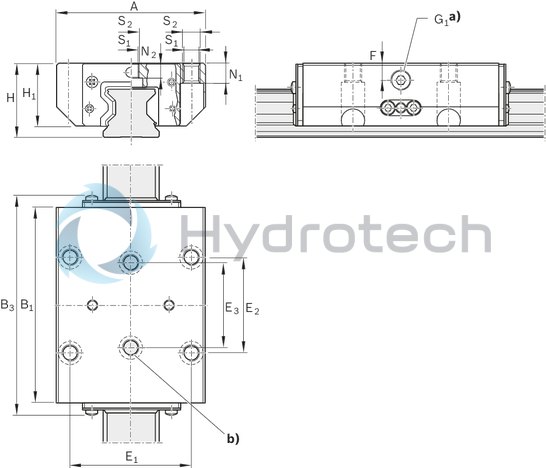

technical illustration-R181024211-Hydraulic clamping unit KWH, 25
a) Hydraulic connection*) G1 on two sides
b) In addition, both middle mounting holes must be used!
*) Only one connection needed.
All connections sealed upon delivery.

Dimensions

Size

25 35 45 55 65 100 125

A

mm

70 100 120 140 170 250 320

B1

mm

92 120.5 155 184 227 200 227

B3

mm

99.3 128 166 197 238 222.6 246

E1

mm

57 82 100 116 142 200 270

E2

mm

45 62 80 95 110 150 102.5

E3

mm

40 52 60 70 82 150 102.5

F

mm

9.5 12 15 16 20 50

G1

3 Verstellelemente

1/8" 1/4"

H

mm

36 48 60 70 90 120 160

H1

mm

30 41 51 58 76 105 135

N1 1)

mm

9 12 15 18 23 30 45

N2 2)

mm

7.3 11 13.5 13.7 21.5 17.5 29

S1

mm

6.8 8.6 10.5 12.5 14.5 17.5 24

S2

M8 M10 M12 M14 M16 M20 M27
1) For mounting from below with ISO 4762
2) For mounting from below with DIN 7984

Notes for mounting

Stop surfaces can be used on two sides. Make sure the connection structure is rigid. Observe the mounting instructions prior to commissioning. Check whether the sealing lips of the end seals are resting evenly on the roller guide rail. Realign if necessary.

Notes on lubrication

Initial filling of hydraulic oil HLP46 Check for compatibility when using different oils
