- Model:LUBRICATING UNIT 25
Quantity in stock: 0
The Bosch Rexroth LUBRICATING UNIT 25 (R181022500) is a sophisticated front lube unit designed specifically for roller rail systems, ensuring optimal lubrication and maintenance of the RSHP roller runner blocks and the latest generation of roller runner blocks. This unit facilitates a travel distance of up to 20,000 km without the need for relubrication, significantly reducing downtime and maintenance efforts. The product is engineered to require only initial greasing of the Roller Runner Block, with front lube units positioned on both sides to minimize lubricant loss and oil consumption. The R181022500 model boasts an efficient lubricant distribution construction that targets lubrication directly onto the running tracks and top surfaces of the roller guide rails, promoting consistent performance and longevity of the system. It also features an oil tank and front seals that contribute to its reduced oil consumption capabilities. The front lube unit can be easily refilled through a lube nipple located on its endface or side, adding convenience for users. With a maximum operating temperature range from -10°C to +80°C, it is suitable for various environmental conditions. The unit comes in size H for profiled rail systems and has been designed with a nominal size that ensures compatibility with different sizes of profiled rail systems including sizes B, E, N, A, as well as H profiled rail systems. It allows for easy installation and maintenance with a tightening torque specification of 2.5 Nm. Additionally, the LUBRICATING UNIT 25 weighs approximately 0.1 kg which makes it lightweight yet durable enough to withstand rigorous applications. This product is an essential accessory for profiled rail systems requiring reliable lubrication solutions that support long service intervals and consistent operation in industrial linear guide applications.
Front lube unit (RSF) - 25
Front lube unit for roller rail systems
Size 25
Unpacked Weight: 0.0556 kg
Lubricant distribution
Due to the special lubricant distribution construction, lubrication occurs primarily where it is needed: directly on the running tracks and the top surfaces of the roller guide rails.
1 Top surfaces of the roller guide rails
2 Running tracks of the roller rail system
3 Oil tank
4 Front seals
| Front lube units suitable for RSHP roller runner blocks and roller runner block generation 1 |
| For a travel distance of up to 5,000 km without re-lubrication |
| Roller Runner Block only needs initial lubrication with grease |
| Front lube units on both sides of the Roller Runner Block |
| Low lubricant loss |
| Reduced oil consumption |
| No lubrication lines |
| Front lube unit can be refilled using the lube nipple on the end-face or at the side. |
| Size 25: Lube connection on the end-face of the front lube unit is suitable for the grease lubrication of the Roller Runner Block. For this purpose, a lube pin is attached. For a detailed instruction for mounting with size 25, please refer to the Roller Rail System instruction. |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size H (profiled rail system) | 36 |
| Size B5 (profiled rail systems) | 13 |
| Oil quantity | 2.6 |
| Productgroup ID | 17 |
| Maximum operating temperature | |
| Permissible ambient temperature (max) | |
| Permissible ambient temperature | -10 °C ... +40 °C |
| Footnote size H | Dimension with regard to mounting surface of the roller runner block for a standard higher version |
| Size H3 | 29.2 |
| Possible travel distance s with front lube units | 5000 |
| Size H4 | 0.5 |
| Permissible ambient temperature (min) | |
| Operating temperature | +60 °C |
| Tightening torque | 0.7 |
| Size E8 (profiled rail systems) | 33.4 |
| Height of runner block with guide rail | 36 |
| Relubrication | 0.8 |
| Linear guide type | Accessories for profiled rail systems |
| Size N8 (profiled rail systems) | 5 |
| Size E9 (profiled rail systems) | 8.4 |
| Size A4 (profiled rail system) | 44 |
| Accessories for profiled rail systems | Lubrication |
| Weight | 0.0556 |
| Nominal size | 25 |
General technical data
|
Size |
Oil |
maximum operating temperature |
Mass |
|
cm³ |
°C |
g |
|
| 25 1) | 2.6 | + 60 | 24 |
| 35 | 8.3 | 46 | |
| 45 | 13.8 | 88 | |
| 55 | 22.8 | 122 | |
| 65 | 47.6 | 225 |
| 1) | For RSHP Roller Runner Blocks in preparation |
| a) | Size 65 |

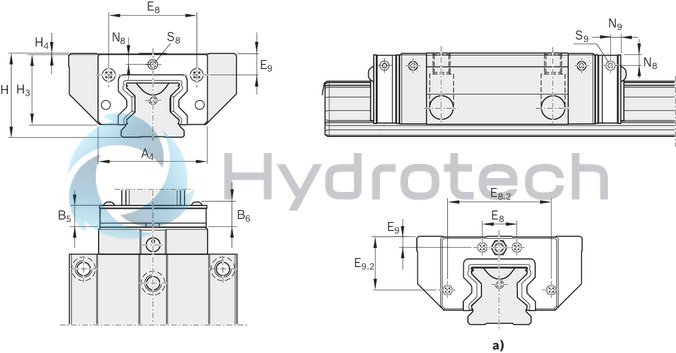

Dimensions
|
Size |
25 1) | 35 | 45 | 55 | 65 | |
|
A4 |
mm |
44 | 64 | 78 | 91.5 | 119 |
|
B5 |
mm |
13 | 16.5 | 18.5 | 20.3 | 21 |
|
B6 |
mm |
15.5 | 19 | 21.8 | 24.3 | |
|
E8 |
mm |
33.4 | 50.3 | 62.9 | 74.2 | 35 |
|
E8.2 |
mm |
- | 106 | |||
|
E9 2) |
mm |
8.4 | 13.1 | 16.7 | 18.85 | 9.3 |
|
E9 3) |
mm |
12.4 | 20.1 | 26.75 | 28.95 | - |
|
E9.2 |
mm |
- | 55 | |||
|
H 2) |
mm |
36 | 48 | 60 | 70 | 90 |
|
H 3) |
mm |
40 | 55 | 70 | 80 | - |
|
H3 |
mm |
29.2 | 40 | 50 | 56.3 | 74.8 |
|
H4 2) |
mm |
0.5 | 0.75 | |||
|
H4 3) |
mm |
4.5 | 7.75 | 10.75 | - | |
|
N8 2) |
mm |
5 | 6.25 | 7.25 | 8.25 | 8.55 |
|
N8 3) |
mm |
9 | 13.25 | 17.25 | 18.25 | - |
|
N9 |
mm |
- | 5.5 | 7.5 | 9 | 8.5 |
|
S8 |
M6 | |||||
|
S9 |
- | M6 | ||||
| 1) | For RSHP Roller Runner Blocks in preparation |
| 2) | Dimension with regard to mounting surface of roller runner block for a standard higher version |
| 3) | Dimension with regard to mounting surface of roller runner block for a higher version |
Prior to assembling the front lube units, an initial lubrication of the roller runner blocks with grease lubricant is required! See Roller Rail Systems - General technical notes and information, chapter "Maintenance".
Assembly of front lube units
The coated screws required for attachment additional end seals are supplied along with the unit.

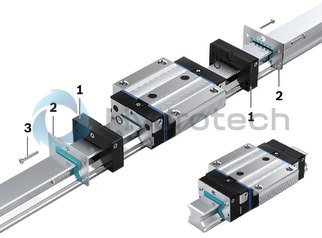

In each case, mount a front lube unit (1) on both sides of the roller runner block! Do not remove the roller runner block from the rail! Slide on the front lube units (1) and end seals (2) and align them on the roller runner block. Tighten screws (3) with tightening torque MA (see table).
Maximum tightening torque MA
|
Size |
Pos. 3
|
Tightening torque MA in Nm |
|
25 |
M3 x 18 |
0,7 |
|
35 |
M3 x 22 |
0,7 |
|
45 |
M4 x 25 |
1,0 |
|
55 |
M5 x 30 |
1,3 |
|
65 |
M4 x 30 |
1,0 |
Notes
The coated screws required for attachment on the roller runner block, additional end seals and lube nipples are supplied along with the unit. The front lube units are already filled with oil (Mobil SHC 639) and can be mounted immediately after basic lubrication of the roller runner blocks.
Lubrication intervals for roller runner blocks with front lube units
Check the front lube units once the travel distance as specified in Figure (see below) is attained.Upon reaching the travel distance - or after no more than 2 years - we recommend replacing the front lube units and re-lubricating the roller runner block prior to assembly of the new front lube unit. In clean operating conditions, the roller runner blocks (sizes 35 to 65 on the side and size 25 at the front) can be re-lubricated with grease (Dynalub 510) (see table "Re-lubrication in cm3").
Attention:
If other lubricants are used, this may lead to a reduction in the lubrication intervals, the achievable travel in short-stroke applications, and the load capacities. Possible chemical interactions between the plastic materials, lubricants and preservative oils must also be taken into account. The recommended lubrication intervals depend on environmental factors, load and load type. Examples of environmental factors include swarf, mineral abrasion (or similar), solvent and temperature. Examples of load and load type are oscillations, shocks and tilting. The operating conditions are not known to the manufacturer. Only the user's own attempts or accurate monitoring can yield safety over the lubrication intervals. No water-based coolant/lubricant on the roller guide rails and roller runner block!
re-lubrication in cm3
|
Size |
re-lubrication in cm3 |
|
25 |
0,8 |
|
35 |
0,9 |
|
45 |
1,0 |
|
55 |
1,4 |
|
65 |
2,7 |

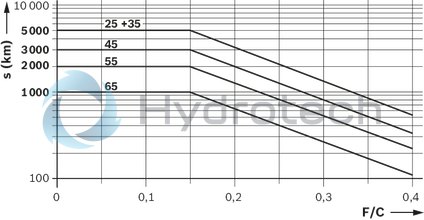

Load-dependent lubrication intervals for roller runner block with front lube units, size 25 to 65
This applies to the following conditions:
Roller runner block lubricants: Dynalub 510 (grease NLGI 2) or alternatively Castrol Longtime PD 2 (grease NLGI 2) Front lube units lubricant: Mobil SHC 639 (synthetic oil) Maximum speed: vmax = 2 m/s No media pressurization Standard seals Ambient temperature: T = 10 – 40°C
Note
The load ratio F/C is the quotient of the equivalent dynamic load on bearing F (making allowance for the preload for C2 or C3) divided by the dynamic load capacity C (see “Roller Rail Systems – General technical notes and information,” section “Technical data,” general technical data and calculations).
Legend
|
Symbol |
Description |
Unit |
|
s |
Lubrication interval as travel distance |
km |
|
C |
Dynamic load capacity |
N |
|
F |
Dynamic equivalent load |
N |
