R161954251


$5,333.41 USD
  • BOSCH REXROTH
  • Material:R161954251
  • Model:KWH 5505 AS2A

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CLAMPING ELEMENT KWH 5505 AS2A (R161954251) is a hydraulic clamping unit designed to provide secure and precise clamping for ball rail systems. This versatile clamping element is suitable for use with all SNS ball guide rails, ensuring broad compatibility across various applications. With its solid, rigid steel housing that's chemically nickel-plated, it offers durability and resistance to wear and corrosion. The KWH 5505 AS2A is engineered for high positioning accuracy and features a compact design that complies with DIN standards. It is equipped with an integrated all-around sealing system which, along with special pressure diaphragm technology, ensures maximum functional reliability without pressure losses or leakage. The unit's positivelocking contact profiles offer exceptional axial rigidity, contributing to the system's stability during operation. This model can achieve a holding force that varies depending on the size of the profiled rail system it is used with, and it can operate within a permissible ambient temperature range of -20°C to +80°C. The hydraulic operating pressure can be continuously adjusted from 50 to 160 bar, providing flexibility to meet different application requirements. Additionally, the clamping element boasts an impressive service life of up to 1 million clamping cycles. For ease of installation and maintenance, the KWH 5505 AS2A features threaded connections on both sides for hydraulic hook-up. Its nominal size and weight are optimized for seamless integration into existing setups without adding excessive bulk or complexity. In summary, the Bosch Rexroth CLAMPING ELEMENT KWH 5505 AS2A (R161954251) offers reliable clamping capabilities with adjustable pressure settings in a robust package designed for longevity and versatility in various industrial applications involving ball rail systems.


Hydraulic clamping unit KWH, 55

Hydraulic clamping unit KWH, SLS for ball rail systems
Size = 55
Can be used on all SNS ball guide rails

Unpacked Weight: 6.32 kg

Functional principle

Hydraulic pressure: 50 - 150 bar

Clamps with pressure

The large-scale clamping profiles are pressed directly by the hydraulic oil onto the flanks of the Ball Guide Rail via a piston principle.

technical illustration-R161954251-Hydraulic clamping unit KWH, 55

Hydraulic pressure: 0 bar

Decompression with spring force

A pre-tensioned return spring allows for short decompression cycles.

technical illustration-R161954251-Hydraulic clamping unit KWH, 55
Can be used on all SNS ball guide rails
Integrated all-round sealing
Compact design, compatible with DIN 645
Clamps and brakes with pressure
Can be used on all SNS ball guide rails
Threaded on both sides for the hydraulic connection
Solid, rigid steel housing, chemically nickel-plated
High positioning accuracy
Continuously adjustable pressure from 50 - 150 bar
Integrated all-round sealing
Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
Integrated positive-locking, large-surface contact profiles for maximum axial rigidity
10 million clamping cycles (B10d value)
Displacement footnotePro Klemmvorgang
Size B1 (profiled rail systems)184
Size H (profiled rail system)70
Holding force13700
Height of runner block57
Max. holding force13700
Productgroup ID17
Size F16
Size E2 (profiled rail systems)95
Permissible ambient temperature (max)+70
Permissible ambient temperature​0 °C ... +70 °C
Displacement2.4
Max. hydraulic operating pressure:150
Size A (profiled rail systems)100
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Permissible ambient temperature (min)0
Width of runner block100
Holding force footnote 3At 150 bar
Size N3 (profiled rail systems)18
Height of runner block with guide rail70
Linear guide typeAccessories for profiled rail systems
Type clamping and braking unitsHydraulic
Size E1 (profiled rail systems)75
Accessories for profiled rail systemsClamping and braking units
Size S2 thread diameter (profiled rail systems)M12
Weight6.32
Size H1 (profiled rail systems)57
Nominal size55

General technical data

Size

25 30 35 45 55 65

Holding force 1)

N

1600 2) 3000 2) 3500 2) 7400 2) 13700 3) 22700 3)

Displacement 4)

cm³

0.6 0.7 1.1 1.8 2.4 3.8

Max. hydraulic operating pressure

bar

100 150 110 150

Mass

kg

1.22 2.09 2.02 4 6.1 14.4

Operating conditions

Size

25 30 35 45 55 65

Permissible ambient temperature (min ... max)

​0 °C ... +70 °C
1) The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see “Technical data and calculations.”
2) At 100 bar
3) At 150 bar
4) Per clamping

Technical data and calculations

Clamping of heavy handling systems clamping of machine tables from heavily machined machining centers

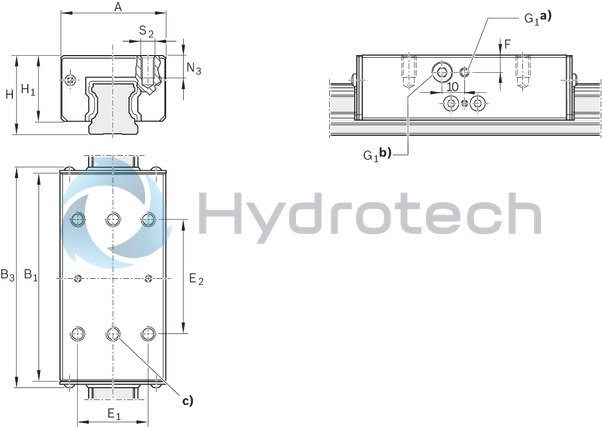

technical illustration-R161954251-Hydraulic clamping unit KWH, 55
a) Hydraulic connection*) G1 on two sides
b) Hydraulic connection*) G1 on two sides for size 25- 30
c) In addition, both mounting holes must be used!
*) Only one connection needed.
All connections sealed upon delivery.

Dimensions

Size

25 30 35 45 55 65

A

mm

48 60 70 86 100 126

B1

mm

92 103.5 120.5 155 184 227

B3max

mm

102.3 115.4 134 170 201 256

E1

mm

35 40 50 60 75 76

E2

mm

50 60 72 80 95 120

F

mm

8 9 12 15 16 20

G1

3 Verstellelemente

1/8" 1/4"

H

mm

36 42 48 60 70 90

H1

mm

29.5 35 40 50 57 76

N3

mm

8 13 15 18 21

S2

M6 M8 M10 M12 M16

Note for mounting

Stop surfaces can be used on two sides. Make sure the connection structure is rigid. Observe the mounting instructions prior to commissioning. Check whether the sealing lips of the front seals rest evenly on the Ball Guide Rail. Realign if necessary.

Notes on lubrication

Initial filling of hydraulic oil HLP46 Check for compatibility when using different oils
