R161952130
$44.04
- BOSCH REXROTH
- Material:R161952130
Quantity in stock: 16
Front seal - 55
Front seal for ball rail systems
Size 55
Unpacked Weight: 0.0999 kg

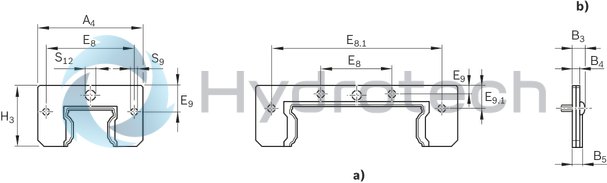

| Material: Corrosion resistant steel as per DIN EN 10088 with plastic seal ring |
| Design: bright |
| Two-piece |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size H3 (profiled rail systems) | 56 |
| Size B5 (profiled rail systems) | 5.5 |
| Productgroup ID | 17 |
| Size B3 (profiled rail systems) | 7.7 |
| Size B3 | 7.7 |
| Size B4 | 4 |
| Size diameter S12 (profiled rail systems) | 7 |
| Size B4 (profiled rail systems) | 4 |
| Size diameter S9 (profiled rail systems) | 6 |
| Size E8 (profiled rail systems) | 80 |
| Linear guide type | Accessories for profiled rail systems |
| Size E9 (profiled rail systems) | 21.5 |
| Size A4 (profiled rail system) | 98 |
| Accessories for profiled rail systems | Seals |
| Weight | 0.0999 |
| Nominal size | 55 |
| a) | Front seal, wide |
| b) | Fixing screw shown is an example |
Dimensions
|
Size |
15 | 20 1) | 25 1) | 30 | 35 | 45 | 55 | 20/40 2) 3) | 25/70 2) | 35/90 2) | |
|
A4 |
mm |
32 | 42 | 47 | 59 | 69 | 85 | 98 | 60 | 99 | 128.6 |
|
B3 |
mm |
4.3 | 4.9 | 5.7 | 7.1 | 7.7 | 4.6 | 4.9 | 5.7 | ||
|
B4 |
mm |
2.2 | 2.5 | 3.3 | 4 | 2.5 | 3.3 | ||||
|
B5 |
mm |
3 | 3.3 | 4.5 | 5.5 | 3.3 | 4.5 | ||||
|
E8 |
mm |
24.55 | 32.4 | 38.3 | 48.4 | 58 | 69.8 | 80 | 18 | 35 | 79 |
|
E8.1 |
mm |
- | 53.4 | 83.5 | 116 | ||||||
|
E9 |
mm |
6.3 | 6.8 | 11 | 14.1 | 17 | 20.5 | 21.5 | 2.65 | 4.3 | 5.8 |
|
E9.1 |
mm |
- | 7.35 | 10.7 | 28.9 | ||||||
|
H3 |
mm |
19 | 24.3 | 29 | 34.5 | 39.5 | 49.5 | 56 | 21.7 | 28.6 | 41 |
|
Ø S9 |
mm |
3,5 | 4 | 5 | 6 | 3,5 | 4 | ||||
|
Ø S12 |
mm |
4,3 | 5,1 | 7 | 4 | 7,3 | 7 | ||||
| 1) | Not for ball runner blocks F.N (flanged ... low) and S.N (slimline ... low) |
| 2) | Wide ball rail system |
| 3) | Attention: The new front seal is not combinable with existing ball guide rail R167. 8! |
