R161944211


$4,492.83 USD
  • BOSCH REXROTH
  • Material:R161944211
  • Model:KWH 4505 AS1A

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CLAMPING ELEMENT KWH 4505 AS1A (R161944211) is a robust hydraulic clamping unit designed for high-precision applications. This unit is specifically engineered to be compatible with all SNS ball guide rails, enhancing its versatility across various profiled rail systems including sizes A, B, E, H, N, and S. It boasts an integrated all-around sealing and a compact design that adheres to DIN standards, ensuring a secure fit in diverse operating environments. With its solid and rigid steel housing that is chemically nickel-plated, the KWH 4505 AS1A promises durability and resistance against corrosion. The clamping element features special pressure diaphragm technology which guarantees maximum functional reliability without any pressure losses or leakage. It also comes with integrated positive-locking contact profiles that provide maximum axial rigidity. The unit's high positioning accuracy is ideal for tasks requiring precision, and it can sustain up to 10 million clamping cycles (Bd value), signifying its long service life. The hydraulic pressure can be continuously adjusted from 50 to 450 bar allowing for optimal customization according to specific requirements of the application. Furthermore, the KWH 4505 AS1A operates effectively within a permissible ambient temperature range of -20°C to +80°C. It has been designed with threaded connections on both sides for ease of hydraulic integration. For safety and reliability in operation, the clamping element incorporates a pretensioned return spring which enables short decompression cycles after pressurization. This clamping unit's nominal size accommodates various runner block heights and widths while maintaining an impressive holding force at different pressures as detailed in the technical data provided by Bosch Rexroth. With its meticulous design focused on efficiency and reliability, this hydraulic clamping element is an essential component for users seeking enhanced stability in their linear guide applications.


Hydraulic clamping unit KWH, 45

Hydraulic clamping unit KWH, FLS for ball rail systems
Size = 45
Can be used on all SNS ball guide rails

Unpacked Weight: 5.318 kg

Functional principle

Hydraulic pressure: 50 - 150 bar

Clamps with pressure

The large-scale clamping profiles are pressed directly by the hydraulic oil onto the flanks of the Ball Guide Rail via a piston principle.

technical illustration-R161944211-Hydraulic clamping unit KWH, 45

Hydraulic pressure: 0 bar

Decompression with spring force

A pre-tensioned return spring allows for short decompression cycles.

technical illustration-R161944211-Hydraulic clamping unit KWH, 45
Can be used on all SNS ball guide rails
Integrated all-round sealing
Compact design, compatible with DIN 645
Clamps with pressure
Can be used on all SNS ball guide rails
Threaded on both sides for the hydraulic connection
Solid, rigid steel housing, chemically nickel-plated
High positioning accuracy
Continuously adjustable pressure from 50 - 150 bar
Integrated all-round sealing
Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
Integrated positive-locking, large-surface contact profiles for maximum axial rigidity
10 million clamping cycles (B10d value)
Displacement footnote클램핑당
Size B1 (profiled rail systems)155
Size H (profiled rail system)60
Holding force9900
Height of runner block50
Max. holding force9900
Productgroup ID17
Size E3 (profiled rail systems)60
Size F15
Size E2 (profiled rail systems)80
Permissible ambient temperature (max)+70
Permissible ambient temperature​0 °C ... +70 °C
Displacement1.8
Max. hydraulic operating pressure:150
Size A (profiled rail systems)120
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Permissible ambient temperature (min)0
Size S1 (profiled rail systems)10.5
Width of runner block120
Holding force footnote 3At 150 bar
Size N2 (profiled rail systems)12.4
Height of runner block with guide rail60
Linear guide typeAccessories for profiled rail systems
Type clamping and braking unitsHydraulic
Size N1 (profiled rail systems)15
Size E1 (profiled rail systems)100
Accessories for profiled rail systemsClamping and braking units
Size S2 thread diameter (profiled rail systems)M12
Weight5.318
Size H1 (profiled rail systems)50
Nominal size45

General technical data

Size

25 30 35 45 55 65

Holding force 1)

N

2200 2) 3000 2) 5700 3) 9900 3) 13700 3) 22700 3)

Displacement 4)

cm³

0.6 0.7 1.1 1.8 2.4 3.8

Max. hydraulic operating pressure

bar

100 150

Mass

kg

1.22 2.09 2.69 5.32 8.4 17.3

Operating conditions

Size

25 30 35 45 55 65

Permissible ambient temperature (min ... max)

​0 °C ... +70 °C
1) The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see “Technical data and calculations.”
2) At 100 bar
3) At 150 bar
4) Per clamping

Technical data and calculations

Clamping of heavy handling systems clamping of machine tables from heavily machined machining centers

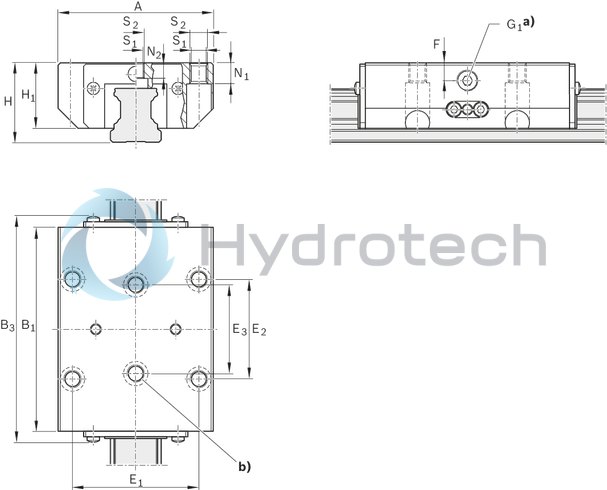

technical illustration-R161944211-Hydraulic clamping unit KWH, 45
a) Hydraulic connection*) G1 on two sides
b) In addition, both middle mounting holes must be used!
*) Only one connection needed.
All connections sealed upon delivery.

Dimensions

Size

25 30 35 45 55 65

A

mm

70 90 100 120 140 170

B1

mm

92 103.5 120.5 155 184 227

B3max

mm

102.3 115.4 133 170 201 256

E1

mm

57 72 82 100 116 142

E2

mm

45 52 62 80 95 110

E3

mm

40 44 52 60 70 82

F

mm

8 10.5 12 15 16 20

G1

3 Verstellelemente

1/8" 1/4"

H

mm

36 42 48 60 70 90

H1

mm

29.5 35 40 50 57 76

N1 1)

mm

9 11 12 15 18 23

N2 2)

mm

7 8 10.2 12.4 13.5 14

S1

mm

6.8 8.6 10.5 12.5 14.5

S2

M8 M10 M12 M14 M16
1) For mounting from below with ISO 4762
2) For mounting from below with DIN 7984

Note for mounting

Stop surfaces can be used on two sides. Make sure the connection structure is rigid. Observe the mounting instructions prior to commissioning. Check whether the sealing lips of the front seals rest evenly on the Ball Guide Rail. Realign if necessary.

Notes on lubrication

Initial filling of hydraulic oil HLP46 Check for compatibility when using different oils
