BOSCH REXROTH
R161924274

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

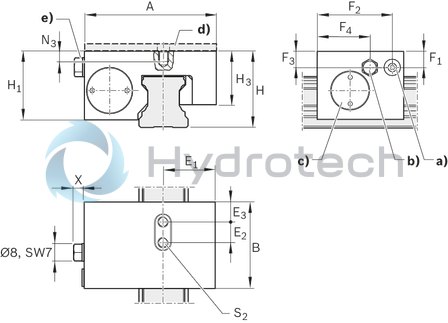

The Bosch Rexroth CLAMPING ELEMENT (R161924274) is a pneumatic clamping unit designed to provide dynamic and static stabilization in the axial direction for ball rail systems. This model is compatible with all SNS ball guide rails and offers easy mounting due to its simple mechanical gripping principle, ensuring a good price-performance ratio. The LCP 2505 AK/08 clamps using a compression pneumatic mechanism through mechanical gripping, featuring a chemically nickel-plated steel housing that contributes to high axial and horizontal rigidity. This clamping element ensures precise positioning with continuously adjustable pressure ranging from 2 to 8 bar and can facilitate short decompression cycles thanks to its preloaded return spring. Its design allows for free movement when the clamping profiles are held apart by either air pressure or spring force. Suitable for various sizes of profiled rail systems, including size H with a height of runner block of 40 mm and size E profiled rail systems, it also fits size A, d, N, B, and S thread diameter profiled rail systems. With an air consumption rate at normal conditions of approximately 24 liters per cycle and a nominal operating pressure maximum for size E profiled rail systems at 8 bar, this unit maintains efficiency in operation. The permissible ambient temperature range for this element is from -10°C up to +80°C, ensuring reliable performance across diverse environments. The Bosch Rexroth CLAMPING ELEMENT is ideal for applications requiring exact positioning, high dynamics, powerful drive capabilities, and an extended service life. Its compatibility with high-precision linear screw drives further enhances its operational longevity. Weighing approximately 0.7 kg without guide rails and accessories, it remains relatively lightweight while providing robust clamping force through both air pressure or spring energy holding force options.
