R161924051
$2,651.19 USD
- BOSCH REXROTH
- Material:R161924051
- Model:UBPS-2505-AS1A
Quantity in stock: 0
The Bosch Rexroth BRAKING ELEMENT UBPS 2505 AS1A (R161924051) is a high-performance pneumatic braking unit designed for use with ball rail systems. This robust component is suitable for various sizes of profiled rail systems, including sizes B, H, E, d, and N. It offers a compact design that is compatible with DIN standards and is capable of providing dynamic and static stabilization in the axial direction. The braking element clamps and brakes without pressurization using spring energy and boasts an extremely low air consumption. With a solid, rigid steel housing that's chemically nickel-plated, the UBPS 2505 AS1A ensures durability and maintenance-free operation for up to 10 million clamping cycles. It also supports up to 100,000 emergency braking operations. Its integrated all-around sealing contributes to its high continuous output and positioning accuracy. The pneumatic operating pressure ranges between 4-6 bar for the UBPS model, with a maximum permissible pressure detailed for specific profiled rail system sizes. The unit's functional principle involves clamping and braking with spring force; in the event of a pressure drop, it achieves clamping or braking effect through a dual-acting gate valve gear mechanism with one spring assembly spring energy accumulator each. This braking element can exert very high axial holding forces of up to 25,000 N at 4 bar release pressure due to its high-power spring energy accumulator. An additional pressurization on the airplus port can increase this holding force up to 50,000 N. The product also features an integrated quick-exhaust valve for fast reaction times. Designed to be maintenance-free with exceptional performance longevity, this Bosch Rexroth pneumatic braking unit is an essential accessory for ensuring precise control and safety in applications involving profiled rail systems.
Pneumatic braking unit UBPS, 25
Pneumatic braking unit UBPS, FLS for ball rail systems
Size = 25
Can be used on all SNS ball guide rails
Unpacked Weight: 1.094 kg
Functional principle
Air pressure: 0 bar
Clamps and brakes with spring force
In the event of a pressure drop, the clamping or braking effect is achieved via a dual acting gate valve gear mechanism with one spring assembly (spring energy accumulator) in each case.
An integrated quick-exhaust valve provides for short reaction times.
Air pressure: 4.5 - 8 bar (MBPS)
5.5 - 8 bar (UBPS)
Decompression with air pressure
The clamping profiles are held apart by the compressed air.
Free movement is possible
| Clamps and brakes with spring energy accumulator |
| Positive-locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect |
| Dynamic and static stabilization in the axial direction |
| Clamps and brakes without pressurization (spring energy) |
| Compact design, compatible with DIN 645 |
| Up to 1 million clamping cycles |
| Up to 2,000 emergency braking operations |
| Integrated all-round sealing |
| High continuous output |
| High positioning accuracy |
| Mechanical gate valve gear mechanism |
| Solid, rigid steel housing, chemically nickel-plated |
| Extremely low air consumption |
| Maintenance-free |
| 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection |
| Can be used on all SNS ball guide rails |
| Very high axial holding forces of up to 7700 N at 5.5 bar release pressure with high-power spring energy accumulator |
| Increased holding force of up to 9,200 N thanks to additional pressurization on the air-plus port |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size B1 | 99 |
| Size H (profiled rail system) | 36 |
| Height of runner block | 31 |
| Air consumption (normal liter) standard air port | 0.08 |
| Footnote for spring energy holding force with air-plus port | Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2 or 5/3-way directional control valve. |
| Productgroup ID | 17 |
| Size E3 (profiled rail systems) | 20 |
| Size S3 thread diameter (profiled rail systems) | M6 |
| Spring energy holding force with standard air port | 1500 |
| Size E2 (profiled rail systems) | 45 |
| Permissible ambient temperature (max) | |
| Permissible ambient temperature | 0 °C ... +70 °C |
| Footnote for spring energy holding force with standard air port | Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| Size A (profiled rail systems) | 70 |
| Size F1 | 6.5 |
| Size F2 | 11 |
| Permissible ambient temperature (min) | |
| Width of runner block | 70 |
| Size d (profiled rail systems) | 5.5 |
| Size N3 (profiled rail systems) | 7 |
| Height of runner block with guide rail | 36 |
| Spring energy holding force with air-plus port | 2650 |
| Air consumption (normal liter) air-plus port | 0.165 |
| Linear guide type | Accessories for profiled rail systems |
| Release pressure min. | 5.5 |
| Size E6 | 20 |
| Type clamping and braking units | Pneumatic |
| Max. pneumatic operating pressure: | 8 |
| Size E1 (profiled rail systems) | 57 |
| Footnote size H1 | Ball runner block .H. (...High...) Spacer plate necessary. Available on request. |
| Size N4 (profiled rail systems) | 7 |
| Accessories for profiled rail systems | Clamping and braking units |
| Size S2 thread diameter (profiled rail systems) | M8 |
| Weight | 1.094 |
| Size H1 (profiled rail systems) | 31 |
| Nominal size | 25 |
General technical data
|
Size |
25 | 30 | 35 1) | 45 | 55 | |
|
Spring energy holding force with standard air port 2) |
N |
1500 | 2500 | 2800 | 5200 | 7700 |
|
Spring energy holding force with air-plus port 3) |
N |
2650 | 3300 | 3800 | 7600 | 9200 |
|
Air consumption (normal liter) standard air port |
dm³/stroke |
0.08 | 0.111 | 0.139 | 0.153 | 0.554 |
|
Air consumption (normal liter) air-plus port |
dm³/stroke |
0.165 | 0.274 | 0.303 | 0.483 | 0.952 |
|
Max. pneumatic operating pressure |
bar |
8 | ||||
|
Release pressure min. |
bar |
5.5 | ||||
|
Mass |
kg |
1.2 | 1.8 | 2.25 | 6.2 | 9.4 |
|
Operating conditions |
||||||
|
Size |
25 | 30 | 35 1) | 45 | 55 | |
|
Permissible ambient temperature (min ... max) |
0 °C ... +70 °C | |||||
| 1) | Type tested in accordance with the European machinery directive 98/37/EC (valid until 28/12/2009) and 2006/42/EC (effective as of 29/12/2009). |
| 2) | Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| 3) | Increased holding force by additional air admission at air-plus port with 6.0 bar. Circuit across 5/2- or 5/3-way directional control valve. |
Circuit1) with standard air connection
1) Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
a) Air filter
1 Air connection
2 Working connection
3 Exhaust
Circuit1) for air-plus port
1) Increased holding force by additional air admission at air-plus port with 6.0 bar. Circuit across 5/2- or 5/3-way directional control valve.
a) Air-plus port
1 Air connection
2 4 Working connections
3 5 Exhaust
Clamping
in the event of loss of pressure during assembly work and standstill of the machine without energy of machine tables from machining centers of z-axis positioning in the resting positionBraking
in the event of energy failure in the event of a pressure drop support of the emergency stop function support as brake for linear motors

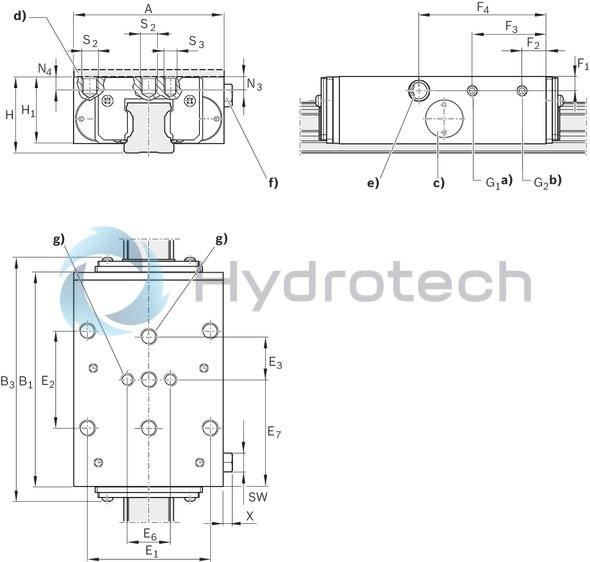

| a) | Air connection*) G1 on two sides for release pressure |
| b) | Connection*) G2 on two sides for air-plus port or air filter |
| c) | Adjusting screw on two sides |
| d) | Spacer plate (accessory) |
| e) | Exhaust on two sides |
| f) | Air filter: Connection G2 (possible on two sides) |
| g) | At least two middle mounting holes must be used! |
| *) Only one connection needed. | |
| All connections sealed upon delivery. |
Dimensions
|
Size |
25 | 30 | 35 1) | 45 | 55 | |
|
A |
mm |
70 | 90 | 100 | 120 | 140 |
|
B1 |
mm |
99 | 109 | 197 | ||
|
B3max |
mm |
115.1 | 128.7 | 131 | 220.1 | 221.6 |
|
E1 |
mm |
57 | 72 | 82 | 100 | 116 |
|
E2 |
mm |
45 | 52 | 62 | 80 | 95 |
|
E3 |
mm |
20 | 22 | 26 | 30 | 35 |
|
E6 |
mm |
20 | 22 | 24 | - | |
|
E7 |
mm |
49.5 | 54.5 | 98.5 | ||
|
F1 |
mm |
6.5 | 8 | 12 | 13 | |
|
F2 |
mm |
11 | 32 | |||
|
F3 |
mm |
34.3 | 40.8 | 167 | 165 | |
|
F4 |
mm |
59 | 66.5 | 106.5 | 103.5 | |
|
G1 |
3 Verstellelemente |
M5 | G1/8" | |||
|
G2 |
3 Verstellelemente |
M5 | G1/8" | |||
|
H |
mm |
36 | 42 | 48 | 60 | 70 |
|
H1 2) |
mm |
31 | 37 | 42 | 52 | 60 |
|
N3 |
mm |
7 | 8 | 10 | - | |
|
N4 |
mm |
7 | 8 | 10 | 12 | 14 |
|
S2 |
M8 | M10 | M12 | M14 | ||
|
S3 |
M6 | M8 | - | |||
|
SW |
Ø8, SW7 | Ø15, SW13 | ||||
|
X |
mm |
5.5 | 6.5 | |||
| 1) | Type tested in accordance with the European machinery directive 98/37/EC (valid until 28/12/2009) and 2006/42/EC (effective as of 29/12/2009). |
| 2) | Ball Runner Block .H. (...high...) Spacer plate necessary. Available on request. |
