- Material:R159161720
- Model:SEB-L-S17
Quantity in stock: 7
Assembly group pillow block unit SEB-L, size 25 x 5/10/25
The pillow block unit consists of: Precision pillow block housing made of steel with reference edge on one side, deep-groove ball bearing DIN 625, retaining ring DIN 471, cover
Unpacked Weight: 0.988 kg
Floating bearing with DIN 625 deep-groove ball bearing
| The pillow block unit consists of: |
| Precision pillow block housing made of steel with reference edge on one side |
| Deep-groove ball bearing DIN 625 |
| Retaining ring DIN 471 |
| Cover |
| Suitable for screw end form 41 |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size V | 10 |
| Productgroup ID | 17 |
| Footnote dynamic load capacity C | Load capacities (radial) |
| Size H5 | 18 |
| Size L4 | 88 |
| Size d | 17 |
| Size H3 | 27 |
| Size L3 | 66 |
| Size H4 | 19 |
| Size D | 40 |
| Footnote static load capacity C0 | Load capacities (radial) |
| Size L1 | 108 |
| Static load rating C0 | 4150 |
| Dynamic load capacity C | 9500 |
| Accessories for screw drives | Pillow block units |
| Size B | 12 |
| Weight | 0.988 |
| Size H1 | 72 |
| Nominal size | 25 x 5/10/25 |
|
Size |
Ball bearing |
Pillow block unit assembly |
|
|
d0 x P |
C |
C0 |
m |
|
N |
N |
kg |
|
| 8 x 1/2/2,5/5 | 1900 2) | 590 2) | 0.14 |
| 12 x 2/5/10 | 2450 2) | 900 2) | 0.18 |
| 16 x 5/10/16 | 6000 2) | 2240 2) | 0.54 |
| 20 x 5/10/20/40 | 6950 2) | 2650 2) | 0.73 |
| 25 x 5/10/25 | 9500 2) | 4150 2) | 0.96 |
| 32 x 5/10/20/32/64 | 12700 2) | 5700 2) | 1.24 |
| 40 x 5 | 19300 2) | 9800 2) | 1.66 |
| 40 x 10/12/16/20/25/30/40 | 1.82 | ||
| 50 x 5 1) | 25500 2) | 13200 2) | 2.66 |
| 50 x 10/12/16/20/25/30/40 1) | 2.87 | ||
| 63 x 10/20/40 1) | 36500 2) | 20800 2) | 5.39 |
| 80 x 10/20 1) | 52000 2) | 31000 2) | 7.09 |
| 1) | without cover |
| 2) | Load ratings (radial) |
Legend
|
Symbol |
Description |
Unit |
|
d0 |
Nominal diameter |
|
|
P |
Lead |
|
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
m |
Mass |
kg |
Suitable for screw ends: Form
|
41 |
|

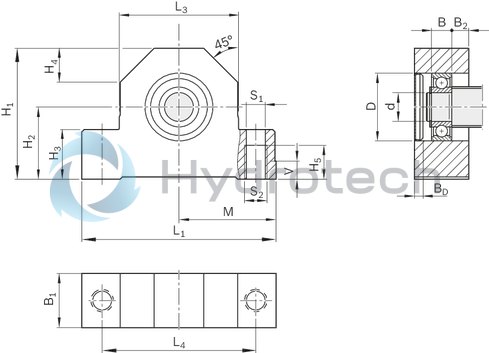

Dimensions
|
Size |
Ball bearing |
B1 |
B2 |
H1 |
H2 |
H3 |
H4 |
H5 |
M |
L1 |
L3 |
L4 |
S1 |
S2 |
V |
Covers |
||
|
d0 x P |
d |
D |
B |
js7 |
H12 |
BD |
||||||||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 8 x 1/2/2,5/5 | 5 | 16 | 5 | 13 | 4 | 34 | 18 mm ±0.02 | 13 | 11 | 9 | 31 | 62 | 38 | 50 | 5.3 | M6 | 6 | 2.6 |
| 12 x 2/5/10 | 6 | 19 | 6 | 15 | 4.5 | 41 | 22 mm ±0.02 | |||||||||||
| 16 x 5/10/16 | 10 | 30 | 9 | 24 | 7.5 | 58 | 32 mm ±0.02 | 22 | 15 | 15 | 43 | 86 | 52 | 68 | 8.4 | M10 | 8 | 3.8 |
| 20 x 5/10/20/40 | 12 | 32 | 10 | 26 | 8 | 64 | 34 mm ±0.02 | 17 | 47 | 94 | 60 | 77 | ||||||
| 25 x 5/10/25 | 17 | 40 | 12 | 28 | 72 | 39 mm ±0.02 | 27 | 19 | 18 | 54 | 108 | 66 | 88 | 10.5 | M12 | 10 | 3.7 | |
| 32 x 5/10/20/32/64 | 20 | 47 | 14 | 34 | 10 | 77 | 42 mm ±0.02 | 20 | 56 | 112 | 70 | 92 | 4.8 | |||||
| 40 x 5 | 30 | 62 | 16 | 38 | 11 | 90 | 50 mm ±0.02 | 32 | 23 | 21 | 63 | 126 | 80 | 105 | 12.6 | M14 | 12 | 4.5 |
| 40 x 10/12/16/20/25/30/40 | 98 | 58 mm ±0.02 | ||||||||||||||||
| 50 x 5 1) | 35 | 72 | 17 | 41 | 12 | 105 | 38 | 25 | 22 | 72 | 144 | 92 | 118 | 12.5 | - | |||
| 50 x 10/12/16/20/25/30/40 1) | 112 | 65 mm ±0.02 | ||||||||||||||||
| 63 x 10/20/40 1) | 50 | 90 | 20 | 46 | 13 | 138 | 73 mm ±0.02 | 50 | 35 | 95 | 190 | 130 | 160 | 16 | ||||
| 80 x 10/20 1) | 60 | 110 | 22 | 50 | 14 | 165 | 93 mm ±0.02 | 40 | 36 | 102.5 | 205 | 145 | 175 | 17.3 | M20 | |||
| 1) | without cover |
Legend
|
Symbol |
Description |
|
d0 |
Nominal diameter |
|
P |
Lead |
Separate technical size selection to determine limit values is is essential for all additional components (e.g. pillow block units, assembly group Bearing Unit etc.).
All parts are delivered unmounted.
Required and supplementary documentation
For further instructions and information, please refer to the documentation for this product.
You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.
If you are unsure about using this product, please contact Bosch Rexroth.
