BOSCH REXROTH
R159001200
$548.30
- BOSCH REXROTH
- Material:R159001200
- Model:LAF-B-Z12
Quantity in stock: 5
The Bosch Rexroth BEARING LAF-B-Z 12 (R159001200) is a high-quality fixed bearing unit designed to provide reliable support and precise guidance for ball screw assemblies. This bearing is part of the assembly group LAF and is suitable for screw end types A, B, C, D, E, and F. It features an angular contact thrust ball bearing LGF and comes with a slotted nut NMA or NMZ for secure fastening. The BEARING LAF-B-Z 12 is engineered to handle both dynamic and static loads efficiently. Its dynamic load capacity C and static load capacity Co are determined by Bosch Rexroth's general technical notes and information for bearings. The rigidity against tilting (Rkl) and the axial rigidity (RFB) ensure that the bearing maintains its performance even under varying loads and conditions. The outer diameter D and size d are specified to fit precisely with compatible components. This bearing unit has been designed with a specific number of mounting holes, which facilitates ease of installation while the hole pattern BB ensures compatibility with the corresponding ball screw assembly. The bearing's frictional torque with seal MRb contributes to a smooth operation while minimizing resistance. As part of the accessories for Rexroth ball screw assemblies, this fixed bearing supports applications requiring high precision and rigidity. The double-thrust, screw-down series LGFB, LGFA, and LGFC further enhance its versatility in various configurations. Overall, the Bosch Rexroth BEARING LAF-B-Z 12 (R159001200) represents a robust solution for applications demanding high precision linear movement. Its design ensures long-lasting performance while maintaining the quality expected from Bosch Rexroth's range of engineering components.
Assembly group bearing unit LAF, size 20 x 5/10/20/40
The fixed bearing consists of: Angular-contact thrust ball bearing LGF, slotted nut NMA or NMZ. Suitable for screw end type◡51, 51A, 52, 52A, 81, 81A, 82, 82A, 91, 91A, 92, 92A
Unpacked Weight: 0.389 kg
Fixed bearing with angular-contact thrust ball bearing LGF
Double-thrust, screw-down,
series LGF-B-…
series LGF-A-…
Double-thrust, screw-down,
series LGF-C-…
| The fixed bearing consists of: |
| Angular-contact thrust ball bearing LGF |
| Slotted nut NMA or NMZ |
| Suitable for screw end form 51, 51A, 52, 52A, 81, 81A, 82, 82A, 91, 91A, 92, 92A |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Productgroup ID | 17 |
| Footnote dynamic load capacity C | Load on bearing (see general technical notes and information for bearings, "Project planning notes") |
| Rigidity against tilting Rkl | 50 |
| Limit speed (grease) nmax | 3800 |
| Outer diameter D | 55 |
| Size d | 12 |
| Size J | 42 |
| Min. number of mounting holes | 3 |
| Mounting holes t | 120 |
| Size D | 55 |
| Bearing frictional torque with seal MRb | 0.16 |
| Footnote static load capacity C0 | Load on bearing (see general technical notes and information for bearings, "Project planning notes") |
| Rigidity of the bearing (axial) RFB | 375 |
| Hole pattern | BB1 |
| Static load rating C0 | 24700 |
| Dynamic load capacity C | 17000 |
| Accessories for screw drives | Bearings |
| Size B | 25 |
| Weight | 0.389 |
| Nominal size | 20 x 5/10/20/40 |
Technical data for bearings
|
Size |
C |
C0 |
MRb |
Rfb |
Rkl |
nmax |
Mass |
|
d0 x P |
N |
N |
Nm |
N/μm |
Nm/mrad |
rpm |
kg |
| 20 x 5/10/20/40 | 17000 1) | 24700 1) | 0.16 | 375 | 50 | 3800 | 0.385 |
| 25 x 5/10/25 | 18800 1) | 31000 1) | 0.24 | 450 | 80 | 3300 | 0.485 2) |
| 0.52 3) | |||||||
| 32 x 5/10/20/32/64 | 26000 1) | 47000 1) | 0.3 | 650 | 140 | 3000 | 0.645 4) |
| 0.74 5) | |||||||
| 40 x 5 | 29000 1) | 64000 1) | 0.5 | 850 | 300 | 2200 | 0.855 6) |
| 0.98 7) | |||||||
| 40 x 10/12/16/20/40 | 44500 1) | 111000 1) | 0.6 | 1300 | 450 | 2600 | 1.6 |
| 50 x 5 | 41000 1) | 89000 1) | 900 | 400 | 2000 | 1.36 | |
| 50 x 10/12/16/20/25/40 | 47500 | 127000 | 0.75 | 1500 | 620 | 2200 | 1.76 |
| 63 x 10/20/40 | 72000 1) | 149000 1) | 1.3 | 1200 | 750 | 1600 | 2.5 |
| 80 x 10/20 | 113000 1) | 250000 1) | 2.6 | 1400 | 1500 | 1200 | 5.13 |
| 1) | Load on bearing (see general technical notes and information for bearings, “Project planning notes”) |
| 2) | R159001700 |
| 3) | R159001730 |
| 4) | R159002000 |
| 5) | R159002030 |
| 6) | R159003000 |
| 7) | R159003030 |
Legend
|
Symbol |
Description |
Unit |
|
d0 |
Nominal diameter |
|
|
P |
Lead |
|
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
MRb |
Frictional torque of bearing with seal |
Nm |
|
Rfb |
Rigidity of the bearing (axial) |
N/μm |
|
Rkl |
Rigidity against tilting |
Nm/mrad |
|
nmax |
Limit speed (grease) |
min⁻¹ |
Suitable for screw ends: Form
|
51 51A |
|
81 81A |
|
91 91A |
|
|
52 52A |
|
82 82A |
|
92 92A |
|
| 1) | LGF-B-…with slotted nut NMA, LGF-A-…with slotted nut NMA |
| 2) | LGF-C-…with slotted nut NMA |
| 3) | LGF-B-…with slotted nut NMZ |

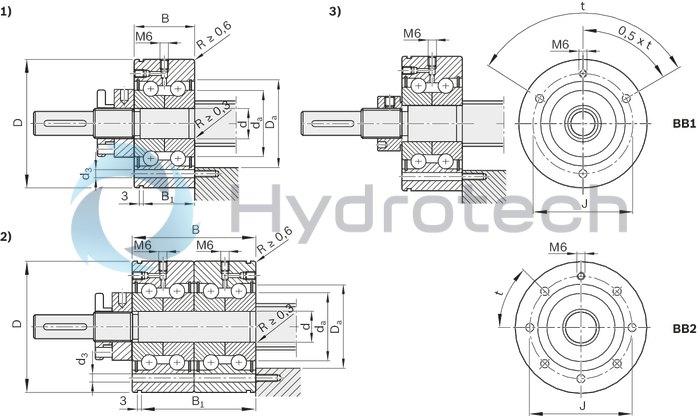

Dimensions
|
Size |
Dimensions |
Connection dimensions |
Mounting holes |
||||||||||
|
d0 x P |
d |
D |
B |
B1 |
J |
Da min. |
Da max. |
da min. |
da max. |
Minimum number |
d3 |
t |
Hole pattern |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
° |
||||||
| 20 x 5/10/20/40 | 12 mm -0.01 | 55 mm -0.013 | 25 mm -0.25 | 17 | 42 | 30 | 33 | 16 | 29 | 3 | 6.8 | 120 | BB1 |
| 25 x 5/10/25 | 17 mm -0.01 | 62 mm -0.013 | 48 | 34 | 37 | 23 | 33 | ||||||
| 32 x 5/10/20/32/64 | 20 mm -0.01 | 68 mm -0.013 | 28 mm -0.25 | 19 | 53 | 40 | 43 | 25 | 39 | 4 | 90 | ||
| 40 x 5 | 30 mm -0.01 | 80 mm -0.013 | 63 | 50 | 53 | 40 | 49 | 6 | 60 | ||||
| 40 x 10/12/16/20/40 | 25 mm -0.005 | 75 mm -0.01 | 56 mm -0.5 | 47 | 58 | 45 | 48 | 32 | 44 | 7 | 6.5 | 45 | BB2 |
| 50 x 5 | 35 mm -0.01 | 90 mm -0.015 | 34 mm -0.25 | 25 | 75 | 59 | 62 | 45 | 58 | 8.8 | 90 | BB1 | |
| 50 x 10/12/16/20/25/40 | 30 mm -0.005 | 80 mm -0.01 | 56 mm -0.5 | 47 | 63 | 50 | 53 | 40 | 49 | 11 | 6.5 | 30 | BB2 |
| 63 x 10/20/40 | 40 mm -0.01 | 115 mm -0.015 | 46 mm -0.25 | 36 | 94 | 71 | 80 | 56 | 70 | 12 | 8.5 | BB1 | |
| 80 x 10/20 | 50 mm -0.005 | 140 mm -0.01 | 54 mm -0.25 | 45 | 113 | 88 | 100 | 63 | 87 | 10.5 | |||
Legend
|
Symbol |
Description |
|
d0 |
Nominal diameter |
|
P |
Lead |
