BOSCH REXROTH
R151214013

$411.40 USD

BOSCH REXROTH
Material:R151214013
Model:FEM-E-S20X10RX3-4

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth FEM-E-S 20X10RX3-4 (R151214013) is a high-precision ball screw assembly component specifically designed for linear motion applications. This single nut with flange from the FEMES series features a nominal diameter (d) and a right-hand lead (P), engineered to facilitate smooth and accurate movement. The ball screw nut is integrated with standard seals to ensure longevity and consistent performance under various operating conditions. Crafted with meticulous attention to detail, the FEM-E-S 20X10RX3-4 incorporates Rexroth connection dimensions for seamless integration with corresponding systems. It is equipped with a flange for mounting convenience and comes in preload class C, ensuring reduced axial play and increased system rigidity. The tolerance grade T is applied across sizes as per the product overview for screws, providing assurance of dimensional accuracy within the assembly. This product operates efficiently within a temperature range of -10°C to +100°C, accommodating maximum continuous temperatures up to 80°C and temporary peaks up to 100°C, as measured on the outer shell of the nut. Its dynamic load capacity is optimized for tolerance grades T3 and T5; however, if other tolerance grades are used, a correction factor must be considered as detailed in the General Technical Notes and Information. The Bosch Rexroth FEM-E-S 20X10RX3-4 ball screw nut boasts an impressive static load rating while maintaining maximum permissible linear speeds that ensure effective operation within mechanical systems. Its design caters to applications requiring precise linear movement where reliability and durability are paramount. With its robust construction and adherence to stringent quality standards, this ball screw assembly component represents an essential element in advanced motion control solutions.

Single nut with flange FEM-E-S, size 20 x 10R x 3 - 4

Single nut with flange FEM-E-S with standard seal and standard axial clearance
Nominal diameter d0 = 20
Lead P = 10 (right)
Ball diameter Dw = 3
Number of ball track turns i = 4

Unpacked Weight: 0.460 kg

Product overview

Rexroth connection dimensions
With seals
With left-hand version in some cases
Preload class: C0, C00, C1, C2, C3
Tolerance grade: T3 (for sizes as per the product overview for screws, see general technical notes and information, “Product description”), T5, T7, T9
Rexroth connecting dimensions: Rexroth mounting dimensions
With seals

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size D5	58
Size L with tolerance	60 mm
Bearing temperature max	+80
Series	Standard series
Bearing temperature min	-15
Nut or screw	Screw drive nut
Maximum operating temperature	+80
Footnote dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f_ac (see General Technical Notes and Information "Technical Data", Technical Notes).
Bearing temperature	-15 °C ... +80 °C
Category	A
Minimum operating temperature	-10
Size L4	16
Size D6	45
Size L3	12
Size L10	48
Operating temperature	-10 °C ... +80 °C
Maximum permissible linear speed vmax (m/min)	60
Direction of lead	Right
Lead	10
Footnote static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f_ac (see General Technical Notes and Information "Technical Data", Technical Notes).
Static load rating C0	21300
Size D1 g6	33
Note: Maximum permissible speed vmax	See "Characteristic speed d₀• n" (section Technical notes) and "Critical speed n_cr" (section Calculation and examples)
Nut type	FEM-E-S single nut with flange
Productgroup ID	17
Screw drive version (drive type)	Ball screw assembly
Size D7	6.6
Angle φ	30
Hole pattern	BB4
Size Sx	4
Footnote permissible operating temperature (min...max)	Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Dynamic load capacity C	16900
Size d1	19
Size L	60
Size d2	16.9
Footnote operating temperature max.	Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case.
Weight	0.460
Nominal size	20 x 10R x 3 - 4

Technical data for nuts

Size	C	C0	vmax	Mass
d0 x P x Dw - i	N	N	m/min	kg
16 x 5R x 3 - 4	14800 1)	16100 1)	30 2)	0.24
16 x 10R x 3 - 3	11500 1)	12300 1)	60 2)	0.25
16 x 16R x 3 - 2	7560 1)	7600 1)	96 2)	0.39
20 x 5R x 3 - 4	17200 1)	21500 1)	30 2)	0.28
20 x 10R x 3 - 4	16900 1)	21300 1)	60 2)	0.36
20 x 20R x 3,5 - 2	10900 1)	12100 1)	120 2)	0.6
25 x 5R x 3 - 4	19100 1)	27200 1)	30 2)	0.35
25 x 10R x 3 - 4	18800 1)	27000 1)	60 2)	0.44
25 x 25R x 3,5 - 2	12100 1)	15100 1)	150 2)	1.09
32 x 5R x 3,5 - 4	25900 1)	40000 1)	23 2)	0.54
32 x 10R x 3,969 - 5	38000 1)	58300 1)	47 2)	0.72
32 x 20R x 3,969 - 2	16200 1)	21800 1)	94 2)	1.02
32 x 32R x 3,969 - 2	16100 1)	22000 1)	150 2)	1.4
40 x 5R x 3,5 - 5	34900 1)	64100 1)	19 2)	0.71
40 x 10R x 6 - 4	60000 1)	86400 1)	38 2)	1.29
40 x 10R x 6 - 6	86500 1)	132200 1)	38 2)	1.59
40 x 20R x 6 - 3	45500 1)	62800 1)	75 2)	1.54
40 x 40R x 6 - 2	30600 1)	40300 1)	150 2)	3.59
50 x 5R x 3,5 - 5	38400 1)	81300 1)	15 2)	1.02
50 x 10R x 6 - 6	95600 1)	166500 1)	30 2)	2.02
50 x 16R x 6 - 6	95300 1)	166000 1)	48 2)	2.58
50 x 20R x 6,5 - 3	57500 1)	87900 1)	60 2)	3.4
50 x 40R x 6,5 - 2	38500 1)	55800 1)	120 2)	3.87
63 x 10R x 6 - 6	106600 1)	214300 1)	24 2)	2.62
63 x 20R x 6,5 - 3	63800 1)	112100 1)	48 2)	3.71
63 x 40R x 6,5 - 2	44300 1)	74300 1)	95 2)	4.21
80 x 10R x 6,5 - 6	130100 1)	291700 1)	19 2)	3.78
80 x 20R x 12,7 - 6	315200 1)	534200 1)	30 2)	11
16 x 5L x 3 - 4	14800 1)	16100 1)		0.24
20 x 5L x 3 - 4	17200 1)	21500 1)		0.28
25 x 5L x 3 - 4	19100 1)	27200 1)		0.35
32 x 5L x 3,5 - 4	25900 1)	40000 1)	23 2)	0.54
40 x 5L x 3,5 - 5	34900 1)	64100 1)	19 2)	0.71
40 x 10L x 6 - 4	60000 1)	86400 1)	38 2)	1.29

1)	The load ratings are valid for tolerance grades T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
2)	See "characteristic speed d0 • n" (section Technical notes) and "critical speed n"cr" (section Calculation and examples)

Operating conditions

Size	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
d0 x P x Dw - i	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
16 x 5R x 3 - 4	-10 °C ... +80 °C	-15 °C ... +80 °C
16 x 10R x 3 - 3
16 x 16R x 3 - 2
20 x 5R x 3 - 4
20 x 10R x 3 - 4
20 x 20R x 3,5 - 2
25 x 5R x 3 - 4
25 x 10R x 3 - 4
25 x 25R x 3,5 - 2
32 x 5R x 3,5 - 4
32 x 10R x 3,969 - 5
32 x 20R x 3,969 - 2
32 x 32R x 3,969 - 2
40 x 5R x 3,5 - 5
40 x 10R x 6 - 4
40 x 10R x 6 - 6
40 x 20R x 6 - 3
40 x 40R x 6 - 2
50 x 5R x 3,5 - 5
50 x 10R x 6 - 6
50 x 16R x 6 - 6
50 x 20R x 6,5 - 3
50 x 40R x 6,5 - 2
63 x 10R x 6 - 6
63 x 20R x 6,5 - 3
63 x 40R x 6,5 - 2
80 x 10R x 6,5 - 6
80 x 20R x 12,7 - 6
16 x 5L x 3 - 4
20 x 5L x 3 - 4
25 x 5L x 3 - 4
32 x 5L x 3,5 - 4
40 x 5L x 3,5 - 5
40 x 10L x 6 - 4

1)	Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut).

Legend

Symbol	Description	Unit
d0	Nominal diameter	mm
P	Lead (R = right-hand, L = left-hand)
Dw	Ball diameter	mm
i	Number of ball track turns
C	Dynamic load capacity	N
C0	Static load capacity	N
vmax	Maximum permissible speed	m/min

Technical notes

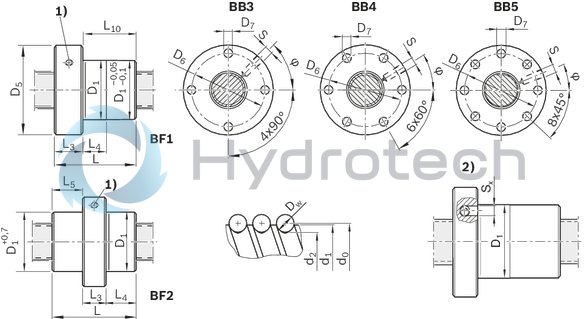

technical illustration-R151214013-Single nut with flange FEM-E-S, size 20 x 10R x 3 - 4

1)	Lube port at flange center (lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm)
2)	Nut rework: Axial lube port

Dimensions

Size	d1	d2	D1	D5	Hole pattern	D6	D7	Design type	L	L3	L4	L5	L10	S 1)	Sx	φ
d0 x P x Dw - i	d1	d2	g6	D5	Hole pattern	D6	D7	Design type	L	L3	L4	L5	L10	S 1)	Sx	φ
d0 x P x Dw - i	mm	mm	mm	mm		mm	mm		mm	mm	mm	mm	mm	mm	mm	°
16 x 5R x 3 - 4	15	12.9	28	53	BB3	40	6.6	BF1	38	12	10	-	26	M6	4	315
16 x 10R x 3 - 3			28	53	BB3	40		BF1	45	12	16	-	33			315
16 x 16R x 3 - 2			33	58	BB4	45		BF2	45	15	15	15	-			30
20 x 5R x 3 - 4	19	16.9						BF1	40	12	10	-	28
20 x 10R x 3 - 4		16.9						BF1	60	12	16	-	48
20 x 20R x 3,5 - 2		16.7	38	63		50		BF2	57	20	18.5	18.5	-
25 x 5R x 3 - 4	24	21.9						BF1	45	12	10	-	33
25 x 10R x 3 - 4		21.9						BF1	64	12	16	-	52
25 x 25R x 3,5 - 2		21.4	48	73		60		BF2	70	25	22.5	22.5	-			18
32 x 5R x 3,5 - 4	31	28.4						BF1	48	13	10	-	35			30
32 x 10R x 3,969 - 5		27.9							77	13	16		64
32 x 20R x 3,969 - 2			56	80		68			64	15	25		49
32 x 32R x 3,969 - 2								BF2	88	20	34	34	-
40 x 5R x 3,5 - 5	39	36.4						BF1	54	15	10	-	39	M8x1	5
40 x 10R x 6 - 4	38	33.8	63	95		78	9		70		16		55
40 x 10R x 6 - 6									90		16		75
40 x 20R x 6 - 3									88		25		73
40 x 40R x 6 - 2			72	110		90	11	BF2	102	40	31	31	-			19
50 x 5R x 3,5 - 5	49	46.4	68	98		82	9	BF1	54	15	10	-	39			30
50 x 10R x 6 - 6	48	43.8	72	110		90	11		90	18	16		72
50 x 16R x 6 - 6		43.8	72	110		90			128	18	25		110
50 x 20R x 6,5 - 3		43.4	85	125		105			92	22	25		70
50 x 40R x 6,5 - 2		43.4							109		45		87
63 x 10R x 6 - 6	61	56.8							90		16		68
63 x 20R x 6,5 - 3		56.4	95	140		118	14		92		25		70
63 x 40R x 6,5 - 2		56.4	95	140		118			109		45		87
80 x 10R x 6,5 - 6	78	73.3	105	150		125			95		16		73
80 x 20R x 12,7 - 6	76	67	125	180	BB5	152	18		170	25	25		145			22.5
16 x 5L x 3 - 4	15	12.9	28	53	BB3	40	6.6		38	12	10		26	M6		45
20 x 5L x 3 - 4	19	16.9	33	58	BB4	45			40				28			30
25 x 5L x 3 - 4	24	21.9	38	63		50			45				33
32 x 5L x 3,5 - 4	31	28.4	48	73		60			48	13			35
40 x 5L x 3,5 - 5	39	36.4	56	80		68			54	15			39	M8x1
40 x 10L x 6 - 4	38	33.8	63	95		78	9		70	15	16		55	M8x1

1)	Lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm

Legend

Symbol	Description
d0	Nominal diameter
P	Lead (R = right-hand, L = left-hand)
Dw	Ball diameter
i	Number of ball track turns

Calculation

Installation

Attention: When setting up applications, do not allow components to collide with the front lube unit.

Lubrication

Directives and standards

Required and supplementary documentation

For further instructions and information, please refer to the documentation for this product.

You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.

If you are unsure about using this product, please contact Bosch Rexroth.

Notes
