BOSCH REXROTH
R151201055
$611.78 USD
- BOSCH REXROTH
- Material:R151201055
- Model:SEM-E-C 16X5RX3-4
Quantity in stock: 0
The Bosch Rexroth SEM-E-C 16X5RX3-4 (R151201055) is a high-precision ball screw assembly designed for linear motion applications requiring exact positioning and repeatability. This adjustable preload single nut SEMEC is engineered with a flange type C mounting, compatible with DIN standards, ensuring easy integration into various machine designs. The ball screw has a nominal diameter of 16 mm and a lead of 5 mm, moving to the right, which indicates the direction of lead. Equipped with standard seals and standard axial clearance, this model maintains its performance by protecting against contaminants while allowing for minor adjustments in preload to reduce axial play for improved rigidity and precision. The SEM-E-C 16X5RX3-4 features a tolerance grade T, which is consistent across sizes as detailed in the product overview for screws. With a dynamic load capacity C and static load rating C0 specified for tolerance grades T3 and T5, users must apply correction factors for other grades as outlined in the technical data notes. This ball screw can operate within a temperature range of -10°C to +100°C continuously, handling temporary peaks up to +120°C measured on the outer shell of the nut. The SEM-E-C 16X5RX3-4 also boasts an impressive maximum permissible linear speed vmax, contributing to its operational efficiency. The product's zero-clearance adjustable single nut design ensures minimal backlash while maintaining high stiffness and load capacity. It comes in size L1 with a weight of approximately 0.45 kg, making it suitable for various industrial applications where weight and space are considerations. Overall, this Bosch Rexroth ball screw assembly represents a reliable component that combines durability with precision engineering to meet demanding linear motion requirements across different applications without sacrificing performance or longevity.
| Mounting dimensions similar to DIN 69051, Part 5 flange type C |
| With seals |
| Adjustable preload |
| Tolerance grade: T3 (for sizes as per the product overview for screws, see General Technical Notes and Information "Product description"), T5, T7 |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size D5 | 48 |
| Size L with tolerance | 38 mm |
| Bearing temperature max | |
| Series | Standard series |
| Bearing temperature min | |
| Nut or screw | Screw drive nut |
| Maximum operating temperature | |
| Footnote dynamic load capacity C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Bearing temperature | -15 °C ... +80 °C |
| Category | B |
| Minimum operating temperature | |
| Size L4 | 10 |
| Size D6 | 38 |
| Size D1 f9 | 28 |
| Size D1 min | 27.94 |
| Size L3 | 15 |
| Size L9 | 44 |
| Size L10 | 11.5 |
| Size D1 max | 27.975 |
| Operating temperature | -10 °C ... +80 °C |
| Maximum permissible linear speed vmax (m/min) | 30 |
| Direction of lead | Right |
| Size L8 | 7.1 |
| Lead | 5 |
| Footnote static load capacity C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Size L5 | 11.5 |
| Static load rating C0 | 16100 |
| Note: Maximum permissible speed vmax | See "Characteristic speed d0 • n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed ncr" (see General Technical Notes and Information, "Project planning notes") |
| Nut type | SEM-E-C zero-clearance adjustable single nut |
| Productgroup ID | 17 |
| Screw drive version (drive type) | Ball screw assembly |
| Size D7 | 5.5 |
| Hole pattern | BB2 |
| Size Sx | 4 |
| Footnote permissible operating temperature (min...max) | Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. |
| Dynamic load capacity C | 14800 |
| Size d1 | 15 |
| Size L | 38 |
| Size d2 | 12.9 |
| Footnote operating temperature max. | Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case. |
| Weight | 0.285 |
| Nominal size | 16 x 5R x 3 - 4 |
Technical data for nuts
|
Size |
C |
C0 |
vmax |
Mass |
|
d0 x P x Dw - i |
N |
N |
m/min |
kg |
| 16 x 5R x 3 - 4 | 14800 1) | 16100 1) | 30 2) | 0.2 |
| 16 x 10R x 3 - 3 | 11500 1) | 12300 1) | 60 2) | 0.22 |
| 16 x 16R x 3 - 3 | 11200 1) | 12000 1) | 96 2) | 0.29 |
| 20 x 5R x 3 - 4 | 17200 1) | 21500 1) | 30 2) | 0.33 |
| 20 x 20R x 3,5 - 3 | 16000 1) | 18800 1) | 120 2) | 0.56 |
| 25 x 5R x 3 - 4 | 19100 1) | 27200 1) | 30 2) | 0.43 |
| 25 x 10R x 3 - 4 | 18800 1) | 27000 1) | 60 2) | 0.54 |
| 25 x 25R x 3,5 - 3 | 17600 1) | 23300 1) | 150 2) | 0.77 |
| 32 x 5R x 3,5 - 4 | 25900 1) | 40000 1) | 23 2) | 0.74 |
| 32 x 10R x 3,969 - 5 | 38000 1) | 58300 1) | 47 2) | 0.97 |
| 32 x 20R x 3,969 - 3 | 23600 1) | 33700 1) | 94 2) | 1.04 |
| 32 x 32R x 3,969 - 3 | 23400 1) | 34000 1) | 150 2) | 1.34 |
| 40 x 5R x 3,5 - 5 | 34900 1) | 64100 1) | 19 2) | 1.25 |
| 40 x 10R x 6 - 4 | 60000 1) | 86400 1) | 38 2) | 1.39 |
| 40 x 12R x 6 - 4 | 59900 1) | 86200 1) | 45 2) | 1.47 |
| 40 x 20R x 6 - 3 | 45500 1) | 62800 1) | 75 2) | 1.55 |
| 40 x 40R x 6 - 3 | 44400 1) | 62300 1) | 150 2) | 2.69 |
| 50 x 5R x 3,5 - 5 | 38400 1) | 81300 1) | 15 2) | 1.67 |
| 50 x 10R x 6 - 6 | 95600 1) | 166500 1) | 30 2) | 2.46 |
| 50 x 12R x 6 - 6 | 95500 1) | 166400 1) | 36 2) | 2.69 |
| 50 x 20R x 6,5 - 5 | 90800 1) | 149700 1) | 60 2) | 3.08 |
| 50 x 40R x 6,5 - 3 | 55800 1) | 85900 1) | 120 2) | 3.39 |
| 63 x 10R x 6 - 6 | 106600 1) | 214300 1) | 24 2) | 2.83 |
| 63 x 20R x 6,5 - 5 | 100700 1) | 190300 1) | 48 2) | 4.86 |
| 63 x 40R x 6,5 - 3 | 64100 1) | 114100 1) | 95 2) | 5.36 |
| 80 x 10R x 6,5 - 6 | 130100 1) | 291700 1) | 19 2) | 3.73 |
| 80 x 20R x 12,7 - 6 | 315200 1) | 534200 1) | 30 2) | 13.5 |
| 1) | The load ratings are valid for tolerance grades T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). |
| 2) | See "characteristic speed d0 • n" (see General Technical Notes and Information "Technical Data" (Technical Notes), and "Critical Speed ncr" (see General Technical Notes and Information, "Project planning notes") |
Operating conditions
|
Size |
Admissible operating temperature (min ... max) 1) |
Admissible storage temperature (min ... max) |
|
d0 x P x Dw - i |
||
| 16 x 5R x 3 - 4 | -10 °C ... +80 °C | -15 °C ... +80 °C |
| 16 x 10R x 3 - 3 | ||
| 16 x 16R x 3 - 3 | ||
| 20 x 5R x 3 - 4 | ||
| 20 x 20R x 3,5 - 3 | ||
| 25 x 5R x 3 - 4 | ||
| 25 x 10R x 3 - 4 | ||
| 25 x 25R x 3,5 - 3 | ||
| 32 x 5R x 3,5 - 4 | ||
| 32 x 10R x 3,969 - 5 | ||
| 32 x 20R x 3,969 - 3 | ||
| 32 x 32R x 3,969 - 3 | ||
| 40 x 5R x 3,5 - 5 | ||
| 40 x 10R x 6 - 4 | ||
| 40 x 12R x 6 - 4 | ||
| 40 x 20R x 6 - 3 | ||
| 40 x 40R x 6 - 3 | ||
| 50 x 5R x 3,5 - 5 | ||
| 50 x 10R x 6 - 6 | ||
| 50 x 12R x 6 - 6 | ||
| 50 x 20R x 6,5 - 5 | ||
| 50 x 40R x 6,5 - 3 | ||
| 63 x 10R x 6 - 6 | ||
| 63 x 20R x 6,5 - 5 | ||
| 63 x 40R x 6,5 - 3 | ||
| 80 x 10R x 6,5 - 6 | ||
| 80 x 20R x 12,7 - 6 |
| 1) | Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut). |
Legend
|
Symbol |
Description |
Unit |
|
d0 |
Nominal diameter |
mm |
|
P |
Lead (R = right-hand) |
|
|
Dw |
Ball diameter |
mm |
|
i |
Number of ball track turns |
|
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
vmax |
Maximum permissible speed |
m/min |
Technical notes
| 1) | Lube port (lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm) |
| 2) | Nut rework: Axial lube port |

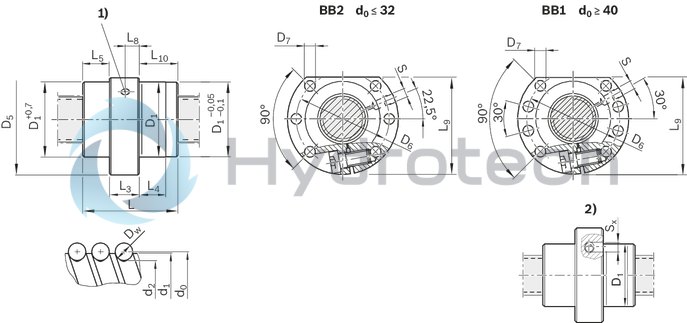

Dimensions
|
Size |
D1 min |
D1 max |
d1 |
d2 |
D1 |
D5 |
Hole pattern |
D6 |
D7 |
L |
L3 |
L4 |
L5 |
L8 |
L9 |
L10 |
S 1) |
Sx |
|
d0 x P x Dw - i |
f9 |
|||||||||||||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 16 x 5R x 3 - 4 | 27.94 | 27.975 | 15 | 12.9 | 28 | 48 | BB2 | 38 | 5.5 | 38 | 15 | 10 | 11.5 | 7.1 | 44 | 11.5 | M6 | 4 |
| 16 x 10R x 3 - 3 | 45 | 15 | 15 | 11 | 15 | |||||||||||||
| 16 x 16R x 3 - 3 | 27.95 | 27.978 | 61 | 20 | 23 | 10 | 23 | |||||||||||
| 20 x 5R x 3 - 4 | 35.935 | 35.97 | 19 | 16.9 | 36 | 58 | 47 | 6.6 | 40 | 10 | 12.5 | 7.1 | 51 | 12.5 | ||||
| 20 x 20R x 3,5 - 3 | 35.945 | 35.973 | 16.7 | 77 | 20 | 25 | 28.5 | 12.5 | 28.5 | |||||||||
| 25 x 5R x 3 - 4 | 39.935 | 39.97 | 24 | 21.9 | 40 | 62 | 51 | 45 | 10 | 12.5 | 9.5 | 55 | 12.5 | |||||
| 25 x 10R x 3 - 4 | 64 | 16 | 22 | 10 | 22 | |||||||||||||
| 25 x 25R x 3,5 - 3 | 39.945 | 39.973 | 21.4 | 95 | 25 | 30 | 35 | 14 | 35 | |||||||||
| 32 x 5R x 3,5 - 4 | 49.935 | 49.97 | 31 | 28.4 | 50 | 80 | 65 | 9 | 48 | 20 | 10 | 14 | 9.7 | 71 | 14 | |||
| 32 x 10R x 3,969 - 5 | 27.9 | 77 | 16 | 28.5 | 12.5 | 28.5 | ||||||||||||
| 32 x 20R x 3,969 - 3 | 49.945 | 49.973 | 84 | 25 | 32 | 32 | ||||||||||||
| 32 x 32R x 3,969 - 3 | 120 | 40 | 50 | 50 | ||||||||||||||
| 40 x 5R x 3,5 - 5 | 62.931 | 62.966 | 39 | 36.4 | 63 | 93 | BB1 | 78 | 54 | 25 | 10 | 14.5 | 12 | 81.5 | 14.5 | M8x1 | 5 | |
| 40 x 10R x 6 - 4 | 38 | 33.8 | 70 | 16 | 22.5 | 11.8 | 22.5 | |||||||||||
| 40 x 12R x 6 - 4 | 75 | 25 | 25 | 12.5 | 25 | |||||||||||||
| 40 x 20R x 6 - 3 | 62.941 | 62.969 | 88 | 31.5 | 16.5 | 31.5 | ||||||||||||
| 40 x 40R x 6 - 3 | 142 | 40 | 45 | 51 | 25 | 51 | ||||||||||||
| 50 x 5R x 3,5 - 5 | 74.931 | 74.966 | 49 | 46.4 | 75 | 110 | 93 | 11 | 54 | 25 | 10 | 14.5 | 12 | 97.5 | 14.5 | |||
| 50 x 10R x 6 - 6 | 48 | 43.8 | 90 | 30 | 16 | 30 | 14.1 | 30 | ||||||||||
| 50 x 12R x 6 - 6 | 105 | 25 | 37.5 | 15 | 37.5 | |||||||||||||
| 50 x 20R x 6,5 - 5 | 74.941 | 74.969 | 43.4 | 132 | 51 | 20 | 51 | |||||||||||
| 50 x 40R x 6,5 - 3 | 149 | 45 | 59.5 | 18 | 59.5 | |||||||||||||
| 63 x 10R x 6 - 6 | 89.926 | 89.961 | 61 | 56.8 | 90 | 125 | 108 | 90 | 16 | 30 | 14 | 110 | 30 | |||||
| 63 x 20R x 6,5 - 5 | 94.936 | 94.964 | 56.4 | 95 | 135 | 115 | 13.5 | 132 | 25 | 51 | 20 | 117.5 | 51 | |||||
| 63 x 40R x 6,5 - 3 | 149 | 45 | 59.5 | 18 | 59.5 | |||||||||||||
| 80 x 10R x 6,5 - 6 | 104.926 | 104.961 | 78 | 73.3 | 105 | 145 | 125 | 95 | 16 | 32.5 | 14 | 127.5 | 32.5 | |||||
| 80 x 20R x 12,7 - 6 | 124.931 | 124.959 | 76 | 67 | 125 | 165 | 145 | 170 | 50 | 25 | 60 | 24 | 147.5 | 60 |
| 1) | Lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm |
Legend
|
Symbol |
Description |
Unit |
|
d0 |
Nominal diameter |
mm |
|
P |
Lead (R = right-hand) |
|
|
Dw |
Ball diameter |
mm |
|
i |
Number of ball track turns |
Attention: When setting up applications, do not allow components to collide with the front lube unit.
Nut housing MGD
Nut housing MGD
Steel nut housings MGD are designed for FEM-E-C, FDM-E-C, SEM-E-C and FED-E-B nutsCatalog
Service
CAD data
Front lube unit – ball screw assembly
Front lube unit – ball screw assembly
Catalog
Service
Arrestor nut
Arrestor nut
Catalog
Service
Required and supplementary documentation
For further instructions and information, please refer to the documentation for this product.
You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.
If you are unsure about using this product, please contact Bosch Rexroth.
