BOSCH REXROTH
R150660050
$320.99 USD
- BOSCH REXROTH
- Material:R150660050
- Model:HOUSING MGD
Quantity in stock: 2
The Bosch Rexroth HOUSING (R150660050) is a robust and precision-engineered steel nut housing designed to be utilized with specific Rexroth ball screw assemblies. It is part of the product group identified for compatibility with FEMEB, FDMEB, SEMEC, and FEDEB nuts. This particular model is tailored for Size E and Size H configurations, ensuring a perfect fit with the corresponding nominal size nuts. The housing features a hole pattern designated as BB Size L, which facilitates precise mounting and alignment within various applications. The HOUSING MGD model by Bosch Rexroth is crafted to enhance the performance of ball screw assemblies by providing a stable and secure enclosure for the ball screw nut. This accessory plays a critical role in maintaining the integrity and accuracy of linear motion systems where it is employed. Its construction from high-quality materials ensures durability and resistance to wear, contributing to the longevity of the entire ball screw assembly. This nut housing is particularly suited for use in environments that demand precise linear movements, such as in CNC machinery, automation equipment, and advanced manufacturing systems where reliability and precision are paramount. The design ensures that it can withstand the rigors of continuous operation while maintaining its structural integrity. In summary, the Bosch Rexroth HOUSING MGD (R150660050) offers a dependable solution for securing FEMEB, FDMEB, SEMEC, and FEDEB nuts in high-precision ball screw assemblies. Its compatibility with Size E and Size H sizes along with its specialized BB Size L hole pattern makes it an essential component for enhancing the functionality and reliability of linear motion systems that require exacting standards.
Housing MGD 63x10
Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts, size 63x10
Unpacked Weight: 6.585 kg
| Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size A | 100 |
| Productgroup ID | 17 |
| Size E1 | 120 |
| Size D1 h7 | 90 |
| Size N | 37 |
| Size H | 55 |
| Size E2 | 46 |
| Size D6 | 108 |
| Size S | 17 |
| Hole pattern | BB1 |
| Size T1 | 30 |
| Size T2 | 20 |
| Size L | 89 |
| Accessories for screw drives | Nut housing |
| Size B | 75 |
| Weight | 6.585 |
| Size H1 | 110 |
| Nominal size | 63x10 |

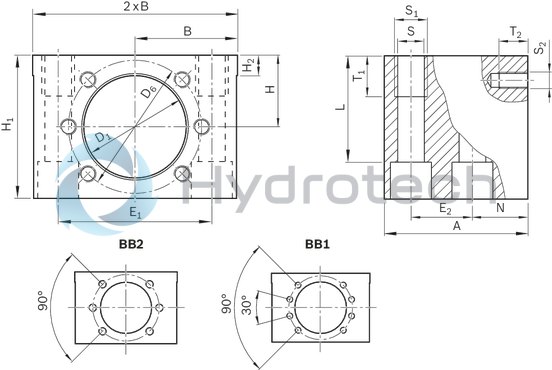

Technical data and dimensions
|
Size |
Mass |
Hole pattern |
Hex socket cap screw |
A |
B |
D1 |
D6 |
E1 |
E2 |
H |
H1 |
H2 |
N |
S |
S1 |
T1 |
S2 |
T2 |
Clamping length |
|
d0 x P x Dw |
ISO 4762 |
H7 |
L |
||||||||||||||||
|
kg |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||||||||
|
16 x 5R/L x 3 16 x 10R x 3 16 x 16R x 3 |
0.91 | BB2 | M8 | 50 | 35 mm ±0.01 | 28 | 38 | 50 mm ±0.1 | 20 mm ±0.1 | 24 mm ±0.01 | 48 | 10 | 20 | 8.4 | M10 | 15 | M5 | 10 | 37 |
|
20 x 5R/L x 3 20 x 10R x 3 20 x 20R x 3,5 |
1.18 | 55 | 37.5 mm ±0.01 | 36 | 47 | 55 mm ±0.1 | 23 mm ±0.1 | 28 mm ±0.01 | 56 | 22 | M6 | 11 | 45 | ||||||
|
25 x 5R/L x 3 25 x 10R x 3 25 x 25R x 3,5 |
1.33 | 40 mm ±0.01 | 40 | 51 | 60 mm ±0.1 | 30 mm ±0.01 | 60 | 49 | |||||||||||
|
32 x 5R/L x 3,5 32 x 10R x 3,969 32 x 20R x 3,969 32 x 32R x 3,969 |
2.27 | M12 | 70 | 50 mm ±0.01 | 50 | 65 | 75 mm ±0.1 | 30 mm ±0.1 | 35 mm ±0.01 | 70 | 27 | 13 | M16 | 20 | M8 | 14 | 52 | ||
|
40 x 5R/L x 3,5 40 x 10R/L x 6 40 x 12R x 6 40 x 16R x 6 40 x 20R x 6 40 x 25R x 6 40 x 30R x 6 40 x 40R x 6 |
3.61 | BB1 | M14 | 80 | 60 mm ±0.01 | 63 | 78 | 90 mm ±0.1 | 35 mm ±0.1 | 42 mm ±0.01 | 84 | 12 | 31 | 15 | M18 | 25 | 17 | 65.5 | |
|
50 x 5R x 3,5 50 x 10R x 6 50 x 12R x 6 50 x 16R x 6 50 x 20R x 6,5 50 x 25R x 6,5 50 x 30R x 6,5 50 x 40R x 6,5 |
5.63 | M16 | 95 | 70 mm ±0.01 | 75 | 93 | 110 mm ±0.15 | 45 mm ±0.15 | 48 mm ±0.01 | 96 | 34 | 17 | M20 | 30 | M10 | 75 | |||
| 63 x 10R x 6 | 6.72 | 100 | 75 mm ±0.01 | 90 | 108 | 120 mm ±0.2 | 46 mm ±0.15 | 55 mm ±0.01 | 110 | 15 | 37 | 20 | 89 | ||||||
|
63 x 20R x 6,5 63 x 40R x 6,5 |
7.67 | 80 mm ±0.01 | 95 | 115 | 130 mm ±0.2 | 58 mm ±0.01 | 116 | M12 | 95 | ||||||||||
| 80 x 10R x 6,5 | 8.6 | 85 mm ±0.01 | 105 | 125 | 140 mm ±0.2 | 63 mm ±0.01 | 126 | 105 | |||||||||||
| 80 x 20R x 12,7 | 10.53 | 95 mm ±0.01 | 125 | 145 | 160 mm ±0.2 | 73 mm ±0.01 | 146 | 22 | 125 |
Legend
|
Symbol |
Description |
|
d0 |
Nominal diameter |
|
P |
Lead |
|
DW |
Ball diameter |
Attention: If a ball screw assembly with a front lube unit is used, the front lube unit may project beyond the housing. This must be considered when calculating the stroke.
In addition to bolting, the housings should be locked in place by positive means (for example, two pins with a diameter equal to that of the screws).
We recommend using screws with a strength class of 8.8.
Tightening torque
See “Installation” section “Installation in the machine”
Reference edges are formed on both sides.
Required and supplementary documentation
For further instructions and information, please refer to the documentation for this product.
You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.
If you are unsure about using this product, please contact Bosch Rexroth.
