BOSCH REXROTH
R150640020
$193.92 USD
- BOSCH REXROTH
- Material:R150640020
- Model:HOUSING MGS 40X5/32X20/32
Quantity in stock: 3
The Bosch Rexroth HOUSING MGS 40X5/32X20/32 (R150640020) is a meticulously engineered nut housing designed for high-precision linear motion systems. This particular model is part of the comprehensive product group that caters to the integration with Rexroth ball screw assemblies, specifically tailored for use with FEMES, FDMES, FEPES, and SEMES nuts. It is crafted to accommodate nominal size specifications, ensuring a perfect fit and optimal performance. The MGS 40X5/32X20/32 nut housing boasts a robust construction and is made to provide secure mounting and support for the corresponding ball screws. It features a zero-clearance adjustable hole pattern for single nuts BB, as well as a hole pattern for single nuts with flange BB. These configurations allow for precise adjustments and alignment, which are crucial in applications requiring high levels of accuracy. Additionally, this nut housing is designed with size E, size H, and size L dimensions in mind to ensure compatibility with various setups within the product group ID. The steel construction of the MGS series housings offers durability and reliability in operation. As an accessory to Rexroth ball screw assemblies, it plays an integral role in maintaining system integrity and enhancing overall performance. In summary, the Bosch Rexroth HOUSING MGS 40X5/32X20/32 (R150640020) represents a key component in linear motion technology where precision and stability are paramount. Its specialized design aligns seamlessly with certain Rexroth ball screw nuts to form a complete solution that meets stringent quality standards.
Housing MGS 32x20/32/64 - 40x5
Steel nut housings MGS are designed for FEM-E-S, FDM-E-S, FEP-E-S and SEM-E-S nuts, size 32x20/32/64 - 40x5
Unpacked Weight: 2.328 kg
| Steel nut housings MGS are designed for FEM-E-S, FDM-E-S, FEP-E-S and SEM-E-S nuts |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size A | 60 |
| Productgroup ID | 17 |
| Size E1 | 82 |
| Size D1 h7 | 56 |
| Size N | 15 |
| Size H | 42 |
| Size E2 | 30 |
| Size D6 | 68 |
| Size S | 13 |
| Hole pattern zero-clearance adjustable single nut | BB7 |
| Hole pattern single nut with flange | BB4 |
| Size T1 | 20 |
| Size T2 | 12 |
| Size L | 64 |
| Accessories for screw drives | Nut housing |
| Size B | 52.5 |
| Weight | 2.328 |
| Size H1 | 82 |
| Nominal size | 32x20/32/64 - 40x5 |
| 1) | for size 16x5/16x10 |

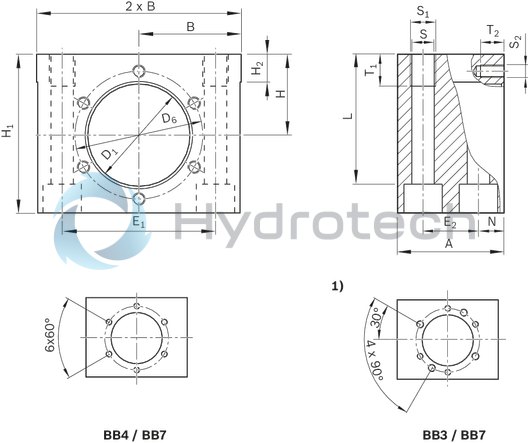

Technical data and dimensions
|
Size |
Mass |
Hole pattern |
Hex socket cap screw |
A |
B |
D1 |
D6 |
E1 |
E2 |
H |
H1 |
H2 |
N |
S |
S1 |
T1 |
S2 |
T2 |
Clamping length |
|
|
d0 x P x Dw |
FEM-E-S/FDM-E-S/FEP-E-S |
SEM-E-S |
ISO 4762 |
H7 |
L |
|||||||||||||||
|
kg |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||||||||
|
16x5R/L x 3 16x10R x 3 |
0.85 | BB3 | BB7 | M8 | 40 | 35 mm ±0.01 | 28 | 40 | 52 mm ±0.1 | 20 mm ±0.1 | 28 mm ±0.01 | 55 | 10 | 10 | 8.4 | M10 | 15 | M6 | 10 | 44 |
|
16x16R x 3 20x5R/L x 3 20x10R x 3 |
1.05 | BB4 | 37.5 mm ±0.01 | 33 | 45 | 56 mm ±0.1 | 32 mm ±0.01 | 62 | 51 | |||||||||||
|
20x20R x 3,5 20x40R x 3,5 25x5R/L x 3 25x10R x 3 |
1.178 | 42.5 mm ±0.01 | 38 | 50 | 63 mm ±0.1 | 34 mm ±0.01 | 65 | 54 | ||||||||||||
|
25x25R x 3,5 32x5R/L x 3,5 32x10R x 3,969 |
1.746 | M10 | 50 | 47.5 mm ±0.01 | 48 | 60 | 72 mm ±0.1 | 26 mm ±0.1 | 38 mm ±0.01 | 75 | 12 | 10.5 | M12 | 61 | ||||||
|
32x20R x 3,969 32x32R x 3,969 32x64R x 3,969 40x5R/L x 3,5 |
2.367 | M12 | 60 | 52.5 mm ±0.01 | 56 | 68 | 82 mm ±0.1 | 30 mm ±0.1 | 42 mm ±0.01 | 82 | 12 | 15 | 13 | M16 | 20 | 12 | 64 | |||
|
40x10R/L x 6 40x20R x 6 |
3.587 | M14 | 65 | 60 mm ±0.01 | 63 | 78 | 93 mm ±0.1 | 35 mm ±0.1 | 50 mm ±0.01 | 98 | 15 | M18 | 25 | M8 | 14 | 79.5 | ||||
|
40x40R x 6 50x10R x 6 50x16R x 6 |
6.187 | M16 | 80 | 70 mm ±0.01 | 72 | 90 | 108 mm ±0.15 | 46 mm ±0.15 | 58 mm ±0.01 | 113 | 17 | 17 | M20 | 30 | M10 | 18 | 92 | |||
| 50x5R x 3,5 | 4 | M14 | 65 | 65 mm ±0.01 | 68 | 82 | 100 mm ±0.15 | 35 mm ±0.15 | 52 mm ±0.01 | 101 | 15 | 15 | M18 | M8 | 14 | 82.5 | ||||
|
50x20R x 6,5 50x40R x 6,5 63x10R x 6 |
7.173 | M16 | 80 | 75 mm ±0.01 | 85 | 105 | 121 mm ±0.15 | 46 mm ±0.15 | 65 mm ±0.01 | 128 | 15 | 17 | 17 | M20 | M10 | 18 | 107 | |||
| 80x10R x 6,5 | 9.334 | 85 mm ±0.01 | 105 | 125 | 140 mm ±0.2 | 78 mm ±0.01 | 153 | M12 | 20 | 132 | ||||||||||
Legend
|
Symbol |
Description |
|
d0 |
Nominal diameter |
|
P |
Lead |
|
DW |
Ball diameter |
Attention: If a ball screw assembly with a front lube unit is used, the front lube unit may project beyond the housing. This must be considered when calculating the stroke.
In addition to bolting, the housings should be locked in place by positive means (for example, two pins with a diameter equal to that of the screws S2).
We recommend using screws with a strength class of 8.8.
Tightening torque
see general technical notes and information, “Installation”
Reference edges are formed on both sides.
Required and supplementary documentation
For further instructions and information, please refer to the documentation for this product.
You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.
If you are unsure about using this product, please contact Bosch Rexroth.
