R141901001
$7.78
- BOSCH REXROTH
- Material:R141901001
- Model:CLAMPING PIECE PSK 60
Quantity in stock: 30
Unpacked Weight: 0.0059 kg
Recommended number of clamping fixtures for linear modules -040:
Type 1: 6 pieces per side/m Type 2: 4 pieces per side/m Type 3: 3 pieces per side/m
Recommended number of clamping fixtures for linear modules -065 and up:
Type 2: 3 per meter and side

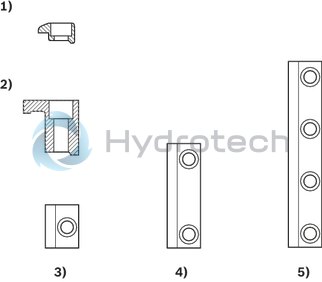

| 1) | Size -040 |
| 2) | Size from -065 |
| 3) | Type 1 |
| 4) | Type 2 |
| 5) | Type 3 |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Number of bores N | 1 |
| Tightening torque of fixing screws footnote | at friction factor 0.125, in accordance with strength class 8.8 |
| Size A | 22 |
| Productgroup ID | 17 |
| Size F | 15 |
| Size H | 6.5 |
| Mechanical accessories for linear axes | Clamping fixtures |
| Size E | 4.8 |
| Outer diameter D | 10 |
| Size D | 10 |
| Type | 1 |
| Tightening torque of fastening screws | 5.5 |
| Weight | 0.0059 |
| Nominal size | CKK-/CKR-070,MKK-/MKR-040,PSK-060,VKK-050 |
Technische Daten
|
Size |
Part number |
MA 1) |
|
Nm |
||
| CKK-/CKR-070; MKK-/MKR-040; PSK-060; VKK-050 | R141901001 | 5.5 |
| CKK-/CKR-070; MKK-/MKR-040; VKK-050 | R141901043 | |
| MKK-/MKR-040; VKK-050 | R141901044 | |
| MKK-/MKR-065; MKK-/MKR-/MLR-080 | R117519024 | 9.5 |
| CKK-/CKR-200; MKK-/MKR-/MLR-110; OBB-120 | R117529026 | 23 |
| MKK-/MKR-165 | R117539014 | 46 |
| MKR-145 | R117529044 |
| 1) | for friction factor 0.125, as per strength class 8.8 |
Legend
|
Symbol |
Description |
Unit |
|
MA |
Tightening torques of fastening screws |
Nm |
| 1) | Size -040 |
| 2) | Size from -065 |
| 3) | Type 1 |
| 4) | Type 2 |
| 5) | Type 3 |

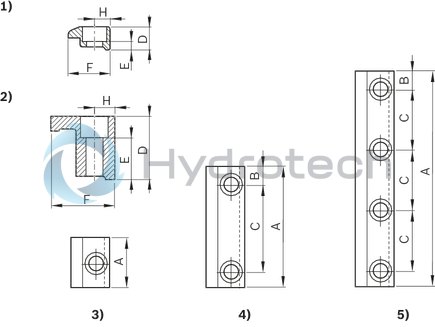

Dimensions
|
Size |
Part number |
A |
B |
C |
D |
E |
F |
Thread 1) |
H |
Number of holes |
|
N |
||||||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||
| CKK-/CKR-070; MKK-/MKR-040; PSK-060; VKK-050 | R141901001 | 22 | - | - | 10 | 4.8 | 15 | M5 | 6.5 | 1 |
| CKK-/CKR-070; MKK-/MKR-040; VKK-050 | R141901043 | 57 | 8.5 | 40 | 15.1 | 2 | ||||
| MKK-/MKR-040; VKK-050 | R141901044 | 77 | 20 | 15 | 4 | |||||
| MKK-/MKR-065; MKK-/MKR-/MLR-080 | R117519024 | 78 | 14 | 50 | 20 | 11.5 | 20 | M6 | 7 | 2 |
| CKK-/CKR-200; MKK-/MKR-/MLR-110; OBB-120 | R117529026 | 108 | 19 | 70 | 27.5 | 16.3 | 29 | M8 | 9 | |
| MKK-/MKR-165 | R117539014 | 163 | 29 | 105 | 40.5 | 27 | 41 | M10 | 13 | |
| MKR-145 | R117529044 | 32 | 18.5 |
| 1) | Countersink ISO 4762 |
