BOSCH REXROTH
R109953088

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

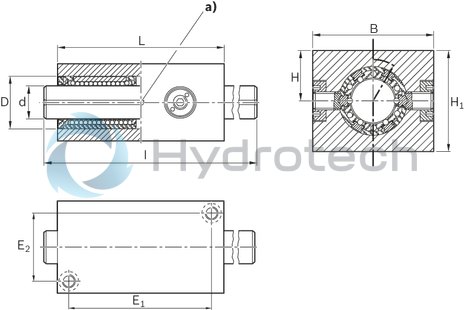

The Bosch Rexroth LINEAR-SET LSADR2T-30-WV-2000 (R109953088) is a high-precision linear motion component designed for applications requiring smooth, accurate, and torqueresistant linear movement. This linear set features a lightweight precision tandem housing made from aluminum and includes a precision steel shaft with two ball guide grooves. The shaft diameter 'd' is included in the standard length as per the provided table. It comes without seals, indicating that it's intended for use in environments where additional sealing against contaminants is not necessary. The LSADR2T-30-WV-2000 model boasts two torqueresistant linear bushings and torque-transmitting, hardened steel bearing plates that are set to zero clearance by the manufacturer to ensure minimal play and precise movement. These features provide stability against cocking loads, which is crucial for maintaining accuracy in dynamic applications. The unit can be externally sealed and is relubricatable, allowing for easy maintenance and extended service life. This linear set is part of the Series Torque Productgroup ID and comes in Size E. It has been engineered with a dynamic load capacity 'C', ensuring it can handle loads effectively when both linear bushings are under equal pressure. The static load rating 'C' indicates its capacity to withstand stationary or slowly moving loads. Additionally, the dynamic torsional moment load capacity 'Mt' specifies its ability to resist twisting forces during operation. With a permissible ambient temperature range from minimum to maximum degrees Celsius (°C), it can operate effectively within various environmental conditions. The LSADR2T-30-WV-2000 has a maximum permissible linear speed 'vmax', which defines its top operating speed limit, while its mass 'm' kg/m provides information on its weight per unit length. Designed as a Tandem format of linear bushings (Format T), this model ensures reliable performance in applications where dual-bushing systems are required or preferred for enhanced load distribution and stability. Its capabilities make it an ideal choice for sophisticated mechanical systems requiring precise guidance and support under torsional stress.
