BOSCH REXROTH
R109622080

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

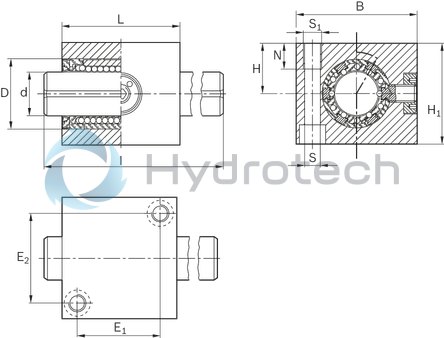

The Bosch Rexroth LINEAR-SET LSSDR1-20-WV-500 (R109622080) is a high-quality linear motion set designed for precise and torqueresistant applications. This linear set consists of a precision steel housing and a matching hardened steel shaft with one ball guide groove, ensuring smooth and accurate movement. The torqueresistant linear bushing, paired with the steel bearing plates set to zero clearance ex works, offers exceptional stability against cocking loads and dynamic torsional moment load capacity, making it ideal for applications where high rigidity and precise motion control are required. The shaft diameter 'd' and standard length are specified in accompanying tables, allowing for easy integration into various designs without the need for additional seals. The product operates effectively within a broad temperature range from 'C' to 'C', accommodating diverse working environments. Its outer diameter 'D', size 'E', and weight specifications ensure compatibility with a wide range of installations. The dynamic load capacity 'C' and static load rating 'C' represent minimal values due to variable loading directions, providing users with reliable performance data. This linear set is part of the Bosch Rexroth Torque Productgroup ID series, which is known for its robustness in handling torsional loads. With its max acceleration 'amax' and maximum permissible linear speed 'vmax', it ensures efficient operation at high speeds while maintaining precision. The mass of the unit is indicated in kg/m, reflecting the lightweight yet durable construction of this product. Overall, the Bosch Rexroth LINEAR-SET LSSDR1-20-WV-500 is a versatile solution that provides reliable linear motion capabilities suitable for various applications demanding high precision and torsional resistance without external sealing requirements.
