BOSCH REXROTH
R108763020

$377.40 USD

BOSCH REXROTH
Material:R108763020
Model:LSATO-A-30-DD

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth LINEAR-SET LSATO-A-30-DD (R108763020) is a high-quality linear motion set designed for applications that demand precise linear movement and high rigidity. This product features a lightweight precision tandem housing made from aluminum, which houses two super linear bushings A and incorporates external seals. The set is designed to be relubricatable, ensuring long-term performance and ease of maintenance. Equipped with a shaft diameter 'd' that allows for clamped fastening, this linear set provides a self-alignment feature that is part of the Series Super A. It offers low frictional drags due to its integrated wiper seals on both sides, which are effective even when not under radial load. The dynamic load capacity 'C' indicates the system's ability to handle load capacities equally across both bushings in the main direction of loading. For environments with varying temperatures, the LINEAR-SET LSATO-A-30-DD operates within an ambient temperature range of -20°C to +80°C. Its design accommodates maximum acceleration 'amax' and can achieve a breakaway force that ensures smooth initiation of movement. The system's static load rating 'C' ensures stability even when stationary loads are applied. With an outer diameter 'D', this linear set can support long guides while maintaining a high level of rigidity necessary for precise operations. Its dynamic longitudinal moment load capacity 'ML' and static longitudinal moment load capacity further contribute to its robust performance in various applications. The LINEAR-SET LSATO-A-30-DD has been tested for total travel distances significantly large without failure, highlighting its durability and reliability. Weighing only 0.7 kg, it presents an efficient solution for systems requiring light yet sturdy components. Additionally, it is available as a Linear Motion Slide, offering versatility for different deployment scenarios where guided linear motion is required.

Linear set (aluminum), TO-A-30, with two seals

Linear set (aluminum)
Tandem, open
With super LB A
Shaft diameter d = 30
With two seals
Version: Standard

Unpacked Weight: 1.659 kg

For long guides requiring shaft support and a high level of rigidity.

Lightweight precision tandem housing (aluminum)
Two super linear bushings A
External seals
Relubricatable
Also available as linear motion slide.

Data Sheet	Download Data Sheet
2D CAD	Download 2D CAD
2D CAD	Download 2D CAD
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Footnote shaft radial clearance h6	Clamped (fastened).
Series	Super A (with self-alignment feature)
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Size E1	85
Footnote dynamic load capacity C	Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.
Size N	26
Size H	35
Max. acceleration amax	150
Permissible ambient temperature	-10 °C ... +80 °C
Outer diameter D	47
Size H3	16
Breakaway force	6
Maximum permissible linear speed vmax	3
Size D	47
Footnote static load capacity C0	Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.
Size N1	50.5
Static load rating C0	5760
Note: Maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10⁵ m to 100 • 10⁵ m without failure.
Friction force	2.5
Productgroup ID	17
Size W	14
Permissible ambient temperature (max)	+80
Size E2	62
Dynamic longitudinal moment load capacity ML	163
Angle α	57
Permissible ambient temperature (min)	-10
Size S	10.5
Shaft diameter d	30
Linear guide type	Linear bushing and shaft
Filter for linear bushings and shafts	Linear sets with linear bushings
Format of linear bushings	TO – Tandem, open
Dynamic load capacity C	8150
Static longitudinal moment load capacity ML0	116
Size L	152
Size B	84
Weight	1.659
Size D1 with tolerance

General technical data

Ø d	mm	12	16	20	25	30	40	50
amax	m/s²	150
vmax 1)	m/s	3
m	kg	0.22	0.34	0.62	1.17	1.68	3.15	5.5
FR 2)	N	0.8	1	1.5	2	2.5	3	4
Breakaway force	N	1.5	2	3	4.5	6	8	10
Shaft radial clearance h6 3)	µm	+ 28 - 1		+ 31 - 2			+ 35 - 3
Operating conditions
Permissible ambient temperature (min ... max)		-10 °C ... +80 °C

1)	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.
2)	Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
3)	Clamped (fastened).

Load capacities and load moments

Ød	mm	12	16	20	25	30	40	50
C 1)	N	1720	2430	4170	8180	8150	14000	20300
C0 1)	N	1020	1660	2360	4940	5760	8960	13240
ML	Nm	11	18	60	141	163	328	630
ML0	Nm	7	13	47	86	116	212	415

1)	Dynamic load rating when both Linear Bushings are under equal load. The dynamic load ratings apply for the main direction of loading.
	The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26.

Legend

Symbol	Description	Unit
Ød	Shaft diameters	mm
amax	Maximum acceleration travel	m/s2
C	Dynamic load capacity	N
C0	Static load capacity	N
FR	Friction force	N
m	Mass	kg
ML	Dynamic longitudinal moment load capacity	Nm
ML0	Static longitudinal moment load capacity	Nm
vmax	Maximum permissible speed	m/s

For load in the direction of opening, please refer to the loading diagrams (see "Diagrams" section).

Impact of load direction on load rating of open Linear Bushings

The load ratings C and C0 apply for the main direction of loading ρ = 0°. For all other load directions, the load ratings must be multiplied by the factors fρ (dynamic load rating C) or fρ0 (static load rating C0).

Installing specific Linear Bushings can prevent reductions in load capacity (see Linear Set with side opening).

Reduced load capacity with short stroke

In case of short stroke, the service life of the shaft is less than that of the super Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .

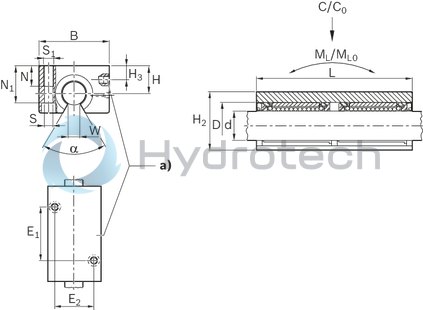

technical illustration-R108763020-Linear set (aluminum), TO-A-30, with two seals

1)	fs = factor
2)	s = movement path

Reduced load capacity with high load

If the load F on a Super Linear Bushing A is more than F > 0.5 x C, the dynamic load rating C decreases.

Definition of dynamic load ratings

Self-alignment feature

The self-alignment feature in the steel bearing plates and machined ball guide grooves ensure quieter travel. The flow chart shows a comparison with a conventional Linear Bushing. The example is based on a load of 800 N and misalignment of about 8 ft (caused by shaft deflection).

Due to the self-alignment feature, two super Linear Bushings must be used on at least one of the shafts in the guide.

	FR = Frictional drag
	s = travel distance
	v = travel speed

a)	Super Linear Bushing, A Ød 20
b)	Conventional Linear Bushing, Ød 20

a)	Lubricating hole M8 x 1 sealed with plastic cap

Dimensions

Ød	mm	12	16	20	25	30	40	50
D	mm	22	26	32	40	47	62	75
α	°	66	68	55	57		56	54
B	mm	42	50	60	74	84	108	130
E1		40 mm ±0.15	45 mm ±0.15	55 mm ±0.15	70 mm ±0.15	85 mm ±0.15	100 mm ±0.15	125 mm ±0.2
E2		30 mm ±0.15	36 mm ±0.15	45 mm ±0.15	54 mm ±0.15	62 mm ±0.15	80 mm ±0.15	100 mm ±0.2
H	mm	18	22	25	30	35	45	50
Tolerance for H 1)	µm	+ 8 - 16
H2	mm	30	35	42	51	60	77	88
H3	mm	10	12	13	15	16	20	10
L	mm	76	84	104	130	152	176	224
N	mm	13		18	22	26	34
N1	mm	25	29.5	35.5	43	50.5	66	77
S 2)	mm	5.3		6.6	8.4	10.5	13.5
S1		M6		M8	M10	M12	M16
W 3)	mm	6.5	9		11.5	14	19.5	22.5

1)	Clamped (fastened) in relation to Ø d.
2)	Fixing screws DIN 6912-8.8.
3)	Minimum size in relation to Ø d.

Life expectancy calculation

Radial clearance

The radial clearance values shown in the table have been determined from statistics and correspond to values expected in practice. The adjustable Linear Sets come clamped to an h5 shaft (lower limit) and set to zero clearance.

Vertical dimension

The tolerance values for the vertical dimension "H" for the Linear Sets shown in the table have been determined from statistics and correspond to values expected in practice.
