BOSCH REXROTH
R108181240

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

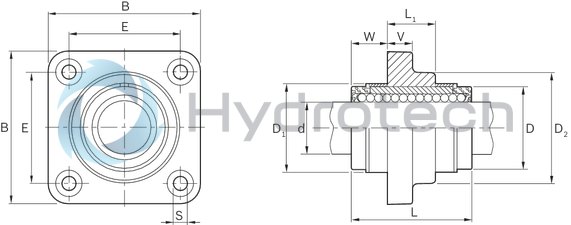

The Bosch Rexroth LINEAR-SET LSGF-B-12-DD (R108181240) is a high-quality linear set designed for precise linear motion applications. This product features a standard precision flanged housing made from lamellar graphite cast iron and includes a super linear bushing B without a self-alignment feature. The set is equipped with two retaining rings and additional spacer rings crafted from steel, suitable for shaft diameters up to size V. It also incorporates integrated wiper seals on both sides, which are responsible for the noted friction force. The LINEAR-SET LSGF-B-12-DD has been engineered with a radial clearance that is not adjustable and does not come with initial lubrication, emphasizing its low-maintenance design. The dynamic load capacity C (size L) and static load rating C0 (size L) ensure the set can handle substantial loads while maintaining smooth operation. With an outer diameter of size E, this linear guide type offers robust support for the shaft while enabling precise positioning. This unit can operate within an ambient temperature range of -30°C to +80°C and can withstand maximum acceleration amax values specified by the manufacturer. Additionally, it allows for a maximum permissible linear speed vmax, making it suitable for applications requiring high-speed motion. Service life tests have demonstrated reliable performance over significant travel distances ranging from 100 km to 200 km without failure. Weighing in at 0.45 kg, the LINEAR-SET LSGF-B-12-DD is optimized for vertical shaft designs as part of Bosch Rexroth's modular Linear Set series. Its breakaway force and frictional characteristics are carefully balanced to ensure efficient operation under various conditions without radial load. This product is ideal for users seeking precise linear motion solutions that prioritize durability and performance in their mechanical design projects.
