BOSCH REXROTH
R107825020

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

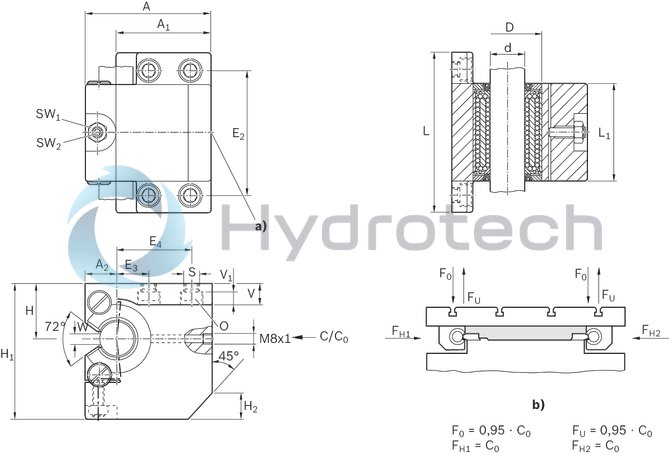

The Bosch Rexroth LINEAR-SET LSRSE-50-DD (R107825020) is a high-precision linear motion component designed for a variety of applications requiring precise and smooth linear movement. This linear set is composed of a standard precision housing with a side opening and an adjustable steel radial linear bushing equipped with two wiper seals, ensuring protection against contaminants and the ability to be relubricated for extended service life. The shaft diameter 'd' is specifically engineered to accommodate the accompanying bushing, providing an optimal fit. This model boasts a robust design capable of withstanding dynamic load capacities in the main direction of loading, indicated by the arrow direction FsubHsub or FsubHsub. It features a maximum acceleration (amax) and can operate within a permissible ambient temperature range, ensuring reliability even in fluctuating environmental conditions. The outer diameter 'D' and size 'SW' are meticulously crafted to meet precise specifications, while the breakaway force and maximum permissible linear speed (vmax) are indicative of its capability to handle high-speed applications. The LINEAR-SET LSRSE-50-DD also has an impressive static load rating (C), which, along with the dynamic load capacity, applies when loaded in the main direction. The friction force is minimized due to its design, and radial clearance is carefully controlled; it comes with an 'h' shaft lower limit and is set to zero-clearance before delivery for immediate installation without the need for further adjustments. This product falls under the product group ID that specifies its classification as a linear guide type with linear bushing and shaft. Its format is categorized as SE – with side opening, adjustable – which allows for significant versatility in application. However, it's important to note that there may be a reduction in load capacity when open Linear Bushings are loaded counter to the direction of opening. The weight specification underscores its solid yet manageable build quality suitable for various industrial applications where precision linear motion is critical.
