BOSCH REXROTH
R106764040
$266.30 USD
- BOSCH REXROTH
- Material:R106764040
- Model:LSGO-A-40-DD
Quantity in stock: 0
The Bosch Rexroth LINEAR-SET LSGO-A-40-DD (R106764040) is a high-quality linear motion set designed for applications requiring precise and smooth linear movement. This product features a standard precision housing made from spheroidal graphite cast iron and a super linear bushing A with self-alignment capabilities, ensuring optimal performance and durability. The set includes two integrated wiper seals that maintain cleanliness by preventing the ingress of contaminants, which is crucial for maintaining the system's longevity and reliability. The LINEAR-SET LSGO-A-40-DD is equipped with a shaft diameter 'd' that provides a stable platform for linear motion, while the locating screw secures the bushing in place. The set is capable of handling dynamic load capacities with ease, as specified by the manufacturer's guidelines for main loading directions. It also has an impressive maximum acceleration (amax) and can operate within a wide range of ambient temperatures, from minimum to maximum specified degrees Celsius. With an outer diameter 'D', this linear set can endure breakaway forces without compromising its integrity and can achieve maximum permissible linear speeds (vmax), making it suitable for various industrial applications. The product's static load rating 'C' further emphasizes its capability to withstand loads without deformation or failure. This linear guide type is specifically designed for long guides that require shaft support and exhibit high levels of rigidity. Its weight of . kg makes it substantial enough to contribute to system stability without being overly burdensome. The Bosch Rexroth LINEAR-SET LSGO-A-40-DD is ideal for use in environments where precision and robustness are paramount, offering reliable performance over its service life, which tests have indicated ranges significantly without failure under specified conditions.
Linear set (steel), O-A-40, with two seals
Linear set (steel)
Open
With super LB A
Shaft diameter d = 40
With two seals
Version: Standard
Unpacked Weight: 2.062 kg
For long guides requiring shaft support and a high level of rigidity.
| Precision housing (spheroidal graphite cast iron/steel) |
| super linear bushing A with self-alignment feature |
| Secured with locating screw |
| Integrated wiper seals |
| Data Sheet | Download Data Sheet |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size V | 12 |
| Series | Super A (with self-alignment feature) |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Size B1 (linear bushing) | 56 |
| Size E1 | 86 |
| Footnote dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Size H | 45 |
| Max. acceleration amax | 150 |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Outer diameter D | 62 |
| Breakaway force | 8 |
| Maximum permissible linear speed vmax | 3 |
| Size D | 62 |
| Footnote static load capacity C0 | The load capacities apply for the main direction of loading. |
| Static load rating C0 | 4480 |
| Note: Maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure. |
| Friction force | 3 |
| Size A | 108 |
| Productgroup ID | 17 |
| Size W | 19.5 |
| Permissible ambient temperature (max) | |
| Size E2 | 58 |
| Angle α | 56 |
| Size SW | 4 |
| Permissible ambient temperature (min) | |
| Size S | 9 |
| Shaft diameter d | 40 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Linear sets with linear bushings |
| Format of linear bushings | O – Open |
| Dynamic load capacity C | 8620 |
| Size L | 80 |
| Size B | 78 |
| Weight | 2.062 |
| Size D1 with tolerance |
General technical data
|
Ø d |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
amax |
m/s² |
150 | ||||||
|
vmax 1) |
km/h |
3 | ||||||
|
m |
kg |
0.13 | 0.2 | 0.36 | 0.7 | 1.05 | 2.05 | 2.77 |
|
FR 2) |
N |
0.8 | 1 | 1.5 | 2 | 2.5 | 3 | 4 |
|
Breakaway force |
N |
1.5 | 2 | 3 | 4.5 | 6 | 8 | 10 |
|
Shaft radial clearance h6 |
µm |
+ 28 - 1 |
+ 31 - 2 |
+ 35 - 3 |
||||
|
Operating conditions |
||||||||
|
Permissible ambient temperature (min ... max) |
-10 °C ... +80 °C | |||||||
| 1) | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure. |
| 2) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
Load capacities and load moments
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
C 1) |
N |
1060 | 1280 | 2570 | 5040 | 5020 | 8620 | 12500 |
|
C0 1) |
N |
510 | 630 | 1180 | 2470 | 2880 | 4480 | 6620 |
| 1) | The load ratings apply for the main direction of loading. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
amax |
Maximum acceleration travel |
m/s2 |
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
FR |
Friction force |
N |
|
m |
Mass |
kg |
|
vmax |
Maximum permissible speed |
m/s |
For load in the direction of opening, please refer to the loading diagrams (see "Diagrams" section).
Impact of load direction on load rating of open Linear Bushings
The load ratings C and C0 apply for the main direction of loading ρ = 0°. For all other load directions, the load ratings must be multiplied by the factors fρ (dynamic load rating C) or fρ0 (static load rating C0).
Installing specific Linear Bushings can prevent reductions in load capacity (see Linear Set with side opening).
Reduced load capacity with short stroke
In case of short stroke, the service life of the shaft is less than that of the super Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .
| 1) | fs = factor |
| 2) | s = movement path |
Reduced load capacity with high load
If the load F on a Super Linear Bushing A is more than F > 0.5 x C, the dynamic load rating C decreases.
Definition of dynamic load ratings
Self-alignment feature
The self-alignment feature in the steel bearing plates and machined ball guide grooves ensure quieter travel. The flow chart shows a comparison with a conventional Linear Bushing. The example is based on a load of 800 N and misalignment of about 8 ft (caused by shaft deflection).
Due to the self-alignment feature, two super Linear Bushings must be used on at least one of the shafts in the guide.
| FR = Frictional drag | |
| s = travel distance | |
| v = travel speed | |
| a) | Super Linear Bushing, A Ød 20 |
| b) | Conventional Linear Bushing, Ød 20 |

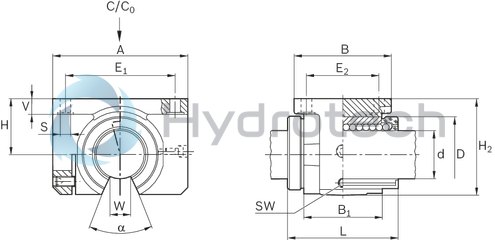

Dimensions
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
D |
mm |
22 | 26 | 32 | 40 | 47 | 62 | 75 |
|
α |
° |
66 | 68 | 55 | 57 | 56 | 54 | |
|
A 1) |
mm |
42 | 50 | 60 | 74 | 84 | 108 | 130 |
|
B |
mm |
32 1) | 35 1) | 42 1) | 54 1) | 60 1) | 78 1) | 70 1) |
|
B1 |
mm |
20 | 22 | 28 | 40 | 48 | 56 | 72 |
|
E1 |
32 mm ±0.15 | 40 mm ±0.15 | 45 mm ±0.15 | 60 mm ±0.15 | 68 mm ±0.2 | 86 mm ±0.2 | 108 mm ±0.2 | |
|
E2 |
23 mm ±0.15 | 26 mm ±0.15 | 32 mm ±0.15 | 40 mm ±0.15 | 45 mm ±0.2 | 58 mm ±0.2 | 50 mm ±0.2 | |
|
H |
mm |
18 | 22 | 25 | 30 | 35 | 45 | 50 |
|
Tolerance for H 2) |
µm |
+ 8 - 16 |
+ 13 - 21 |
|||||
|
H2 1) |
mm |
28 | 35 | 42 | 51 | 60 | 77 | 88 |
|
L |
mm |
32 | 36 | 45 | 58 | 68 | 80 | 100 |
|
S |
mm |
4.5 | 5.5 | 6.6 | 9 | |||
|
SW |
mm |
2.5 | 3 | 4 | 5 | |||
|
V 1) |
mm |
5.5 | 6.5 | 8 | 9 | 10 | 12 | 14 |
|
W 3) |
mm |
6.5 | 9 | 11.5 | 14 | 19.5 | 22.5 | |
| 1) | Tolerance ISO 8062-3 - DCTG 9. |
| 2) | Clamped (fastened) in relation to Ø d. |
| 3) | Minimum size in relation to Ø d. |
Radial clearance
The radial clearance values shown in the table have been determined from statistics and correspond to values expected in practice. The adjustable Linear Sets come clamped to an h5 shaft (lower limit) and set to zero clearance.
Vertical dimension
The tolerance values for the vertical dimension "H" for the Linear Sets shown in the table have been determined from statistics and correspond to values expected in practice.
Bolts
We recommend bolts in accordance with ISO 4762-8.8 for fastening the Linear Sets.
Lubrication
On-shaft relubrication on relubricatable Linear Bushing only until lubricant seeps out.
