BOSCH REXROTH
R106621600
$105.14 USD
- BOSCH REXROTH
- Material:R106621600
- Model:LSGE-M-16-DD
Quantity in stock: 0
The Bosch Rexroth LINEAR-SET LSGE-M-16-DD (R106621600) is a comprehensive linear motion set designed for precision applications where adjustable, zero-clearance or preloading capabilities are required. This set includes a high-quality steel linear bushing with integrated wiper seals on both sides to ensure protection against contaminants, thereby enhancing the longevity and reliability of the system. The bushing is contained within a precision housing made of lamellar graphite cast iron, which provides robust support and alignment. The shaft diameter 'd' of this linear set is meticulously engineered to ensure smooth motion, and it comes with two retaining rings for secure mounting. The product features a standard metal design that is suitable for various linear motion tasks. The friction force 'FR' and breakaway force are minimized to allow for smooth operation even without radial load, while the dynamic load capacity 'C' indicates that the system can handle minimal values given that orientation and direction of loading might vary. This LINEAR-SET LSGE-M-16-DD can withstand maximum accelerations ('amax') and operates efficiently within a wide range of permissible ambient temperatures. It has been designed to maintain its integrity between specified temperature ranges, ensuring consistent performance in diverse working environments. With an outer diameter 'D', this linear guide type set offers precise guidance for applications requiring meticulous control over movement. The radial clearance comes clamped to the h6 shaft lower limit and is set to zero-clearance, which facilitates fine-tuning for specific application requirements. Overall, the Bosch Rexroth LINEAR-SET LSGE-M-16-DD (R106621600) represents an advanced solution in linear motion technology with its adjustable features, high load capacities, and reliable protection against environmental factors—making it an excellent choice for various demanding applications.
Linear set (steel), E-M-16, with two seals
Linear set (steel)
Adjustable
With standard LB (metal)
Shaft diameter d = 16
With two seals
Version: Standard
Unpacked Weight: 0.257 kg
Linear sets with standard Linear Bushings, adjustable, for zero-clearance or preloads.
| Precision housing (lamellar graphite cast iron/steel) |
| Standard linear bushing with wiper seals |
| Two retaining rings |
| Data Sheet | Download Data Sheet |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size V | 6.5 |
| Series | Standard (metal) |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Size B1 (linear bushing) | 22 |
| Size E1 | 40 |
| Footnote dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Size H | 22 |
| Max. acceleration amax | 100 |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Outer diameter D | 26 |
| Breakaway force | 9 |
| Maximum permissible linear speed vmax | 2.5 |
| Size D | 26 |
| Footnote static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Static load rating C0 | 440 |
| Friction force | 3 |
| Size A | 50 |
| Radial clearance | Comes clamped to h5 shaft (lower limit) and set to zero-clearance |
| Productgroup ID | 17 |
| Permissible ambient temperature (max) | |
| Size E2 | 26 |
| Size SW | 3 |
| Permissible ambient temperature (min) | |
| Size S | 4.5 |
| Size A1 | 26 |
| Shaft diameter d | 16 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Linear sets with linear bushings |
| Format of linear bushings | E – Adjustable |
| Dynamic load capacity C | 580 |
| Size L | 36 |
| Footnote size H1 | Tolerance ISO 8062-3 - DCTG 9. |
| Size B | 35 |
| Weight | 0.257 |
| Size D1 with tolerance | |
| Size H1 | 42 |
General technical data
|
Ø d |
mm |
8 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
|
amax |
m/s² |
100 | 50 | ||||||||
|
vmax |
m/s |
2.5 | 2 | ||||||||
|
m |
kg |
0.09 | 0.16 | 0.27 | 0.45 | 0.89 | 1.33 | 2.51 | 3.68 | 6.73 | 15.32 |
|
FR 1) |
N |
0.5 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 |
|
Breakaway force |
N |
1 | 6 | 9 | 12 | 14 | 18 | 24 | 30 | 36 | 45 |
|
Radial clearance |
Comes clamped to h5 shaft (lower limit) and set to zero clearance | ||||||||||
|
Operating conditions |
|||||||||||
|
Permissible ambient temperature (min ... max) |
-10 °C ... +80 °C | ||||||||||
| 1) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
Load capacities and load moments
|
Ød |
mm |
8 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
|
C 1) |
N |
320 | 420 | 580 | 1170 | 2080 | 2820 | 5170 | 8260 | 11500 | 21000 |
|
C0 1) |
N |
240 | 280 | 440 | 860 | 1560 | 2230 | 3810 | 6470 | 9160 | 16300 |
| 1) | The load ratings indicated are minimal values as the orientation and direction of load cannot always be clearly defined. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
amax |
Maximum acceleration travel |
m/s2 |
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
FR |
Friction force |
N |
|
m |
Mass |
kg |
|
vmax |
Maximum permissible speed |
m/s |
Impact of load direction on load rating of closed Linear Bushings
The listed load ratings should be chosen depending on installation in minimum or maximum position and should be based on the calculations. If the load direction is clearly defined and the Linear Bushings can be installed in maximum position, the load ratings Cmax. (dynamic load rating) and C0 max (static load rating) can be used. If aligned installation is not possible or the load direction is not defined, the minimum load ratings must be used.
Definition of dynamic load ratings

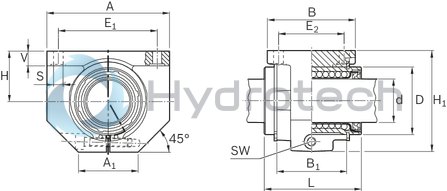

Dimensions
|
Ød |
mm |
8 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
|
D |
mm |
16 | 22 | 26 | 32 | 40 | 47 | 62 | 75 | 90 | 120 |
|
A 1) |
mm |
32 | 42 | 50 | 60 | 74 | 84 | 108 | 130 | 160 | 200 |
|
A1 1) |
mm |
16 | 21 | 26 | 28 | 38 | 41 | 51 | 57 | 70 | 85 |
|
B |
mm |
28 1) | 32 1) | 35 1) | 42 1) | 54 1) | 60 1) | 78 1) | 70 1) | 92 1) | 122 1) |
|
B1 |
mm |
14 | 20 | 22 | 28 | 40 | 48 | 56 | 72 | 95 | 125 |
|
E1 |
25 mm ±0.15 | 32 mm ±0.15 | 40 mm ±0.15 | 45 mm ±0.15 | 60 mm ±0.15 | 68 mm ±0.2 | 86 mm ±0.2 | 108 mm ±0.2 | 132 mm ±0.25 | 170 mm ±0.5 | |
|
E2 |
20 mm ±0.15 | 23 mm ±0.15 | 26 mm ±0.15 | 32 mm ±0.15 | 40 mm ±0.15 | 45 mm ±0.2 | 58 mm ±0.2 | 50 mm ±0.2 | 65 mm ±0.25 | 90 mm ±0.5 | |
|
H |
mm |
15 | 18 | 22 | 25 | 30 | 35 | 45 | 50 | 60 | 80 |
|
Tolerance for H 2) |
µm |
+ 6 - 17 |
+ 5 - 18 |
+ 5 - 19 |
+ 4 - 21 |
+ 8 - 25 |
+ 8 - 26 |
+ 7 - 28 |
|||
|
H1 1) |
mm |
28 | 35 | 42 | 50 | 60 | 70 | 90 | 105 | 125 | 170 |
|
L |
mm |
25 | 32 | 36 | 45 | 58 | 68 | 80 | 100 | 125 | 165 |
|
S |
mm |
3.4 | 4.5 | 5.5 | 6.6 | 9 | 11 | 13.5 | |||
|
SW |
mm |
2 | 2.5 | 3 | 5 | 6 | 8 | 10 | 14 | ||
|
V 1) |
mm |
5 | 5.5 | 6.5 | 8 | 9 | 10 | 12 | 14 | 15 | 22 |
| 1) | Tolerance ISO 8062-3 - DCTG 9. |
| 2) | Clamped (fastened) in relation to Ø d. |
Radial clearance
The radial clearance values shown in the table have been determined from statistics and correspond to values expected in practice. The R1066, R1068 and R1072 Linear Sets come clamped to an h5 shaft (lower limit) and set to zero clearance.
Vertical dimension
The tolerance values for the vertical dimension "H" for the Linear Sets shown in the table have been determined from statistics and correspond to values expected in practice.
Bolts
We recommend bolts in accordance with ISO 4762-8.8 for fastening the Linear Sets.
General mounting instructions
Linear sets with standard Linear Bushings do not come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Wiper seals for closed-type Super Linear Bushings and Standard Linear Bushings
Wiper seals for closed-type Super Linear Bushings and Standard Linear Bushings
Galvanized metal case Elastomer wiper sealCatalog
Instructions
Service
CAD data
Metal cases for Super Linear Bushings and standard Linear Bushings
Metal cases for Super Linear Bushings and standard Linear Bushings
Galvanized steelCatalog
Instructions
Service
CAD data
Locating screws for standard linear bushings
Locating screws for standard linear bushings
Locating screws are self-locking.Catalog
Instructions
Service
