BOSCH REXROTH
R105701000

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

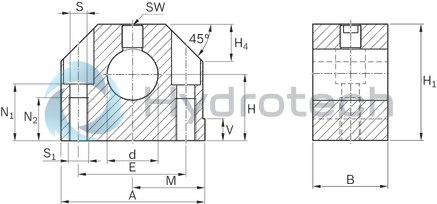

The Bosch Rexroth SHAFT SUPPORT BLOC WBA-10-FO (R105701000) is a high-quality shaft support block designed to provide a rigid mounting solution for linear motion applications. Crafted from durable aluminum, this support block is engineered to enhance the stability and precision of shaft operations. Its extrawide design ensures a secure hold on the shaft, which is further reinforced by the topside clamping feature that allows for better accessibility and convenience during installation or maintenance. The WBA-10-FO model boasts an innovative design with a reference edge that facilitates easy alignment, ensuring a quick and precise setup. This feature not only simplifies the installation process but also makes it more cost-effective compared to custom in-house designs. The clamping screw of this model has been optimized with a larger thread diameter, providing improved security and holding strength. This shaft support block is compatible with linear bushings and shaft accessories, making it versatile for use in various linear guide types. The thoughtful inclusion of both top and bottom fastening options—through drill holes for securing from above and threads for fastening from below—adds to the flexibility of mounting this component within different system configurations. The unit's precise design is complemented by its lightweight yet robust aluminum housing material, which contributes to the overall reliability without adding unnecessary weight to the assembly. Users will appreciate the ease of installation and alignment provided by this well-engineered product, which promises to enhance the performance of linear motion systems while offering an economical alternative to custom solutions.
