BOSCH REXROTH
R105412500

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

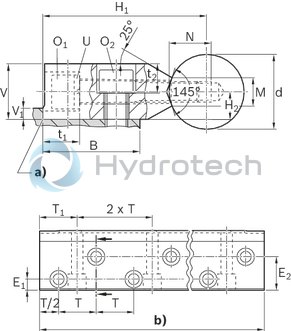

The Bosch Rexroth SHAFT SUPPORT RAIL WU25-AS1-600 (R105412500) is a high-quality component designed for precision linear motion applications. This shaft support rail is crafted from aluminum, offering a robust and lightweight solution for side mounting with standard bore spacing. Its compatibility with linear sets featuring side openings makes it suitable for heavy-duty linear guides, ensuring reliable performance even under high loads or over long stretches where self-supporting shafts are not viable due to potential warping. This model offers additional degrees of freedom in the circumferential direction compared to profiled guide rails, making it an excellent choice for applications that require precise linear motion without the risk of guide warp caused by imperfect substructures. The reference edge incorporated into the design facilitates easier alignment during installation, contributing to a more efficient setup process. The WU25-AS1-600 support rail is designed to be used with open linear bushings and is particularly beneficial in scenarios where extended or interconnected shafts are necessary, as it allows for virtually unlimited length configurations without sacrificing stability or performance. It caters to various requirements and can adapt to different application needs. With its aluminum construction, this shaft support rail ensures durability while maintaining a lighter weight compared to other materials. The product belongs to Bosch Rexroth's product group ID Size V and features a Size E bore spacing type along with a specified length L and material size M. It forms part of a comprehensive system that includes precision steel shafts with shaft support rails, tailored for use in sophisticated linear bushing and shaft setups. The meticulous attention to detail in its design, such as tolerances for the length prefix and suffix, underscores Bosch Rexroth's commitment to precision engineering in their components.
