BOSCH REXROTH
R105061200
$91.98 USD
- BOSCH REXROTH
- Material:R105061200
- Model:SHAFT SUPPORT RAIL WU12-AF1-600
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SHAFT SUPPORT RAIL WU12-AF1-600 (R105061200) is a high-quality component designed for creating precise linear guides, particularly where low height and extra rigidity are required. This aluminum shaft support rail features a flange and bore spacing type, tailored to accommodate linear bushings optimally by ensuring an ideal pressure angle for fitting the shaft. Its robust construction with large fastening bolts provides additional rigidity, making it suitable for applications with open linear bushings. Capable of handling long guides or high loads, the WU12-AF1-600 support rail is an excellent choice when self-supporting shafts are not viable due to potential shaft warping. It allows for unlimited length configurations through the use of interconnecting shafts. The design offers more degrees of freedom in the circumferential direction compared to profiled guide rails, proving advantageous in scenarios where other linear guides may falter because of imprecise substructures. The product comes in standard lengths as indicated in Bosch Rexroth's tables and is made from aluminum, ensuring a lightweight yet durable solution. It is part of a product group that caters to various requirements within the realm of linear motion technology, providing support rails that can be customized based on specific needs. In summary, the Bosch Rexroth SHAFT SUPPORT RAIL WU12-AF1-600 (R105061200) represents a versatile and reliable option for constructing linear guides that demand low-profile designs and high structural integrity. Its compatibility with precision steel shafts and various sizes of linear bushings makes it a flexible solution across different applications requiring accurate linear motion control.
The Bosch Rexroth SHAFT SUPPORT RAIL WU12-AF1-600 (R105061200) is a high-quality component designed for creating precise linear guides, particularly where low height and extra rigidity are required. This aluminum shaft support rail features a flange and bore spacing type, tailored to accommodate linear bushings optimally by ensuring an ideal pressure angle for fitting the shaft. Its robust construction with large fastening bolts provides additional rigidity, making it suitable for applications with open linear bushings. Capable of handling long guides or high loads, the WU12-AF1-600 support rail is an excellent choice when self-supporting shafts are not viable due to potential shaft warping. It allows for unlimited length configurations through the use of interconnecting shafts. The design offers more degrees of freedom in the circumferential direction compared to profiled guide rails, proving advantageous in scenarios where other linear guides may falter because of imprecise substructures. The product comes in standard lengths as indicated in Bosch Rexroth's tables and is made from aluminum, ensuring a lightweight yet durable solution. It is part of a product group that caters to various requirements within the realm of linear motion technology, providing support rails that can be customized based on specific needs. In summary, the Bosch Rexroth SHAFT SUPPORT RAIL WU12-AF1-600 (R105061200) represents a versatile and reliable option for constructing linear guides that demand low-profile designs and high structural integrity. Its compatibility with precision steel shafts and various sizes of linear bushings makes it a flexible solution across different applications requiring accurate linear motion control.
Shaft support rail, 12-AF1-600
Shaft support rail
Shaft diameter d = 12
Version: Aluminum, flange, bore spacing type 1
600 = standard length as per table
Unpacked Weight: 0.58 kg
| Shaft support rail material: Aluminum |
| Combined with linear sets, these shaft support rails can be used to create linear guides with very low height. |
| Extra rigidity. Carefully adapting the support rail to the linear bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity. |
| For use with open linear bushings |
| For long guides or high loads where self-supporting shafts cannot be used due to shaft warping |
| Unlimited length when using interconnecting shafts |
| Support rails for various requirements |
| Additional degrees of freedom in circumferential direction compared to profiled guide rails. |
| For applications where other linear guides tend to warp due to imprecise substructures. |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size O2 thread diameter | M4x12 |
| Size V | 5 |
| Size t | 4.5 |
| Size A | 40 |
| Productgroup ID | 17 |
| Size O1 thread x lead | M4x20 |
| Size H | 22 |
| Angle β | 50 |
| Size E | 29 |
| Bore spacing | Type 1 |
| Length L | 600 |
| Material shaft support rails | Aluminum |
| Shaft diameter d | 12 |
| Size M | 5.8 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Precision steel shafts with shaft support rails |
| Size U1 | 4 |
| Weight | 0.58 |
| Tolerance for L |
Technische Daten
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
|
L |
mm |
600 | ||||||||
|
Tolerance for L |
- 500 µm - 1500 µm |
|||||||||
|
m |
kg |
0.52 | 0.64 | 0.9 | 1.08 | 1.43 | 1.81 | 2.45 | 3.16 | 4.86 |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
L |
Length |
mm |
|
m |
Mass |
kg |

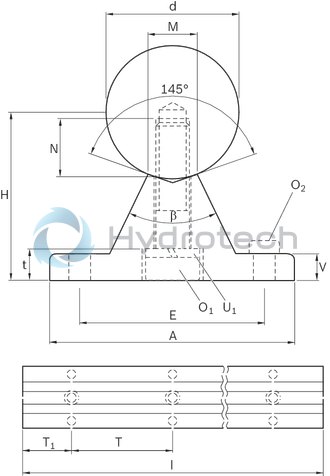

Dimensions
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
|
β |
° |
50 | 46 | |||||||
|
A |
mm |
40 | 45 | 52 | 57 | 69 | 73 | 84 | 94 | 116 |
|
E |
mm |
29 | 33 | 37 | 42 | 51 | 55 | 63 | 72 | 92 |
|
H 1) |
22 mm ±0.01 | 26 mm ±0.01 | 32 mm ±0.01 | 36 mm ±0.01 | 42 mm ±0.01 | 50 mm ±0.01 | 60 mm ±0.01 | 68 mm ±0.01 | 86 mm ±0.01 | |
|
M |
mm |
5.8 | 7 | 8.3 | 10.8 | 11 | 15 | 19 | 25 | 34 |
|
O1 2) |
M4x20 | M5x20 | M6x25 | M8x30 | M10x35 | M10x40 | M12x45 | M14x50 | M16x60 | |
|
O2 3) |
M4x12 | M5x16 | M6x16 | M8x25 | M10x30 | M12x35 | ||||
|
T 4) |
mm |
75 | 100 | 120 | 150 | 200 | 300 | |||
|
t |
mm |
4.5 | 7.6 | 8.6 | 9 | 10 | 9.5 | 11.5 | 13 | 15 |
|
U1 5) |
mm |
4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | |
|
V |
mm |
5 | 6 | 7 | 8 | 9 | 10 | 12 | ||
| 1) | Measured with gauging shaft, nominal dimension d and length about 50 mm. |
| 2) | DIN 6912-8.8 |
| 3) | DIN6912-8.8, only applicable for bolting with steel or cast iron threads. |
| 4) | For transverse loads on the Linear Bushing opening and when approaching maximum load, as well as when dimensional accuracy is strictly required. |
| 5) | DIN 7980, discontinued. Spring washer commercially available. |
